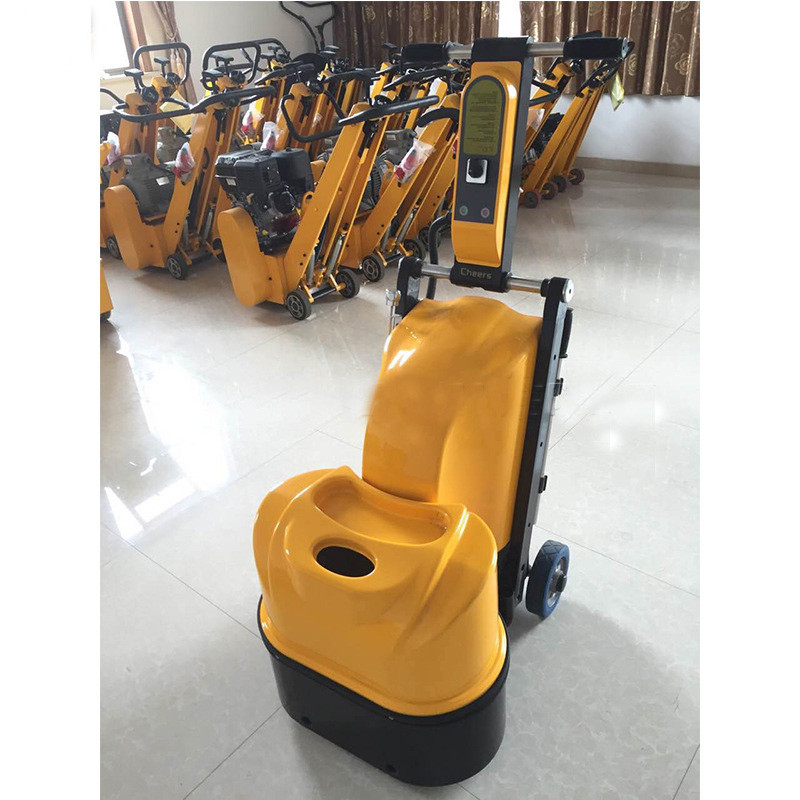

Electrical Handheld Concrete Floor Grinder Machine 220V Road Polishing Machine

Electrical Handheld Concrete Floor Grinder Machine 220V Road Polishing Machine

  • Highlight

    Handheld Concrete Floor Grinder Machine

    ,

    Electrical Concrete Floor Grinder Machine

    ,

    220V Road Polishing Machine

  • Model
    12T-540; 12T-640
  • Voltage
    220V
  • Power
    4/7.5KW(5ph)
  • Frequency
    50/60HZ
  • Disc Quantity
    6/12
  • Weight
    155/290kg
  • After-sales Service
    Tracking Guidance & Service
  • Warranty
    One Year
  • Place of Origin
    China
  • Brand Name
    ZHONGTUO
  • Certification
    CE; ISO
  • Minimum Order Quantity
    1
  • Delivery Time
    7-15Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram

Electrical Handheld Concrete Floor Grinder Machine 220V Road Polishing Machine

Electrical Handheld Concrete Floor Grinder Polishing Machine



Technical parameter of Handheld Concrete Floor Grinder Polishing Machine



Model
12T-540
12T-640
Voltage
220V 220V
Phase
1/3Phrase 1/3Phrase
Power
4KW(5ph) 7.5KW(5ph)
Frequency
50/60HZ 50/60HZ
Working width
540mm 630mm
Disc quantity
6 12
Rotating speed
1000-1800rpm 1000-1800
Water tank volume
36L 60L
Weight
155kg 290kg



Advantages of Handheld Concrete Floor Grinder Polishing Machine


1. The low center of gravity design of the machine greatly improves the operating comfort and stability during high-load construction.
2. With leakage protector, greatly improving the safety of operators.
3. The fuselage is compact and flexible in operation, so it is not limited by the size of the construction site, and there is no dead angle between the fuselage and the wall during construction.

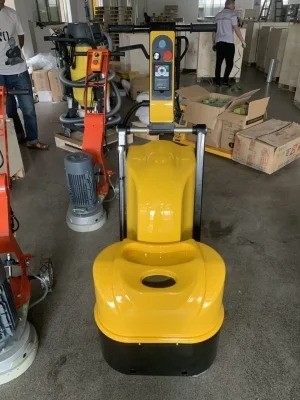

Electrical Handheld Concrete Floor Grinder Machine 220V Road Polishing Machine 0



Handheld Concrete Floor Grinder Polishing Machine Notices


1. If dry grinding, please connect the vacuum cleaner and connect to the suction port to ensure that the suction pipe has no air leakage. If wet grinding, be sure to full fill the floor with water. Do not only wet the floor in order to reduce dust, so that the resistance during the flooding process is abnormal and the motor load is overloaded.
2. Turn on the start switch and run from low speed to high speed to see if the machine is running smoothly. The speed is adjusted according to the ground conditions, and the general condition is 800-1800 rpm. Remember not to polish at low speed, especially on extremely poor ground. Low speed may work, causing the motor to overheat and burn out.



Application fields of Handheld Concrete Floor Grinder Polishing Machine


1. Floor grinding machine is mainly used for leveling, grinding, and polishing cement floors, terrazzo floor, aggregate, granite, etc.
2. Grinding of epoxy intermediate layer; smooth rough surface or trowel marks.
3. Treatment of the coated surface, removal of surface adhesions, and coating defects.
4. Remove the defects on the surface of the mortar and level the raised plaques.
5. Remove paint, polyurethane, epoxy resin, etc. from the floor surface.
6. Cleaning, waxing, and polishing hardened floors.

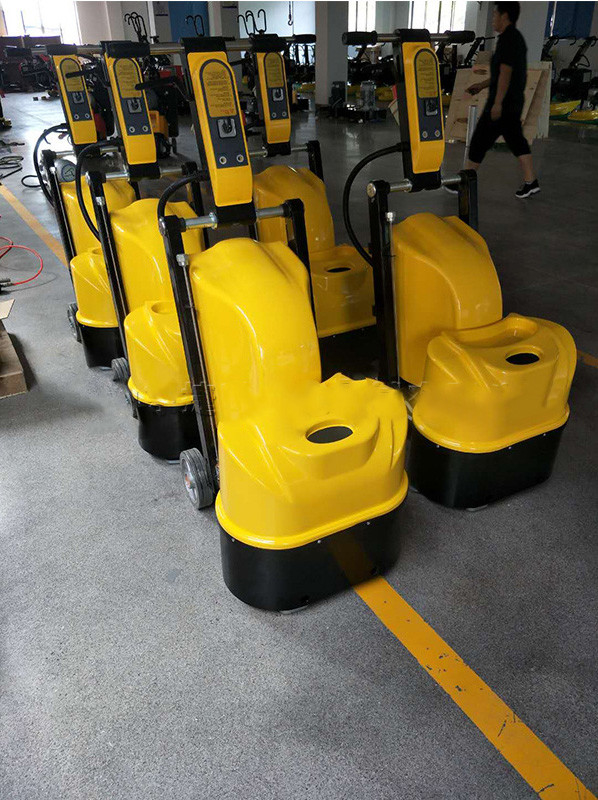

Electrical Handheld Concrete Floor Grinder Machine 220V Road Polishing Machine 1



Our company independently produces floor grinding machines, grinding machines, polishing machines, milling machines, vacuum cleaners, and other floor machinery. At the same time, we provide high-quality accessories sales services to help floor builders complete groundwork projects efficiently, with high quality, and easily.
