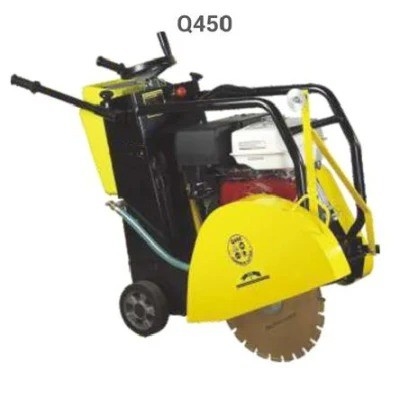

Gasoline Pavement Saw Cutting Machine 8.5kw 10kw Concrete Road Cutter

Application  of Saw Cutting Machine

The road-cutting machine is widely used in the cutting of asphalt, cement pavement, concrete products, stone, etc. in many industries such as municipal, construction, building materials, highways, bridges, tap water, thermal pipelines, airport construction, etc.

The road-cutting machine is specially designed to provide professional cutting for on-site operations such as municipal construction re-election, road maintenance, and construction, airport road cutting, communication engineering burying, floors, and driveways. Different types of saw blades can be replaced during use, which can effectively cut new and old concrete and asphalt pavements and can be loaded with water tanks for motorized cutting operations with water. This machine is mainly used for cutting concrete, cement, floor, and stone pavement; cutting pavement shrinkage joints or damaged pavement, its operation is simple, and it is more convenient in the condition of no power supply.

Advantages  of Saw Cutting Machine

1. Adjustable or the handle is equipped with a shock absorption device, which makes the operation comfortable and simple, which is superior to other models.

2. The reinforced protective steel cover can effectively protect the engine and prolong the service life of the machine.

3. Save maintenance costs: fully enclosed belt protection cover, from dust damage to the belt.

4. The detachable water tank is equipped with an extra large water inlet and quick connection head, making it easier and simpler to add water each time.

In a word, the road cutting machine has the advantages of simple structure, stable cutting, fast speed, straight cutting, and smooth cutting, so it has high efficiency and flexible operation.

The operation method  of Saw Cutting Machine
1. Preparation:
1. Wear safe and qualified earplugs, goggles, helmets, and masks.
2. Check the installation of the machine, whether the rotation direction of the saw blade is consistent with the direction marked on the protective cover, and whether the protective cover is installed.
3. Confirm that the water tank is full of water, confirm that it is full of fuel, and check the oil level before working.
2. Start:
1. Turn off the faucet (through the main gate or the water tank to fill it up).
2. Draw a line where a cut must be made.
3. Adjust the position of the machine so that the lower front guide wheel and saw blade is aligned with the marked line (the saw blade can be seen on the belt side of the box).
4. Start the engine to warm up the engine.
5. Turn on the water supply switch and turn on the speed of the motor to the maximum.
6. Hold the chainsaw, rotate the handwheel, and touch the blade to the ground.
7. Reduce the required cutting depth, remember that each scale corresponds to a depth of 1cm, and reduce slowly to avoid engine stall.
8. Gently move the machine forward to ensure that the front guide wheel and saw blade are always aligned with the marked line.
