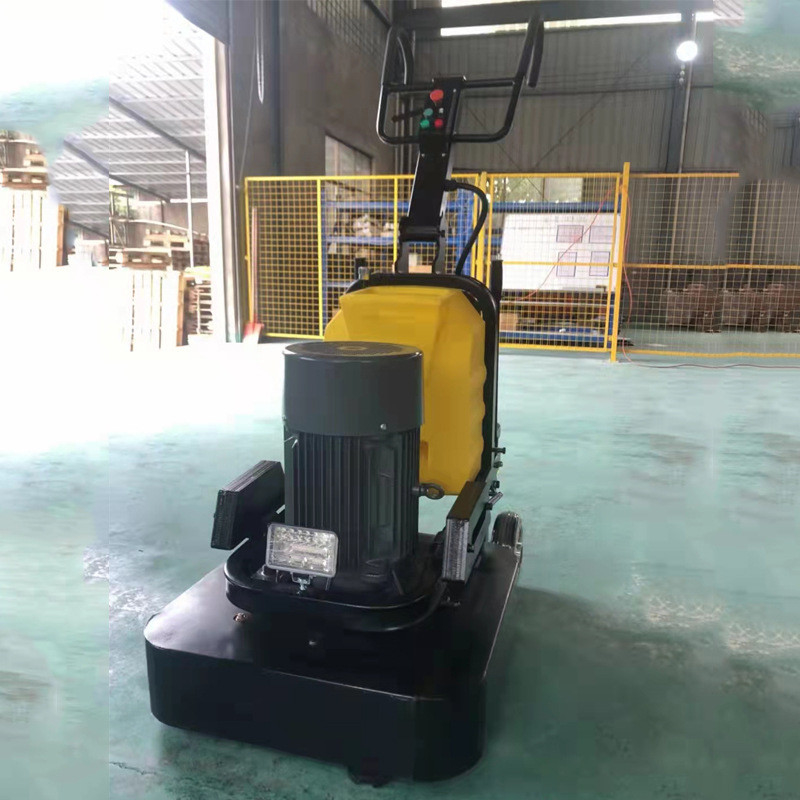

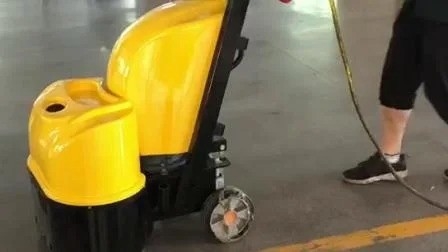

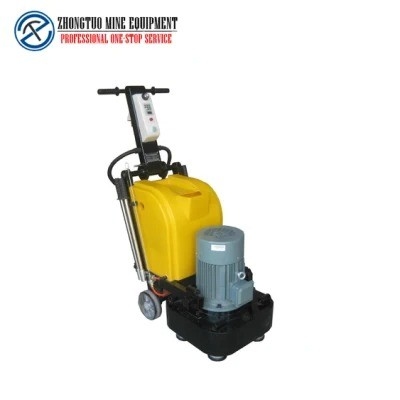

Description of Handheld Concrete Floor Grinder Polishing Machine
The grinder is mainly used for the grinding treatment of large or medium-scale ground. It can effectively grind the concrete surface, epoxy mortar layer, and old epoxy floor. It has the characteristics of lightness, flexibility, and high work efficiency. With a vacuum cleaner power socket, the vacuum cleaner power cord can be directly connected to the grinder, avoiding the trouble of needing 2 power cords when working. Equipped with special grinding discs, it can also be used for ground renovation and polishing. It is ideal equipment for floor engineering treatment.
Technical parameter of Handheld Concrete Floor Grinder Polishing Machine
Model |
12T-540
|

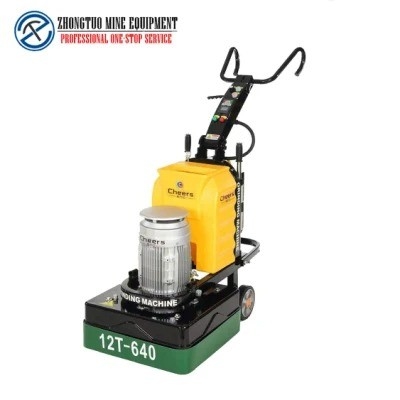

12T-640
|
Voltage
|
220V | 220V |
Phase
|
1/3Phrase | 1/3Phrase |
Power
|
4KW(5ph) | 7.5KW(5ph) |
Frequency
|
50/60HZ | 50/60HZ |
Working width
|
540mm | 630mm |
Disc quantity
|

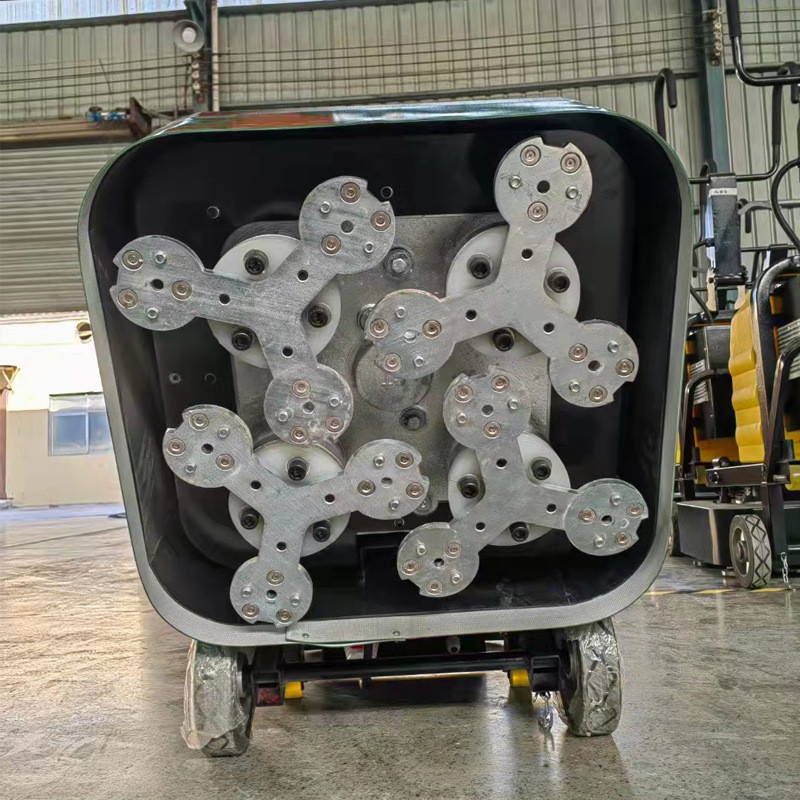

6 | 12 |
Rotating speed
|
1000-1800rpm | 1000-1800 |
Water tank volume
|
36L | 60L |
Weight
|
155kg | 290kg |
Advantages of Handheld Concrete Floor Grinder Polishing Machine
1, When do some edge grinding, shroud sections can be taken off ;
2,180T turn its head right up to the wall , grinding the side of the wall;
3, Foldable handle for easy transportation.
Handheld Concrete Floor Grinder Polishing Machine Notices
1. If dry grinding, please connect the vacuum cleaner and connect to the suction port to ensure that the suction pipe has no air leakage. If wet grinding, be sure to full fill the floor with water. Do not only wet the floor in order to reduce dust, so that the resistance during the flooding process is abnormal and the motor load is overloaded.
2. Turn on the start switch and run from low speed to high speed to see if the machine is running smoothly. The speed is adjusted according to the ground conditions, and the general condition is 800-1800 rpm. Remember not to polish at low speed, especially on extremely poor ground. Low speed may work, causing the motor to overheat and burn out.
Our company independently produces floor grinding machines, grinding machines, polishing machines, milling machines, vacuum cleaners, and other floor machinery. At the same time, we provide high-quality accessories sales services to help floor builders complete groundwork projects efficiently, with high quality, and easily.
