300KN Hydraulic Pile Breaker Machine Pile Head Cutter Foundation Pile Cutter Machine
-
Highlight
300KN Hydraulic Pile Breaker Machine
,CE ISO Pile Head Cutter
,Hydraulic Foundation Pile Cutter Machine
-
Excavator Tonnage20-40T
-
Module Numbers4-18
-
Max. Pressure Of Drill Rod300KN
-
Drill Rod Diameter110mm
-
ColorRed
-
ConditionNew
-
Warranty1 Year
-
After-sales Service ProvidedOnline Support,Video Technical Support
-
Place of OriginChina
-
Brand NameZHONGTUO
-
CertificationCE; ISO
-
Minimum Order Quantity1
-
Delivery Time7-15Days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
300KN Hydraulic Pile Breaker Machine Pile Head Cutter Foundation Pile Cutter Machine
Foundation Pile Cutter Machine Hydraulic Breaker Pile Head Cutter
Description of Breaker Concrete Piles Machine

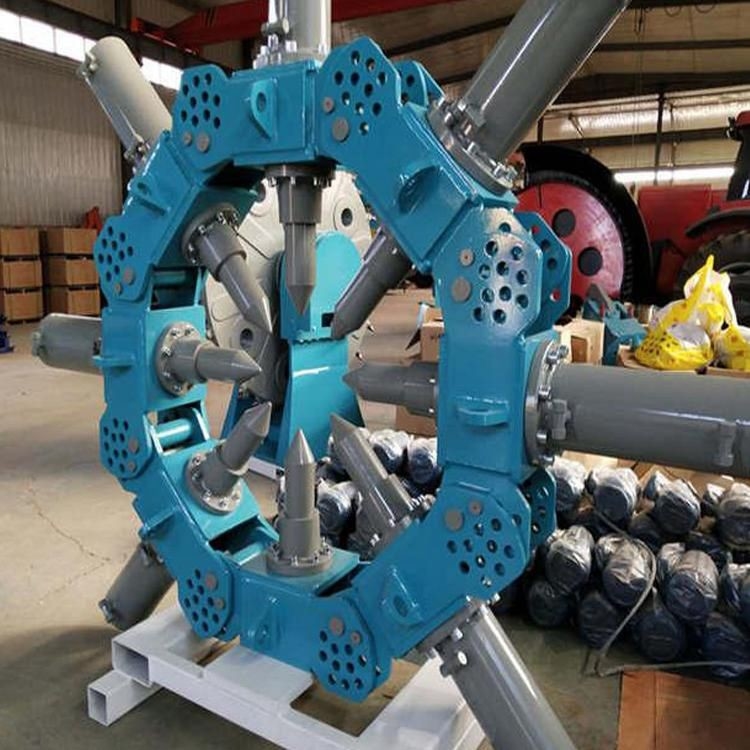

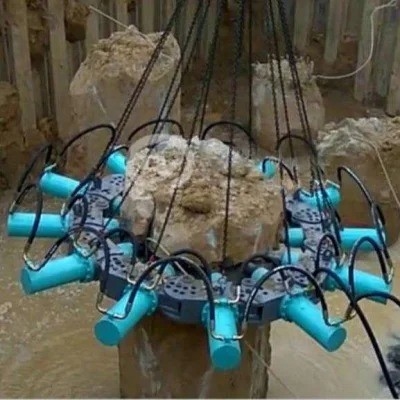

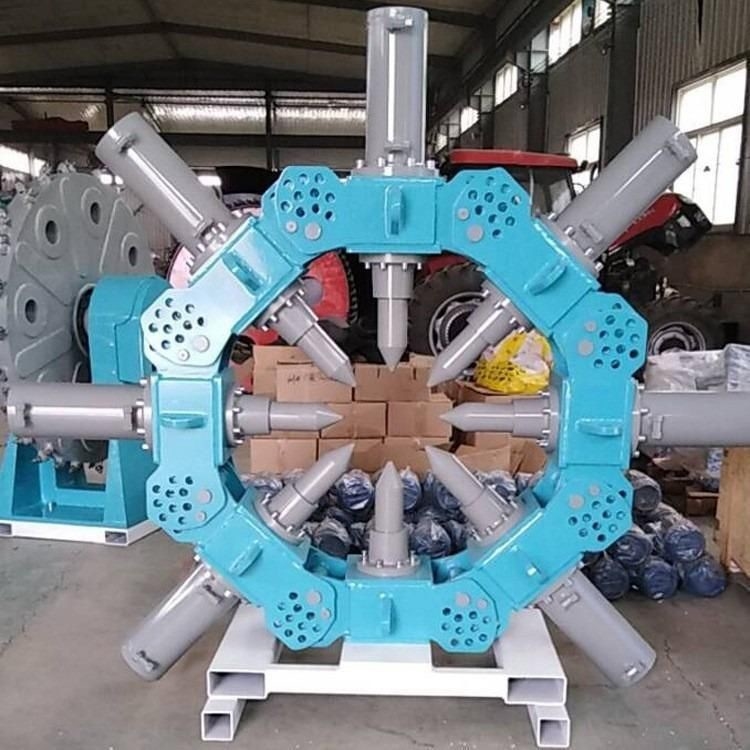

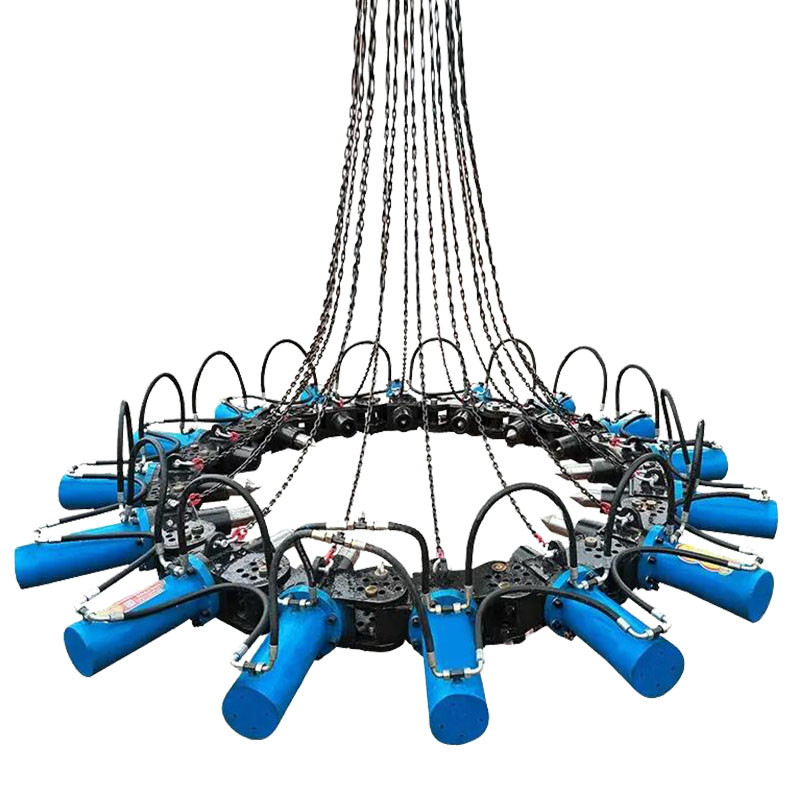

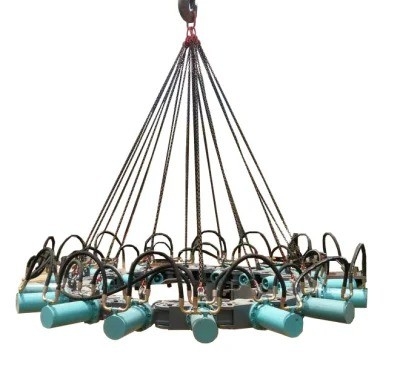

The hydraulic pile breaker is composed of modules, which can be installed and disassembled by itself according to the diameter of the pile head to be broken. It is installed at the front end of the excavator or crane and uses the power of the excavator or hydraulic station to break piles, mainly to break solid cast-in-place piles and solid prefabricated piles. According to the requirements of the construction site, the pipe piles may be broken.
Technical Parameter of Breaker Concrete Piles Machine
| Module Numbers | pc | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | |||||
| Total Weight | KG | 1600 | 2624 | 2952 | 3280 | 3608 | 3936 | 4264 | 4592 | 4920 | 5248 | 5576 | 5904 | |||||
| Pile Diameter | mm | 200-800 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1460-1970 | 1620-2200 | 2200-2360 | 2360-2500 | |||||
| Excavator tonnage | T | 20T-30T | 30T-40T | Hydraulic system/Pump station | ||||||||||||||
| Max. pressure of drill rod | 300KN | Max. pressure of the single cylinder | 20L/min | Auxiliary projects engineering tons | ≤20t | |||||||||||||
| Max. stroke of hydraulic cylinder | 300mm | Drill rod diameter | 110mm | Single module weight | 328KG | |||||||||||||
| Max. pressure of the hydraulic cylinder | 30MPa | Single broken height | ≤500mm | Single module size | 885*780*340 | |||||||||||||
Breaker Concrete Piles Machine
1. High flexibility: Simple modular structure, easy installation, equipped with a different number of modules according to the pile diameter.
2. Powerful: The hydraulic pile breaker can use the power of the excavator or the hydraulic station.
3. Environmental friendly: A whole hydraulic drive, low noise, and static pressure construction can not affect the quality of the pile.
4. Affordable: Low cost of personnel, mainly operated by the excavator driver and need one to supervise.
5. High security: The safety construction personnel is also the excavator driver, he can't directly contact the broken pile.
Routine Maintenance of Pile Cutter Machine
1. External cleaning, once a month, in this way, it is easier to find leaks and hidden troubles.
2. Regularly check the oil filter, and clean or replace it in time if it is found to be dirty.
3. Refuel, when the oil level is lower than the minimum scale line of the oil level gauge, it means that the oil is insufficient, and it is necessary to
Add hydraulic oil to the mailbox, and the new oil must be the same as the last one. Note: Hydraulic oils from different manufacturers cannot be mixed, and hydraulic oils of different specifications from the same manufacturer cannot be mixed. Please avoid water mixing when refueling.
4. If conditions permit, filter hydraulic oil at least once a month.
