18m Diamond Wire Saw Stone Cutting Machine 25kw

Diamond Wire Saw Stone Cutting Machine

Introduction of Diamond Wire Saw Stone Cutting Machine

Hydraulic Diamond Wire Saw Concrete Cutting Machine is used to cut concrete and rock walls and beams in the construction of bridges, roads, and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams, and mining rocks. If you are interested, please let us know which type of diamond wire saw beads you need. We will offer you the best Diamond Wire Saw Machine and a very competitive price.

Technical parameters related to accessories

Product Features of Diamond Wire Saw Stone Cutting Machine

1. It's made of hard materials. The wedges are running stable. Long surviving life of our Diamond Wire Saw Machine.

2. Powerful cutting ability, it can split stone or concrete easily with no cutting depth limitation.

3. High Efficiency, and it's easy and comfortable to operate and maintain.

Electric wire saw machine static cutting, non-destructive cutting technology is also called non-destructive cutting demolition technology, diamond wire saw machine vigorous cutting and demolition is an environmentally friendly, efficient, and safe new static cutting and demolition construction method developed in recent years. An electric reinforced concrete cutting machine (diamond wire saw machine) is specially designed for cutting and separating large reinforced concrete structures.

The main principle of the electric wire saw machine is to drive the steel wire rope with diamond beads at high speed through an electric roller motor (diamond saw wire /Diamond beaded rope) that revolves around the object to be cut, under the action of a certain tension, the object to be cut is ground at high speed, and the abrasive debris and heat generated are taken away by the cooling water, and the purpose of separating the object to be cut is achieved.

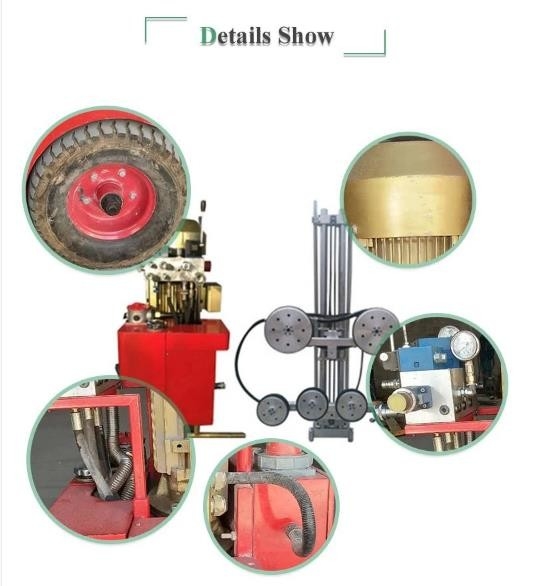

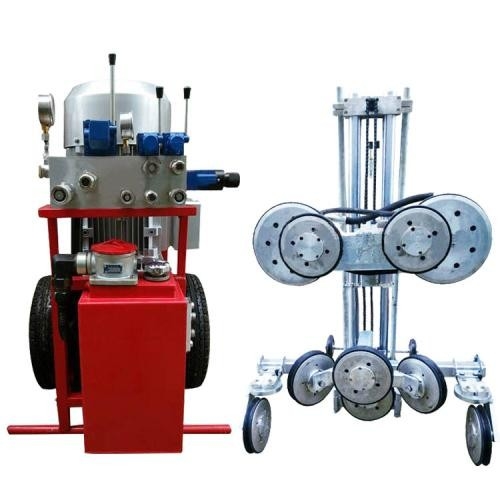

Diamond Wire Saw Machine product composition
2 driving wheels, 5 driven wheels (different brands may be different) Hydraulic motor, rope take-up cylinder
Telescopic saw frame, etc. The bottom of the driven wheel has 2 guide wheels that can rotate 360 degrees. This design plays an important role in guiding the rope when cutting underwater.
