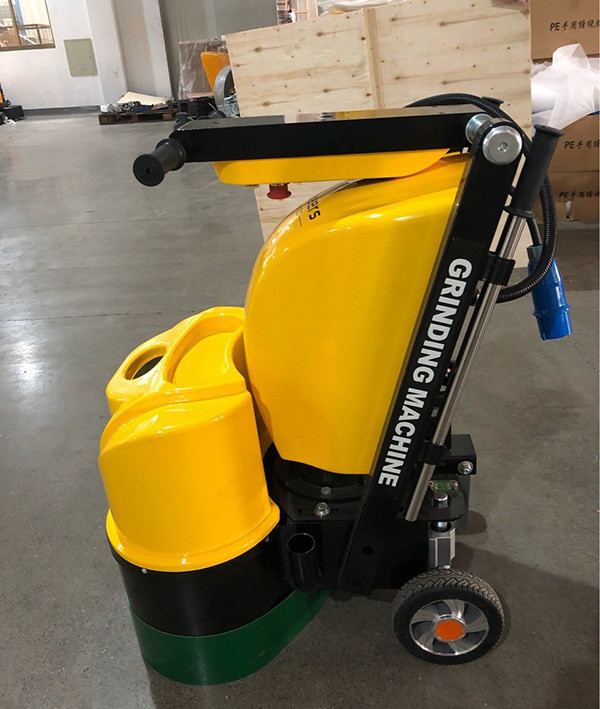

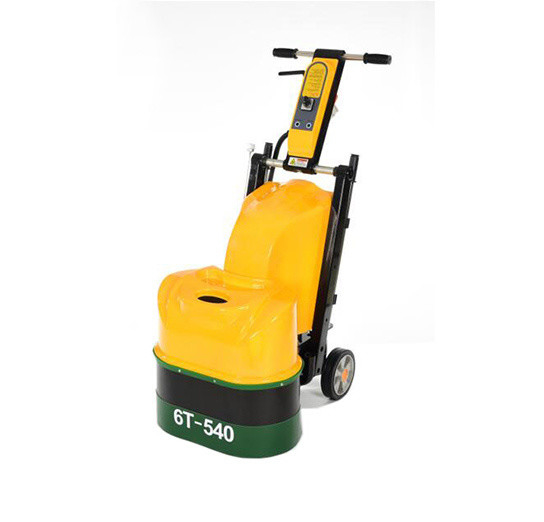

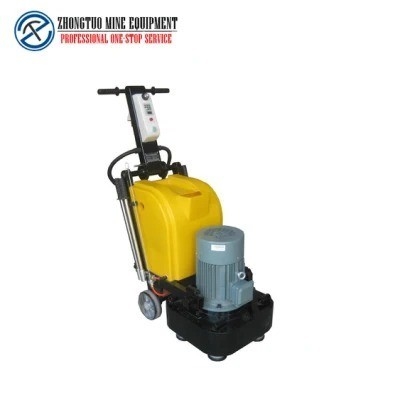

Multifunctional Frequency Conversion Floor Grinder Machine 6T - 540
-
Highlight
Vibration Polishing Planetary Floor Grinder
,Multifunctional Floor Grinder Machine
,6t-540 Floor Grinder Machine
-
ControlArtificial
-
AutomationSemi-automatic
-
PrecisionPrecision
-
ApplicationCement Brick, Concrete Curb, Granite, Marble
-
Type For Grinding MachineDisc Grinding Machine
-
Grinding Machine TypeVibration Polishing Machine
-
Grinding MethodDry Or Wet
-
ConditionNew
-
ApplicableConcrete Floor And Stone
-
ColorYellow
-
Motor Power4kw
-
Transport PackageWooden Case
-
Specification150KG
-
TrademarkZHONGTUO
-
OriginChina
-
Supply Ability1000piecces/Month
-
Shipping CostTo Be Negotiated| Freight Cost Calculator
-
After-sales ServiceVideo Communication
-
Warranty1year
-
TypeStone Grinding And Polishing Machine
-
CertificationCCC, ISO, CE
Multifunctional Frequency Conversion Floor Grinder Machine 6T - 540
Product Description
Company Info.
Basic Info.
Product Description
Description
All-aluminum alloy gearbox and gear-driven planetary head reduce noise and improve surface flatness.
The S-shaped shelf design allows for a larger angle to be seen when changing the grinding disc, and the grounding is more stable.
Advantages
1. The low center of gravity design of the machine greatly improves the operating comfort and stability during high-load construction.
2. With leakage protector, greatly improving the safety of operators.
3. The fuselage is compact and flexible in operation, so it is not limited by the size of the construction site, and there is no dead angle between the fuselage and the wall during construction.
Floor Grinder Parameters
| Model |
12T-540
|
12T-640
|
|
Voltage
|
220V | 220V |
|
Phase
|
1/3Phrase | 1/3Phrase |
|
Power
|
4KW(5ph) | 7.5KW(5ph) |
|
Frequency
|
50/60HZ | 50/60HZ |
|
Working width
|
540mm | 630mm |
|
Disc quantity
|
6 | 12 |
|
Rotating speed
|
1000-1800rpm | 1000-1800 |
|
Water tank volume
|
36L | 60L |
|
Weight
|
155kg | 290 |

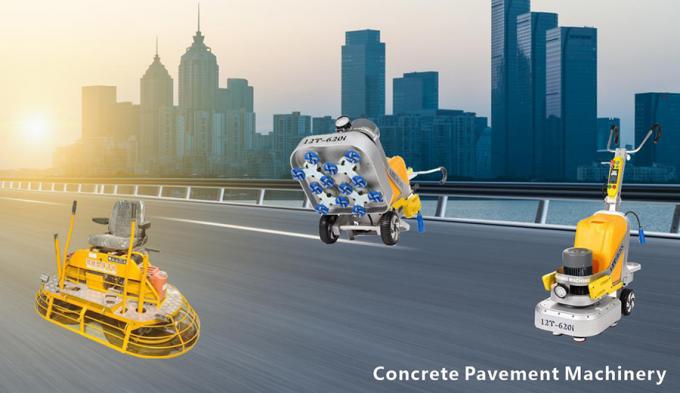

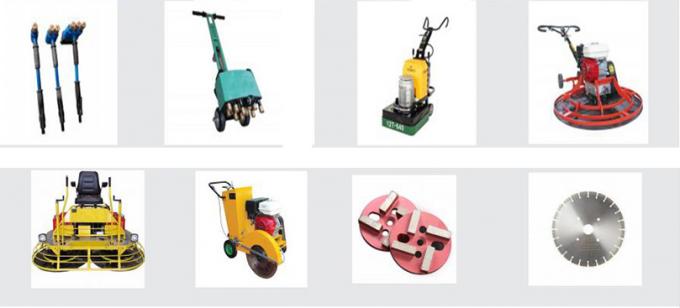

Pavement Equipment
Preparation for floor grinder
1. Must be connected with an electric protector and earth.
2. Cables must not be damaged or damaged. Wires need to use the national standard of 8 square meters and above
3. Adjust the height of the operating handle so that the machine can be pulled down to the best state. Pull the handle down and raise the whole base.
4. Whether the discs of the hand disc are flexible, check whether the fastening bolts are loose, and check whether the gaps of the discs are even.

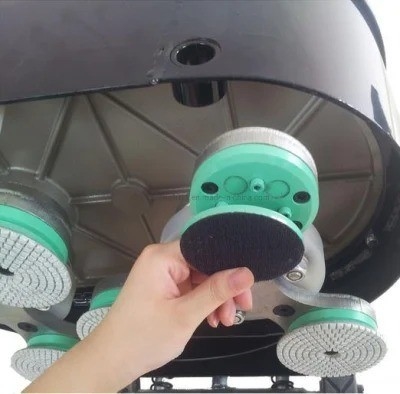

5. The bottom of the machine is magnetic, only need to adsorb the diamond tool or the adapter that absorbs the adhesive resin grinding disc.
6. Check if the machine leaks when lying flat or vertical.
7. Check whether the indicator light ( on the back) is on after power is on, and the panel parameters are displayed normally.
8. If dry grinding, please connect the vacuum cleaner and connect to the suction port to ensure that the suction pipe has no air leakage. If wet grinding, be sure to full fill the floor with water. Do not only wet the floor in order to reduce dust, so that the resistance during the flooding process is abnormal and the motor load is overloaded.
9. Turn on the start switch and run from low speed to high speed to see if the machine is running smoothly. The speed is adjusted according to the ground conditions, and the general condition is 800-1800 rpm. Remember not to polish at low speed, especially on extremely poor ground. Low speed may work, that causing the motor to overheat and burn out.

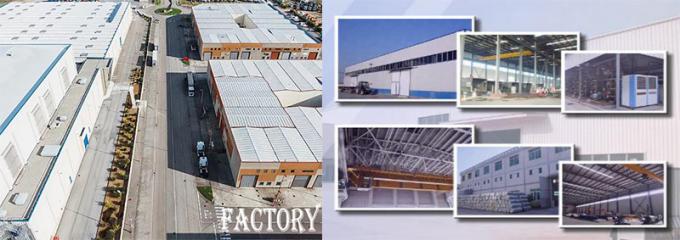

Company Profile
With the improvement of high-quality products and good services, our products are trusted and appreciated by customers from all over the world. At present, our customers are all over Russia, Thailand, Romania, Bulgaria, Albania, Colombia, Brazil, Peru, Uruguay, Saudi Arabia, Kuwait, United Arab Emirates, Oman, Turkey, Israel, Kazakhstan, India, and many other countries.
About Certifications:
Packing and Shipping:
Our Team
FAQ:Q1: Whether the rig is used for rock holes or soil holes?
A1: Equipped with different drill bits according to the application object. Rock drilling rigs are equipped with round steel drill impact hammers and rock drill bits. The soil drilling rigs require a twist drill pipe and a three-blade drill bit.
Q2: How much tonnage can a bridge jack lift??
A2: The range is from 50 to 1000 tons, depending on the application needs we have the right choice for you.
Q3: How many meters is the connection between the jack and the oil pump?
A3: The factory standard is two meters. If you need longer, we will make it for you.
Q4: What is the difference between the hydraulic oil pump?
A4: For the tension jack, it is 50 MPa 3 kW oil pump and 60 MPa 4 kW oil pump.
Q5: What kind of packages does a set of anchors have?
A5: Anchor ring, clip, anchor pad, spiral rib.
Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)
Q7: How long is the machine warranty?
A7: One year for the machine and provide technical support according to your needs.
Q8: How long will it take to arrange production?
A8: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.
Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.
Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.
