Portable Concrete Breaker Hammer Handheld Hydraulic Crushing Tools
-
Highlight
Portable Concrete Breaker Hammer
,Manual Hydraulic Concrete Breaker
,Handheld Concrete Breaker Hammer
-
UsageConcrete Road
-
TypeHydraulic Breakers
-
Max. Pressure155bar
-
Oil Flow20-26lpm
-
Impact Rate1500-200bpm
-
Weight20kg
-
Transport PackageWooden Box
-
Specification790 * 215 * 180
-
TrademarkZhongtuo
-
OriginChina
-
Supply Ability60000pieces/Month
-
Shipping CostTo Be Negotiated| Freight Cost Calculator
-
CertificationRoHS, ISO, CE
-
ConditionNew
-
Automatic GradeManual
-
SamplesUS$ 3000/Piece 1 Piece(Min.Order) |
Portable Concrete Breaker Hammer Handheld Hydraulic Crushing Tools
Product Description
Company Info.
Basic Info.
Usage
Concrete Road
Type
Hydraulic Breakers
Max. Pressure
155bar
Oil Flow
20-26lpm
Impact Rate
1500-200bpm
Weight
20kg
Transport Package
Wooden Box
Specification
790 * 215 * 180
Trademark
zhongtuo
Origin
China
Production Capacity
60000pieces/Month
Product Description

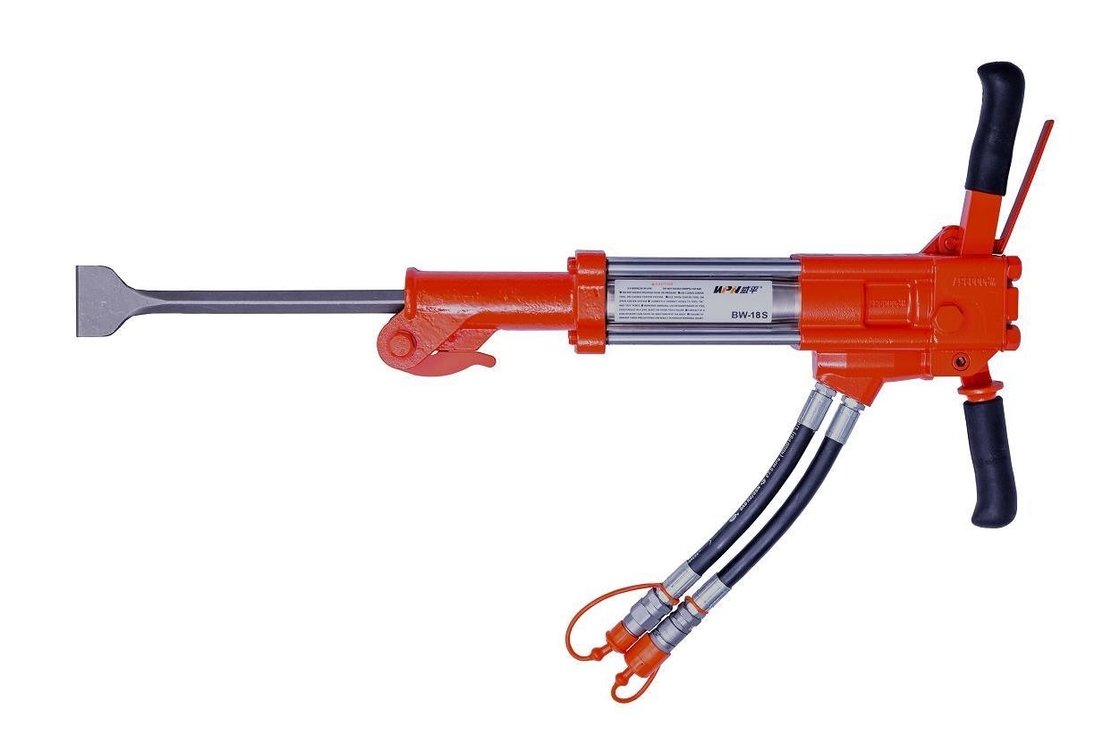

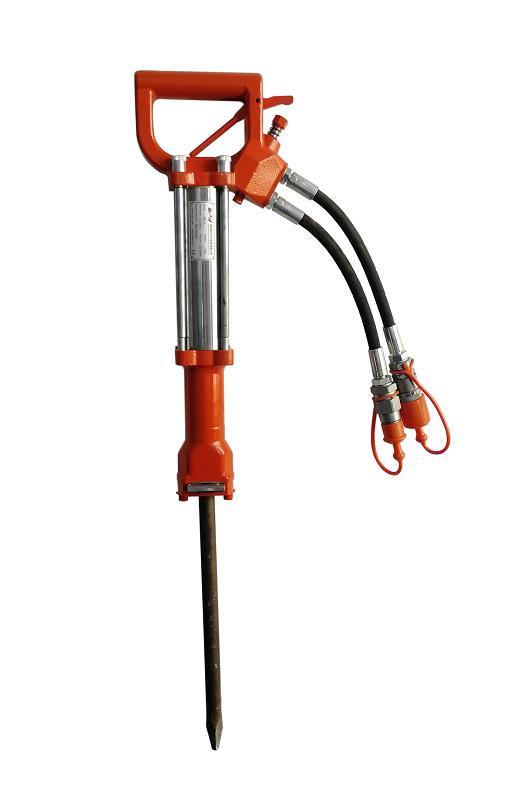

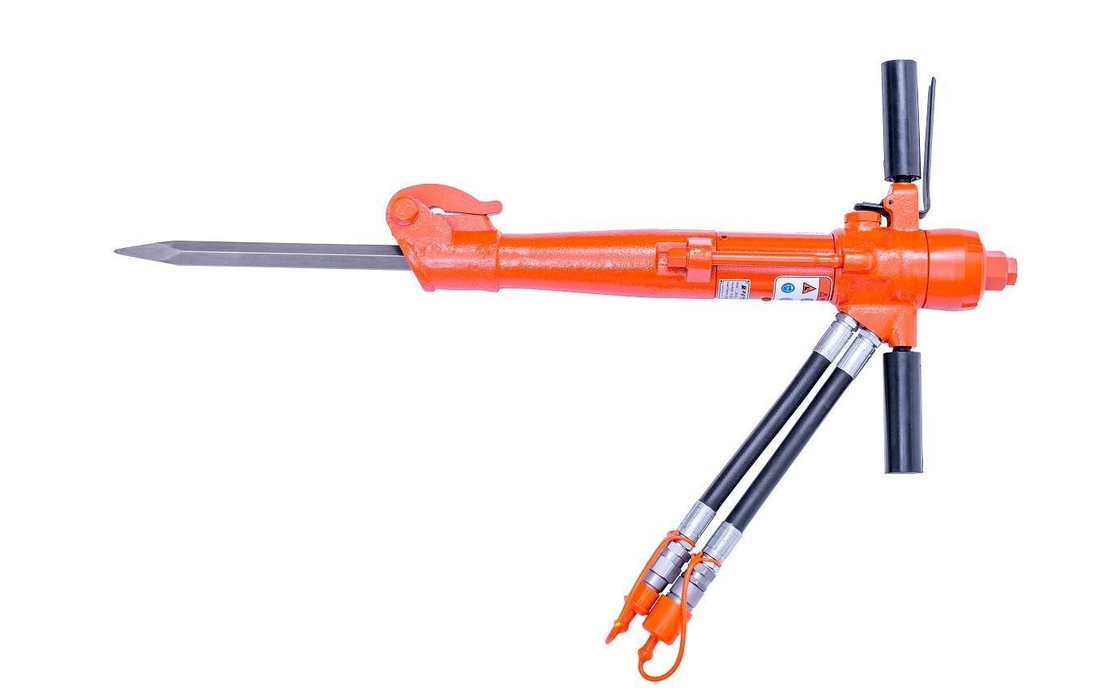

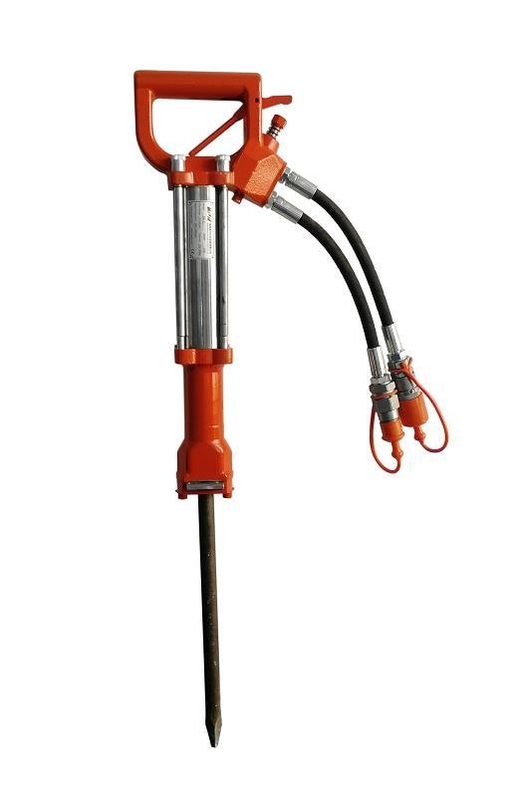

Hydraulic hammer breaker
Feature:
1. It is a more convenient and safer operation
2. Anti-slip switch control makes operation more precise
3. Two-way hydraulic lock is used internally, with a self-locking function.
4. The expansion head of the expander is of flat design and can be wedged into a very narrow gap.
5. The special treatment on the surface of the expansion head can play a non-slip effect, making the rescue environment safer.
Technical Parameters
Weight:20KG
Size:640*450*110
Oil flow:20-30lpm
Max. pressure:155bar
Impact rate:1500-2000bpm
.
Our Company Information
We have been focusing on high-quality mechanical equipment and construction products for more than 20 years. Especially have rich experience in mining equipment, main products include:
Ultra Large Rock Splitter
Submersible Drilling Rig
Spraying Machine
Grinding Machine
About Our Factory
About the products
Packing and Shipping:
Purchase Process
About the Quality
Others
Why did you choose us?
1. We are a real factory offering products and providing free technical advice.
2. Company in business for many years and served Over 50 countries' customers.
3. All machines with CE, ISO, and SGS certificates. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
Feature:
1. It is a more convenient and safer operation
2. Anti-slip switch control makes operation more precise
3. Two-way hydraulic lock is used internally, with a self-locking function.
4. The expansion head of the expander is of flat design and can be wedged into a very narrow gap.
5. The special treatment on the surface of the expansion head can play a non-slip effect, making the rescue environment safer.
Technical Parameters
Weight:20KG
Size:640*450*110
Oil flow:20-30lpm
Max. pressure:155bar
Impact rate:1500-2000bpm
PROBLEM CAUSE REMEDY
The tool does not run |
Power unit not functioning | Check the power unit for power flow and pressure (15-24 lpm 105-140 bar) |
| Couplers or hoses blocked | Remove restriction | |
| Pressure and return line hoses reversed at ports | Be sure hoses are connected to their proper ports |
|
| Mechanical failure of piston or automatic valve | Disassemble breaker and inspect for damaged parts | |
The tool does not hit effectively |
Power unit not functioning | Check power unit for power flow and pressure (15-24 lpm 105-140 bar) |
| Couplers or hoses blocked | Remove restriction | |
| Fluid too hot (above 140 °F/60 °C) | Provide cooler to maintain proper fluid temperature (130 °F/55 °C) |
|
| Low accumulator charge (pressure hose will pulse more than normal) |
Recharge accumulator. Replace diaphragm if charge loss continues |
|
Tool operates slow |
Low gpm supply from power unit | Check power unit for proper flow (7-9 gpm/26-34 lpm) or 5-6 gpm /18-22 lpm |
| High back-pressure | Check hydraulic system for excessive backpressure (over 200 psi/14 bar) |
|
| Couplers or hoses blocked | Remove restriction |
.
Our Company Information
We have been focusing on high-quality mechanical equipment and construction products for more than 20 years. Especially have rich experience in mining equipment, main products include:
Ultra Large Rock Splitter
Submersible Drilling Rig
Spraying Machine
Grinding Machine

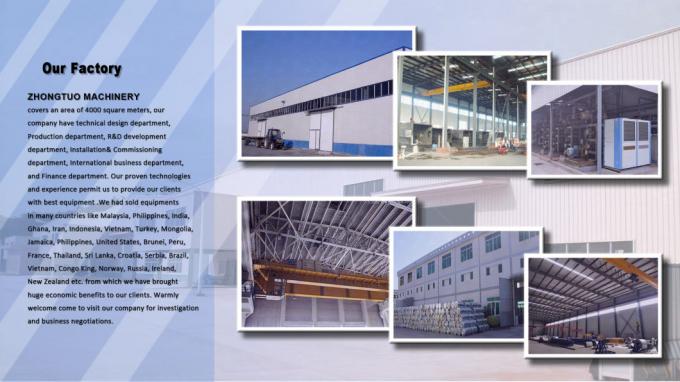

About Our Factory
About the products
Packing and Shipping:

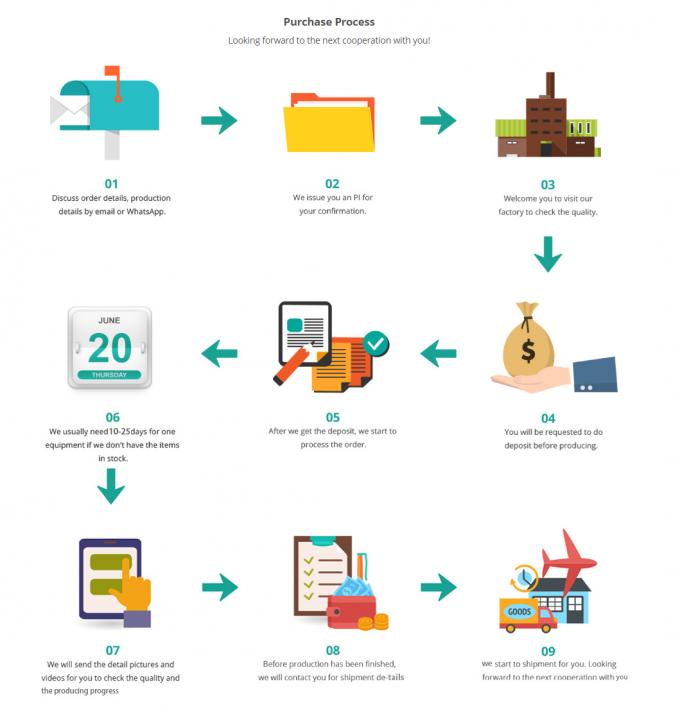

Purchase Process

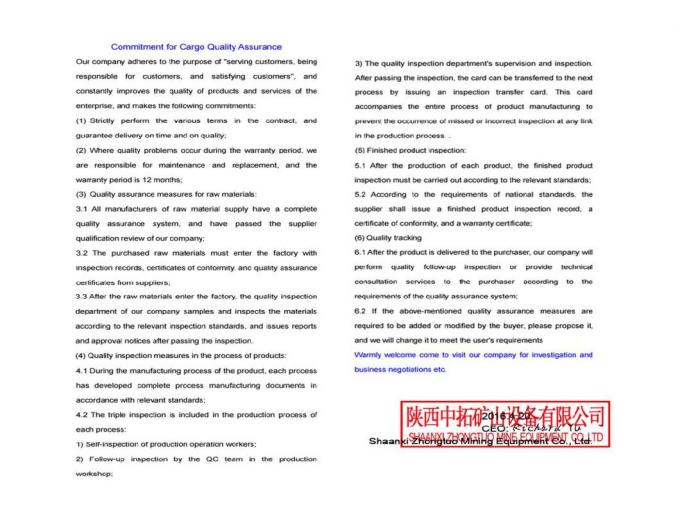

About the Quality
