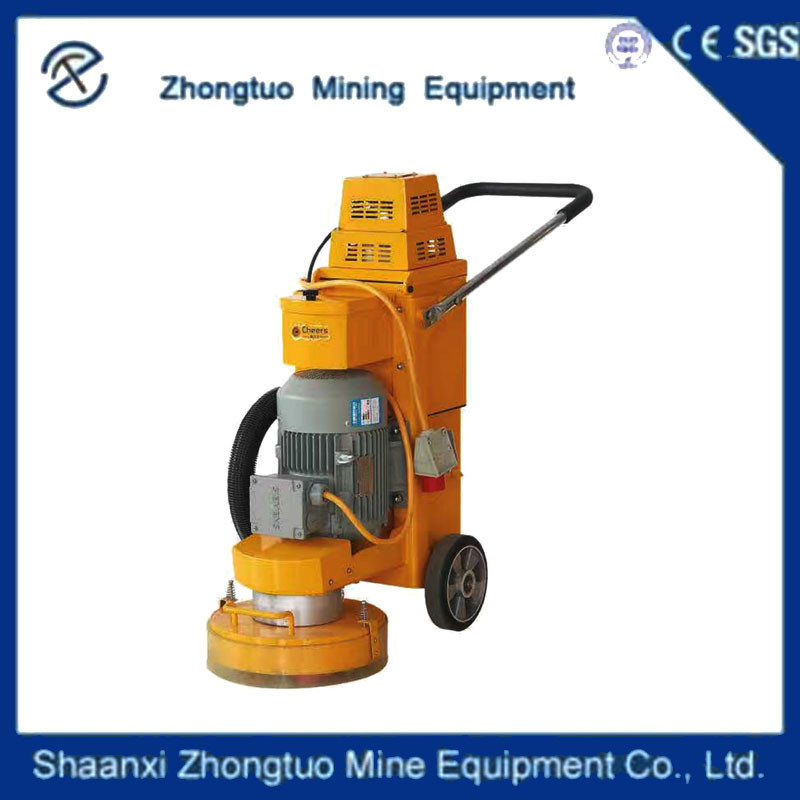

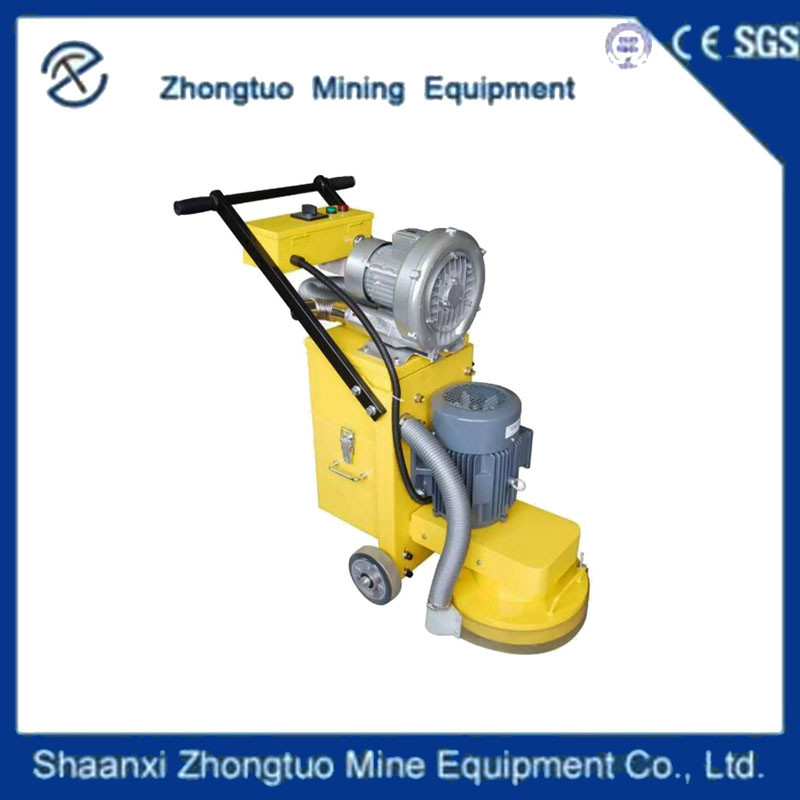

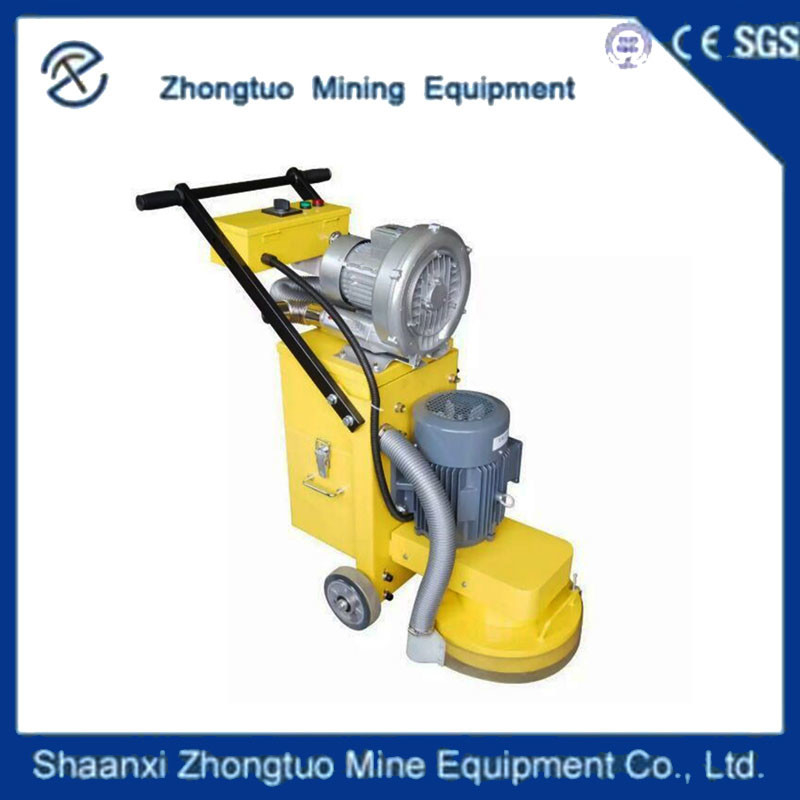

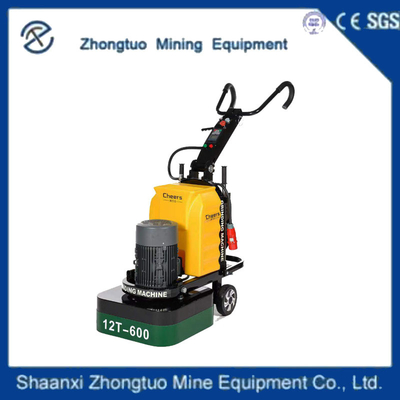

50Hz Floor Concrete Grinder Marble Edge Polishing Grinding Machine

Introducing the Floor Concrete Grinder Marble Edge Polishing Grinding Machine - the ultimate solution to all your floor polishing needs! This versatile machine features a plethora of functions, including floor grinding, concrete grinding, floor polishing, concrete milling, surface grinding, and more. It is an all-in-one machine that can take care of your stone processing needs with ease.

One of the most notable features of this machine is the all-aluminum alloy gearbox and gear-driven planetary head, which significantly reduces noise and improves surface flatness. The S-shaped shelf design enables a larger angle to be seen when changing the grinding disc, providing more stability during grounding. Additionally, the power assist system makes it easy to move and transport the machine, saving you effort and time.

Proper preparation is essential to ensure optimal performance of the planetary floor grinder. It must be connected with an electric protector and grounded to avoid any electrical hazards. The cables must not be damaged and should conform to the national standard of 8 square meters and above. The operating handle should be adjusted to the appropriate height to ensure ease of use.

In summary, the Floor Concrete Grinder Marble Edge Polishing Grinding Machine is a powerful and versatile machine that can cater to all your floor polishing needs. Its unique features and ease of use make it an excellent investment for those who demand professional results. Get yours today and experience the difference a high-quality planetary floor grinder can make!

Description of Planetary Floor grinder
All-aluminum alloy gearbox and gear-driven planetary head reduce noise and improve surface flatness.
The S-shaped shelf design allows for a larger angle to be seen when changing the grinding disc, and the grounding is more stable.
It can be easily moved with a power assist system, is easy to carry, and save manpower.

Preparation for planetary floor grinder

1. Must be connected with an electric protector and earth.

2. Cables must not be damaged or damaged. Wires need to use national standard 8 square meters and above

3. Adjust the height of the operating handle so that the machine can be pulled down to the best state. Pull the handle down and raise the whole base.

4. Whether the discs of the hand disc are flexible, check whether the fastening bolts are loose, and check whether the gaps of the discs are even.

5. The bottom of the machine is magnetic, only need to adsorb the diamond tool or the adapter that absorbs the adhesive resin grinding disc.

6. Check if the machine leaks when lying flat or vertical.

7. Check whether the indicator light ( on the back) is on after powering on and whether the panel parameters are displayed normally.

8. If dry grinding, please connect the vacuum cleaner and connect to the suction port to ensure that the suction pipe has no air leakage. If wet grinding, be sure to full fill the floor with water. Do not only wet the floor to reduce dust, so that the resistance during the flooding process is abnormal and the motor load is overloaded.

9. Turn on the start switch and run from low speed to high speed to see if the machine is running smoothly. The speed is adjusted according to the ground conditions, and the general condition is 800-1800 rpm. Remember not to polish at low speed, especially on extremely poor ground. Low speed may work, but that causes the motor to overheat and burn out.

Parameters of Planetary Floor grinder

FAQ:
Q1: Are you a factory or trade company?
A1: We are a factory. And we have ourselves trading company.

Q2: What is the exact address of your factory?
A2: No.27, Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.

Q3: Warranty terms of your machine?
A3: One-year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts for the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, and 3phase. The voltage can be customized according to your equipment.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long will it take to arrange production?
A7: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with a professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.

Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc
