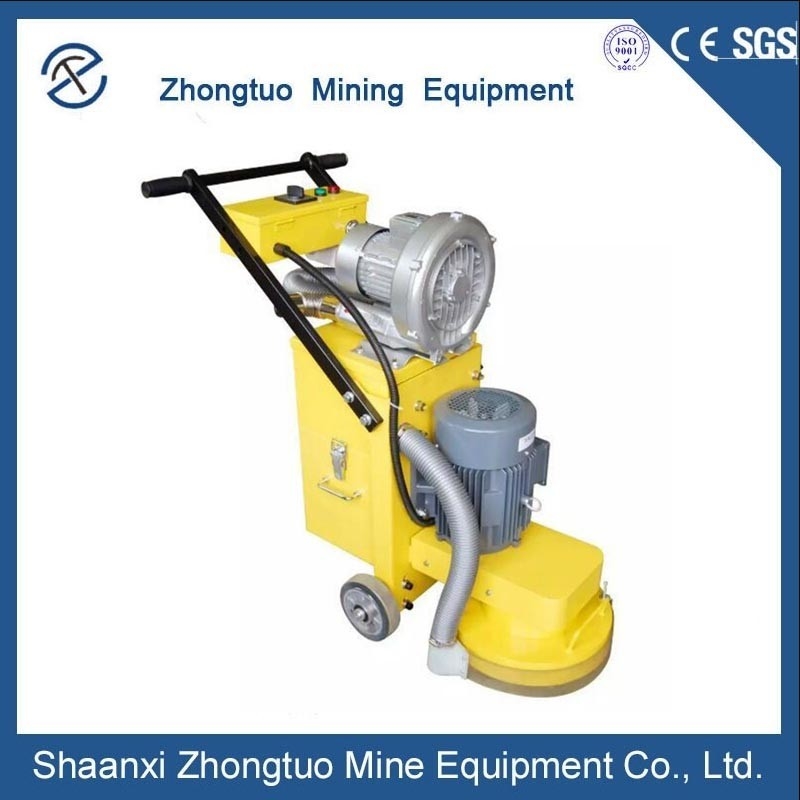

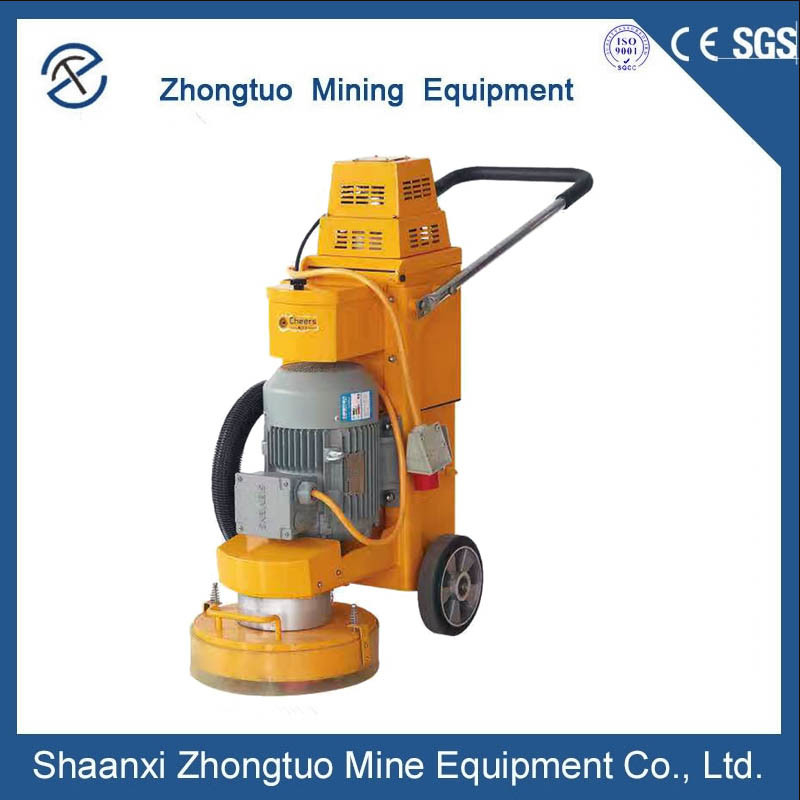

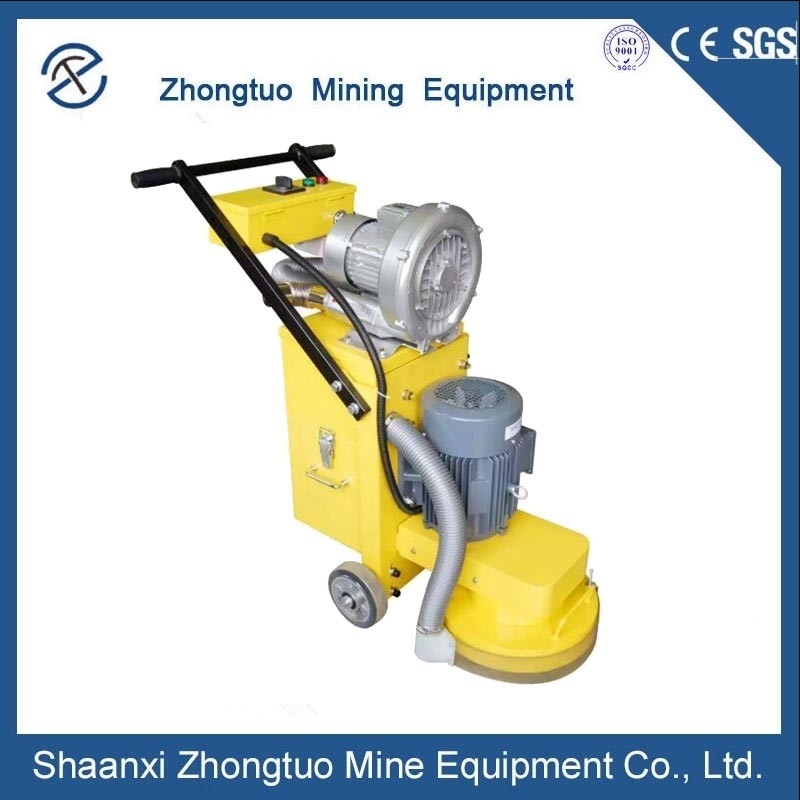

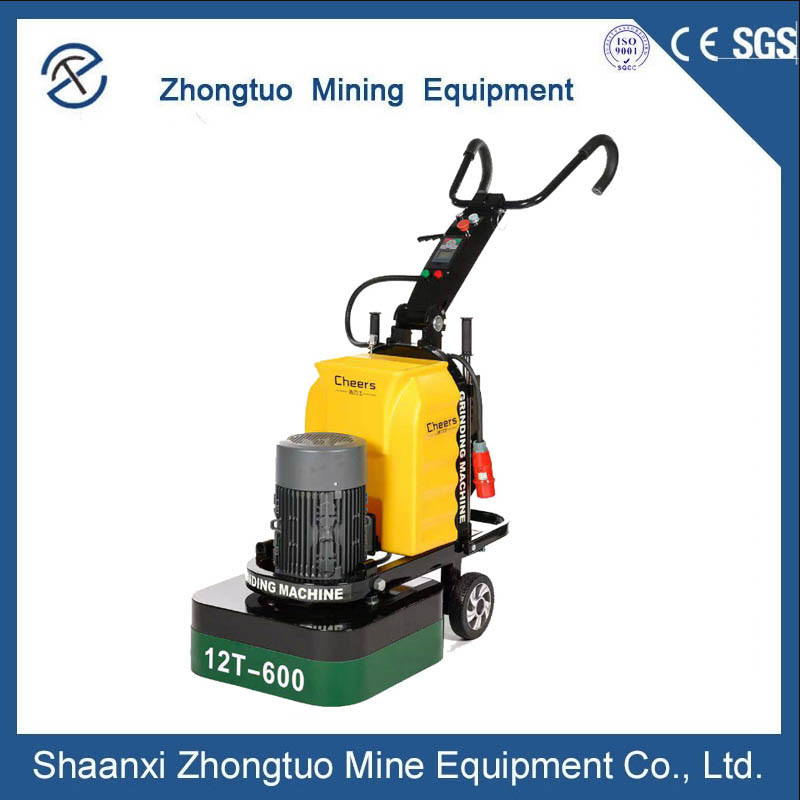

Concrete Floor Grinder Floor Polishing Machine Assist System / Grinding Disc

Product: Concrete Floor Grinder Floor Polishing Machine is a high-quality and reliable machine designed to enhance surface flatness and reduce noise. It features an all-aluminum alloy gearbox and gear-driven planetary head, ensuring improved performance. The innovative S-shaped shelf design allows for easy angle adjustment when changing the grinding disc, resulting in more stable grounding. With its power assist system, this machine can be easily moved and carried, significantly saving manpower.

To ensure the proper functioning of the planetary floor grinder, it is essential to follow these preparation steps. Firstly, it must be connected to an electric protector and grounded for safety. The cables should be inspected for any damage, and national standard 8 square meters or above wires should be used. Adjusting the height of the operating handle is crucial to achieve the optimal state of the machine. By pulling the handle down, the entire base can be raised efficiently.

Furthermore, it is vital to check the flexibility of the hand disc's discs and ensure that the fastening bolts are secure. Additionally, the gaps between the discs should be evenly distributed. The bottom of the machine is magnetic, allowing for easy adsorption of the diamond tool or the adapter that absorbs the adhesive resin grinding disc.

Lastly, it is essential to inspect the machine for any potential leaks, ensuring its proper functioning. With its outstanding features and meticulous preparation requirements, the Concrete Floor Grinder Floor Polishing Machine is the ideal choice for professionals seeking a reliable and efficient solution for their polishing and grinding needs.

Description of Planetary Floor grinder
All-aluminum alloy gearbox and gear-driven planetary head reduce noise and improve surface flatness.
The S-shaped shelf design allows for a larger angle to be seen when changing the grinding disc, and the grounding is more stable.
It can be easily moved with a power assist system, is easy to carry, and save manpower.

Preparation for planetary floor grinder

1. Must be connected with an electric protector and earth.

2. Cables must not be damaged or damaged. Wires need to use national standard 8 square meters and above

3. Adjust the height of the operating handle so that the machine can be pulled down to the best state. Pull the handle down and raise the whole base.

4. Whether the discs of the hand disc are flexible, check whether the fastening bolts are loose, and check whether the gaps of the discs are even.

5. The bottom of the machine is magnetic, only need to adsorb the diamond tool or the adapter that absorbs the adhesive resin grinding disc.

6. Check if the machine leaks when lying flat or vertical.

7. Check whether the indicator light ( on the back) is on after powering on and whether the panel parameters are displayed normally.

8. If dry grinding, please connect the vacuum cleaner and connect to the suction port to ensure that the suction pipe has no air leakage. If wet grinding, be sure to full fill the floor with water. Do not only wet the floor to reduce dust, so that the resistance during the flooding process is abnormal and the motor load is overloaded.

9. Turn on the start switch and run from low speed to high speed to see if the machine is running smoothly. The speed is adjusted according to the ground conditions, and the general condition is 800-1800 rpm. Remember not to polish at low speed, especially on extremely poor ground. Low speed may work, but that causes the motor to overheat and burn out.

Parameters of Planetary Floor grinder

250H is outdoor use grinder, equipped with Honda gasolineengine, no power required.Direct connect to the motor, it is easy to operate and durable.popular in Japan and Korea

​
