Lockable Handle Corrosion-Resistant Manual Pump Multiple Models Of Tool Oil Pump
-
Highlight
Lockable Handle Manual Pump
,Corrosion-Resistant Manual Pump
-
Safety ValveContain
-
Transport PackageWooden Case
-
Power SourceNone
-
Working Pressure100~300MPa
-
Place of OriginChina
-
Brand NameZHONGTUO
-
CertificationCE ISO
-
Minimum Order Quantity1
-
Pricenegotiated
-
Packaging DetailsWooden Cases
-
Delivery Time7-15 Days
-
Supply Ability10000 set/month

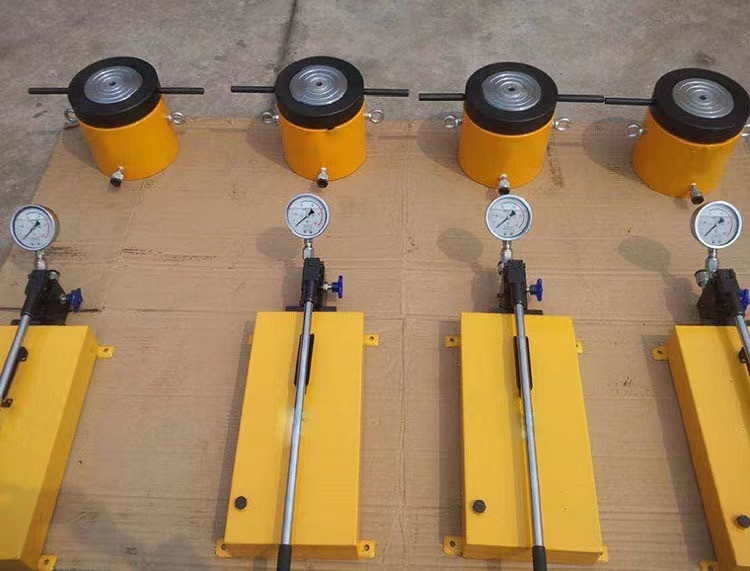

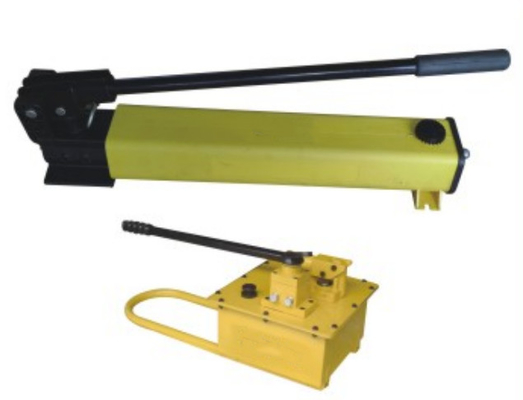

Lockable Handle Corrosion-Resistant Manual Pump Multiple Models Of Tool Oil Pump
1. The lockable handle design is lightweight, easy to carry, and durable
2. Reinforced engineering plastic fuel tank and aluminum with nylon encapsulation
3. The pump body has strong corrosion resistance
4. The fuel tank has a large capacity and can be used for various models of oil cylinders and tools
5 built-in safety valves for overload protection
6 special handles are both labor-saving and ensure operator safety
The function of a manual hydraulic pump is to convert the mechanical energy of power machines (such as electric motors and internal combustion engines) into the pressure energy of liquids.
Working principle: The cam is driven by an electric motor to rotate. When the cam pushes the plunger upwards, the sealing volume formed between the plunger and the cylinder body decreases, and the oil is squeezed out of the sealing volume and discharged to the desired location through the one-way valve. When the cam rotates to the descending part of the curve, the spring forces the plunger downwards, forming a certain degree of vacuum, and the oil in the tank enters the sealed volume under the action of atmospheric pressure. The cam continuously raises and lowers the plunger, and the sealing volume periodically decreases and increases, causing the pump to continuously suction and discharge oil.
Existing Overview
| available Oil capacity cm³ |
Type | Model |
额定压力 Rated pressure |
液压油阶段油量 Hydraulic oil stage oil volume |
外形尺寸 Size |
接口 螺纹 NPT E |
重量 | |||||
| Phase 1 | Phase 2 | Phase 1 | Phase 2 | A | B | C | D | kg | ||||
| 350 | Single acting | P-142 | 13.8 | 700 | 7.0 | 1.0 | 310 | 343 | 127 | 137 | 3/8 | 5.5 |
| 901 | P-392 | 13.0 | 700 | 11.26 | 2.47 | 533 | 522 | 157 | 120 | 3/8 | 4.1 | |
| 2200 | P-80 | 25.0 | 700 | 16.22 | 2.46 | 545 | 600 | 170 | 148 | 3/8 | 10.9 | |
| 4080 | P-801 | 25.0 | 700 | 16.22 | 2.46 | 659 | 782 | 174 | 146 | 3/8 | 14.1 | |
| 7423 | P-462 | 25.0 | 700 | 16.22 | 2.46 | 650 | 671 | 308 | 280 | 3/8 | 26.2 | |
| 10000 | P-462x1 | 25.0 | 700 | 16.22 | 2.46 | 650 | 671 | 308 | 280 | 3/8 | 35.8 | |
| 2200 | Double action | P-84 | 25.0 | 700 | 16.22 | 2.46 | 545 | 600 | 170 | 148 | 3/8 | 10.9 |
| 408 | P-841 | 25.0 | 700 | 16.22 | 2.46 | 675 | 752 | 174 | 146 | 3/8 | 14.9 | |
| 7423 | P-464 | 25.0 | 700 | 16.22 | 2.46 | 650 | 671 | 308 | 280 | 3/8 | 26.2 | |
| 10000 | P-464x1 | 25.0 | 700 | 16.22 | 2.46 | 650 | 671 | 308 | 280 | 3/8 | 36.8 | |
Shaanxi Zhongtuo Mining Equipment Company was founded in 2005 in Xi'an, Shaanxi Province, It is a foreign trade company specializing in the research, development, and sales of machinery and equipment in the fields of mining, bridges, pavements, and tunnels.
At present, our customers are all over Russia, Thailand, Romania, Bulgaria, Albania, Colombia, Brazil, Peru, Uruguay, Saudi Arabia, Kuwait, United Arab Emirates, Oman, Turkey, Israel, Kazakhstan, India, and many other countries.
