Highlight
Strand Jacks Lifting System
,Hydraulic Strand Jacks
,Synchronous Strand Jacks
-
Place of OriginChina
-
Brand NameZT
-
CertificationCE ISO
-
Model NumberZT-300
-
Minimum Order Quantity1PC
-
Pricenegotiable
-
Packaging DetailsWooden Case
-
Delivery Time7-15 Work Days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability100pcs/month

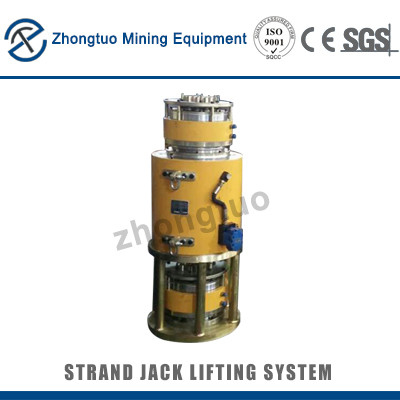

Hydraulic Synchronous Lifting System Strand Jacks Customizable OEM
Hydraulic Synchronous Lifting System Strand Jacks
Hydraulic Synchronous Lifting System Strand Jacks include 50Ton 100Ton 150Ton 250 ton,300tons,350tons,400tons,450tons, 500Ton,650tons and so on.
Synchronous lifting hydraulic system for the computer control of the overall lifting and lowering, technology using flexible steel strand bearing, lifting steel strand hydraulic jack cluster, computer control, hydraulic synchronous lifting principle, combined with modern construction technology, mainly used to lift heavy objects.
Parameters
| model | Safe working load |
MPA |
Cylinder stroke mm |
mm |
Jack weight KG |
KG |
boost speed m/h |
Number of strands | Strand diameter mm |
| ZT-TSD15 | 15 | 31.5 | 500 | 1846 | 148 | 3.2 | 0-25 | 1 | 18 |
| ZT-TSD45 | 45 | 31.5 | 500 | 1726 | 600 | 28 | 0-25 | 3 | 18 |
| ZT-TSD60 | 60 | 31.5 | 500 | 1726 | 630 | 32 | 0-25 | 4 | 18 |
| ZT-TSD100 | 100 | 31.5 | 500 | 1790 | 930 | 46 | 70-25 | 7 | 18 |
| ZT-TSD180 | 180 | 31.5 | 500 | 1886 | 1560 | 90 | 0-25 | 12 | 18 |
| ZT-TSD280 | 280 | 31.5 | 500 | 1938 | 2330 | 130 | 0-25 | 19 | 18 |
| ZT-TSD300 | 300 | 31.5 | 500 | 1940 | 2460 | 140 | 0-25 | 20 | 18 |
| ZT-TSD400 | 400 | 31.5 | 500 | 2100 | 3396 | 220 | 0-25 | 27 | 18 |
| ZT-TSD580 | 580 | 31.5 | 500 | 2220 | 4980 | 260 | 0-25 | 38 | 18 |
| ZT-TSD680 | 680 | 31.5 | 500 | 2180 | 5410 | 320 | 0-25 | 45 | 18 |
| ZT-TSD800 | 800 | 31.5 | 500 | 2200 | 6880 | 360 | 0-25 | 54 | 18 |
| ZT-TSD1000 | 1000 | 31.5 | 500 | 2286 | 8520 | 560 | 0-25 | 66 | 18 |
MCLC series hydraulic lifting system
Major component description
