Hydraulic Ceramic Plunger Pump For Filter Press

Hydraulic Ceramic Plunger Pump For Filter Press

Products - Ceramic Plunger Pump
  • Highlight

    Hydraulic Ceramic Plunger Pump

    ,

    Filter Press Ceramic Plunger Pump

    ,

    Ceramic Plunger Pump

  • Style
    YB140
  • Moter
    55Kw
  • Flow
    5m3
  • Pressure
    0.1-2.5Pma
  • Place of Origin
    China
  • Brand Name
    ZT
  • Certification
    CE ISO
  • Model Number
    ZT140
  • Minimum Order Quantity
    1
  • Price
    negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    5-10 Work Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100pcs/month

Hydraulic Ceramic Plunger Pump For Filter Press

  • Hydraulic Ceramic Plunger Pump For Filter Press
Get Price Contact Now

1. Product Introduction

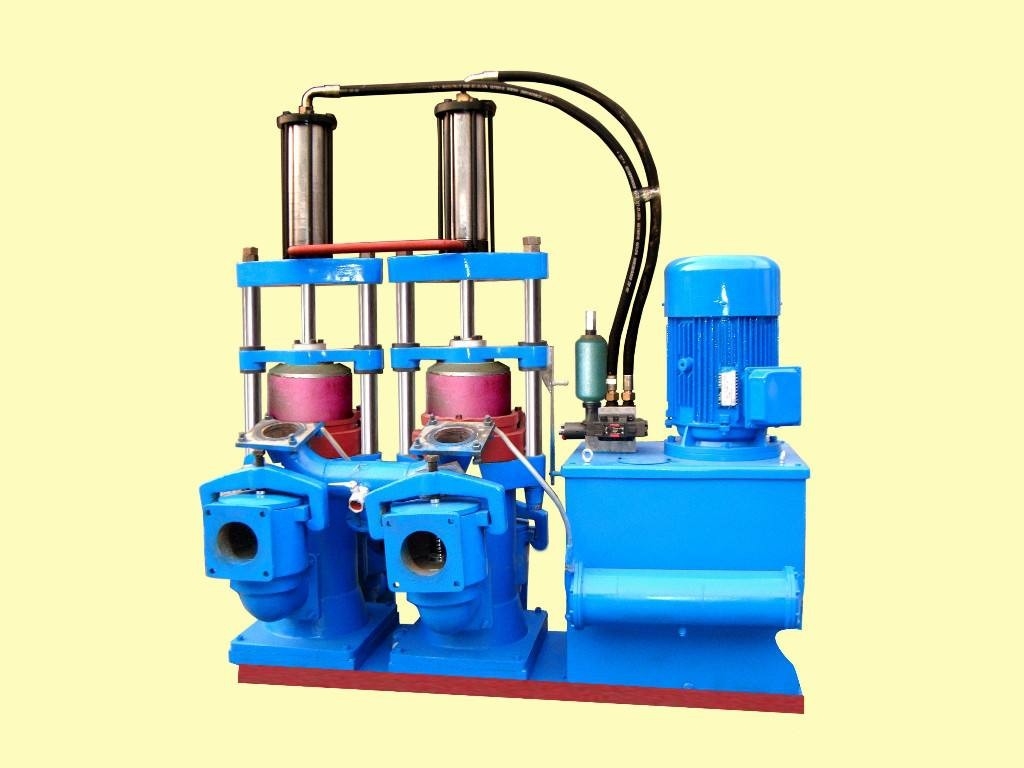

YB Hydraulic Ceramic Plunger Pump

YB hydraulic ceramic plunger pump is a hydraulic driven double cylinder double acting ceramic plunger mud pump. YB series hydraulic ceramic plunger pump can be widely used in: ceramic, environmental protection, chemical, medicine, mining, food and other industries.
YB hydraulic ceramic plunger pump Can be used for various types of slurry supply, can also be long-distance slurry transport, cleaning, pulp, coal slurry (or other suspension), can be equipped with filter press. Filter press feed conveying, large flow, stable pressure, effectively reduce the moisture content of mud cake.
The new generation of titanium alloy anticorrosive plunger pump has good corrosion resistance and wear resistance. The material can withstand full concentration of hydrochloric acid, full concentration of liquid alkali, sulfuric acid up to 80%, nitric acid up to 50%. Pressed film processing, high mechanical strength, no aging, no toxin decomposition and other advantages, life extension of 5-6 years, is an alternative to stainless steel products.
Because YB hydraulic ceramic plunger pump can show high energy saving efficiency, it is very popular all over the world. Experiments have proved that many customers have now replaced traditional mud pumps with hydraulic ceramic piston pumps.


Hydraulic Ceramic Plunger Pump For Filter Press 0



2. Parameters

Hydraulic Ceramic Plunger Pump For Filter Press 1









2. Advantages



1. The hydraulic double cylinder double action high pressure mud pump runs smoothly.
2. Hydraulic double cylinder double action high pressure mud pump noise is low.
3. Hydraulic double cylinder double acting high pressure mud pump pressure is high.
4. Hydraulic double cylinder double acting high pressure mud pump pressure fluctuation is small.
5. Hydraulic double cylinder double action high pressure mud pump small size, light weight, easy installation, operation and maintenance.
6. Hydraulic double cylinder double action high pressure mud pump has long service life.



3. Usage



Application : Our products are widely used in ceramics industry (ceramic bowl factories, ceramic stone factories), electrical porcelain (electrical porcelain factories), mining, pharmaceutical industry (pharmaceutical factories), chemical industry (chemical factories), petroleum, environmental protection (water treatment, municipal sewage, papermaking sludge, glass polishing, steel rolling, electroplating wastewater, washing wastewater, leather factories, dyeing and printing wastewater) and other industries.
