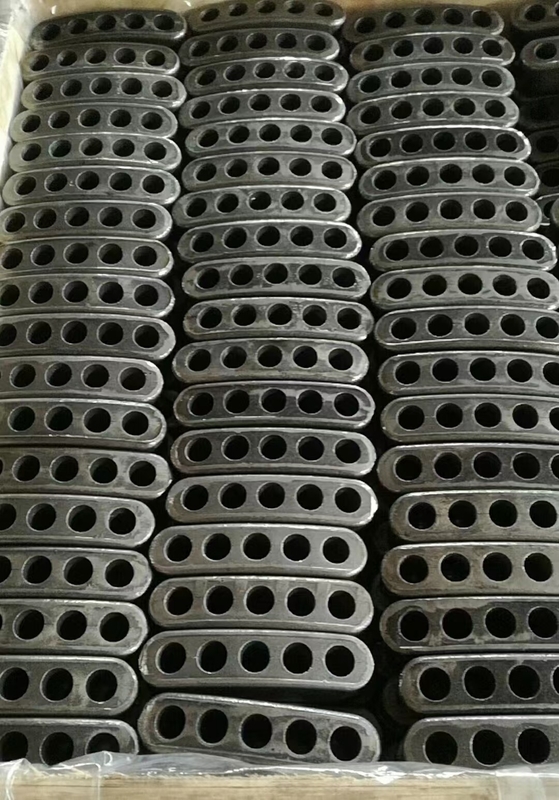

S2 S3 S4 S5 Holes Anchor Block Anchor Accessories 15.2mm PC Strand Flat Anchor Block

Anchorage S2 S3 S4 S5 Holes Anchor Block for 15.2mm PC Strand Flat Anchor for Construction

Product Description of Flat Anchor

The anchoring system of spheroidal graphite cast iron integrated anchor is designed for unbonded PC strand based on the application of PC strand anchorage in recent 20 years in China.Its feature is that the anchorage at the tension end adopts the spheroidal graphite to integrate the bearing plate and anchor head.It has compact structure and reliable anchoring, Its performance meets the national requirements of GB/t14370-2000, and it is also applicable to 2000MPa PC strand.In addition, the biggest advantage of the anchoring system is that the full length of PC strand can be fully sealed.

Technical Parameters of Flat Anchor

Features of Flat Anchor

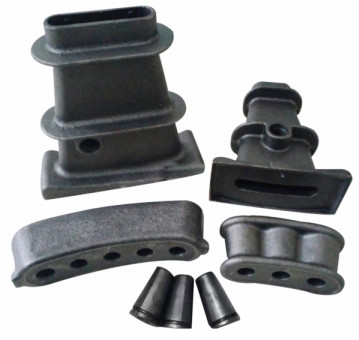

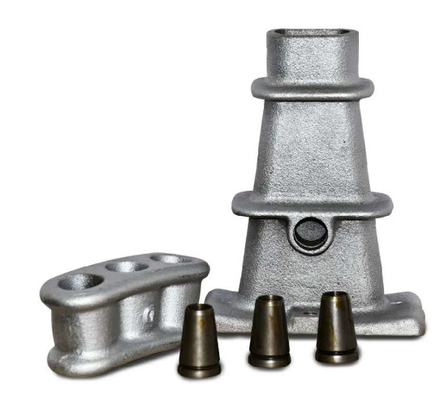

Including anchor head, anchor wedge and anchor plate

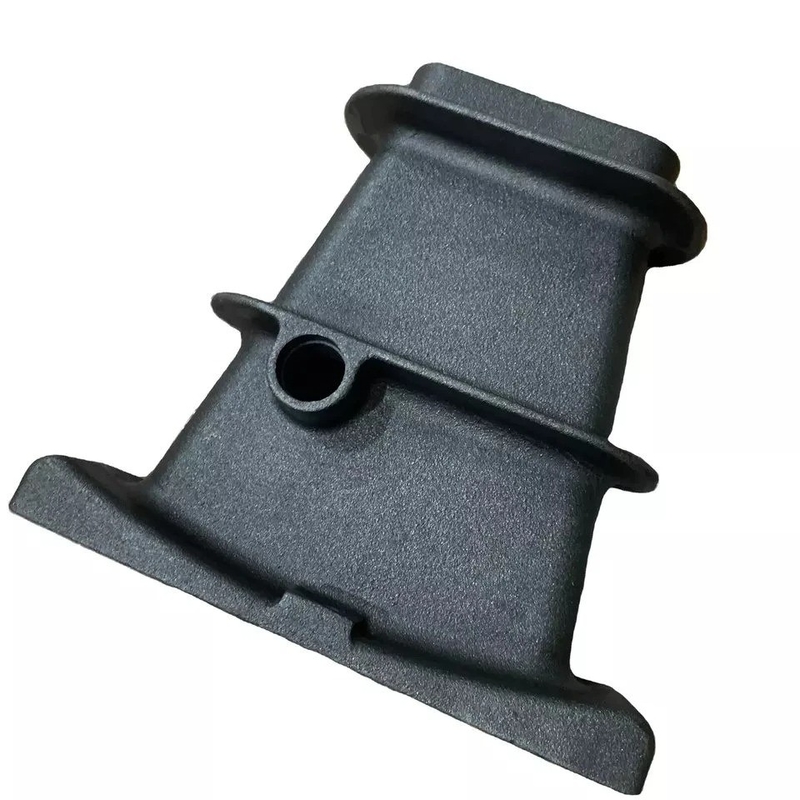

Adopts the ductile iron material, and combines the traditional anchor head and the anchor plate into one, which greatly simplifies the complicated machining process in the previous anchor tool processing
The utility model is characterized in that the tension end anchor is integrated with the anchor ring by ductile iron, and the structure is compact and the anchoring is reliable.
The full length of the prestressing tendon can be completely closed.

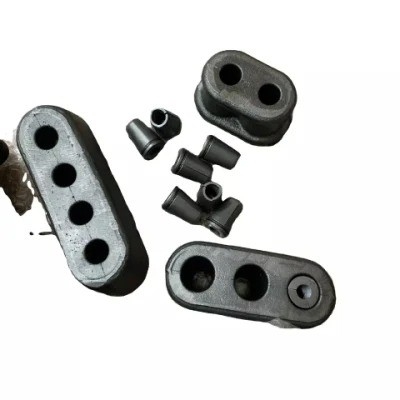

Flat Shape, Mature Efficiency Design, Straight or Arc shape anchor head abailable 3, 4, 5 holes available; Well Deburring and Chamfering; Galvanized or Chemical Dioxide Surface Treatment( Black).

Advantages of Flat Anchor

Simple structure, Convenient installation, Good sealing performance, Used for unbonded prestressed building works

Application of Flat Anchor

1. Used in pre-tension or post-tension for concrete constructions as building materials.
2. Used in the upper plates of bridges.
3. Used PC panels, high-pressure concrete water pipes, marine structures, towers and runways.
4. residential buildings, stadiums, coal mines and etc.
