CE Bridge Erecting Machine Intelligent Tension 25 Ton Hydraulic Mono Stressing Jack

Intelligent Tension 25 Ton Hydraulic Mono Stressing in Construction

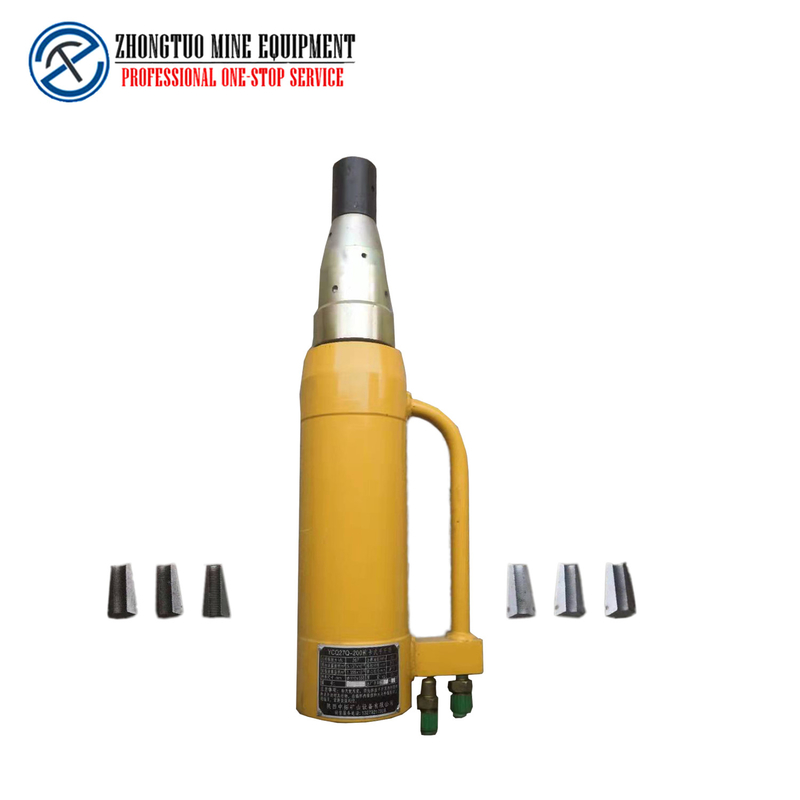

Description of Hydraulic Mono Strand Stressing Jack

Hydraulic Mono Jack is multi-purpose prestressed tension equipment, easy to operate. Mainly used for single-hole tension. It can also be used for porous pretension, tension, and barrier removal, and can be applied to a variety of specifications and sizes of high-strength steel wire bundles and strands. Jack is one of the indispensable tools in tension anchorage construction of prestressed engineering. No jack can do everything. The jack structure, structure size, and tensioning tonnage limit its range of use. The front clamping jack is small in volume, light in weight, and high in efficiency. The important thing is that it is a thousand card type steel strand reserved length is short, especially suitable for high altitude or small space position of the operation.

Technical Parameter of Mono Jack

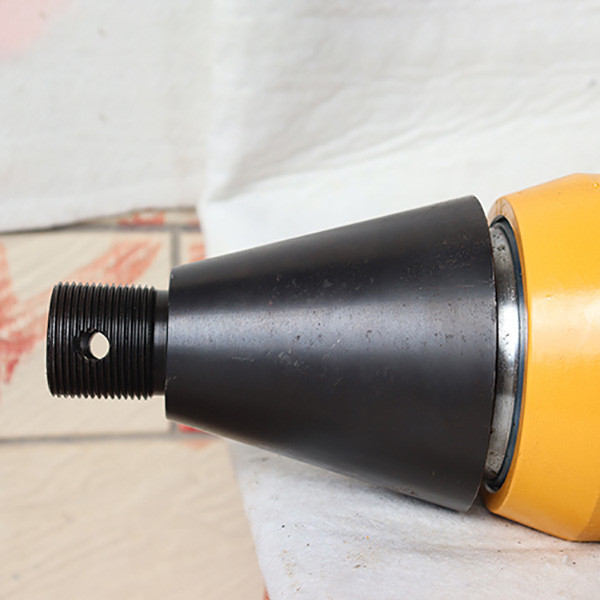

Components of Mono Jack

Post-Tensioning Hydraulic Jack Structure features

1. Mono strand jack is mainly used for single-hole tensioning. It can also be used for porous preloading, tensioning, and troubleshooting, and can be applied to high-strength steel wire bundles and steel strands of various sizes.
2. Installation and construction are very convenient: no need to rotate the arbitrarily installed working anchor; no need to rotate the radial direction of the; it is easier and faster to install the tool anchor plate and tool clamp piece than the original post-card type.
3. The limit plate, tool anchor and tension jack are separated and independent.
4. Better stability: the conventional post-card tensioning jack for a 3-point piston guide, this series of tensioning jacks for a 4-point piston guide; overcome the 3-point guide eccentric tensioning force often produces the phenomenon of pulling the cylinder scrap jack.
5. It overcomes the shortcomings of cumbersome and inconvenient installation of the overall front card tensioning jack at home and abroad.

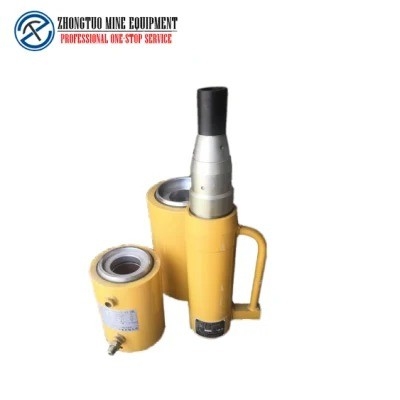

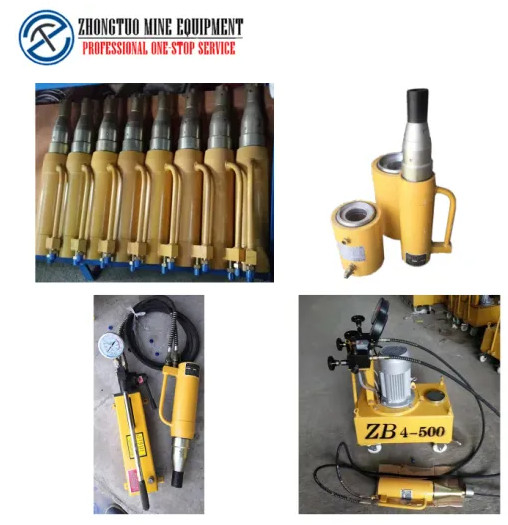

Related Accessories

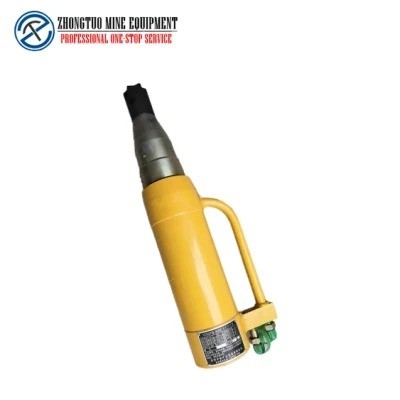

Construction of Hydraulic Mono Strand Stressing Jack

Checking methods of Hydraulic Mono Strand Stressing Jack
(1) It is a relatively accurate method to calibrate the jack with the standard force juice (such as sensor, force ring, etc.) to be measured. And it is suitable for mobile units. It is recommended that the construction unit purchase sensors and a resistance strain gauge, and then make a self-made afterburner to verify the jack.
(2) Use the testing machine to check the jack. This method is a routine method used by many units.
(3) Two jacks on the item method; use a verified jack as the "standard" jack, and verify the jack by mutual jacking.

Entire Service
We would provide customers with a one-year warranty, during processing, if customers have any problems with installation and use, we have professionals to provide online text, voice, or video communication services for them.
