ISO Prestressed Concrete Steel Strand Unbonded PC Strand 12.7mm 15.2mm 12.8mm
-
Highlight
ISO Prestressed Concrete Steel Strand 12.7mm
,ISO Prestressed Concrete Steel Strand 15.2mm
,unbonded pc strand 12.8mm
-

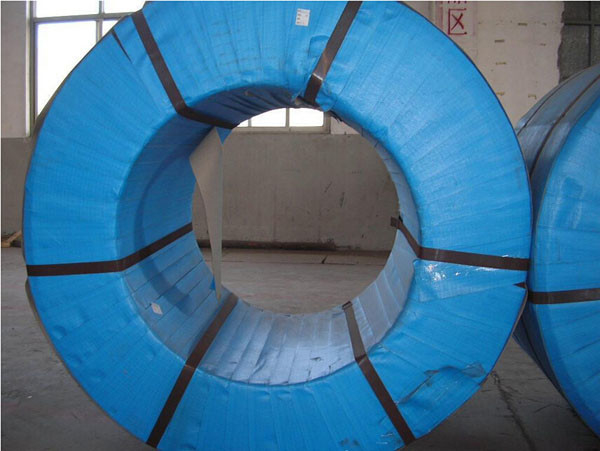

Transport PackagePlastic Film In Blue Color
-
HS Code73121000
-

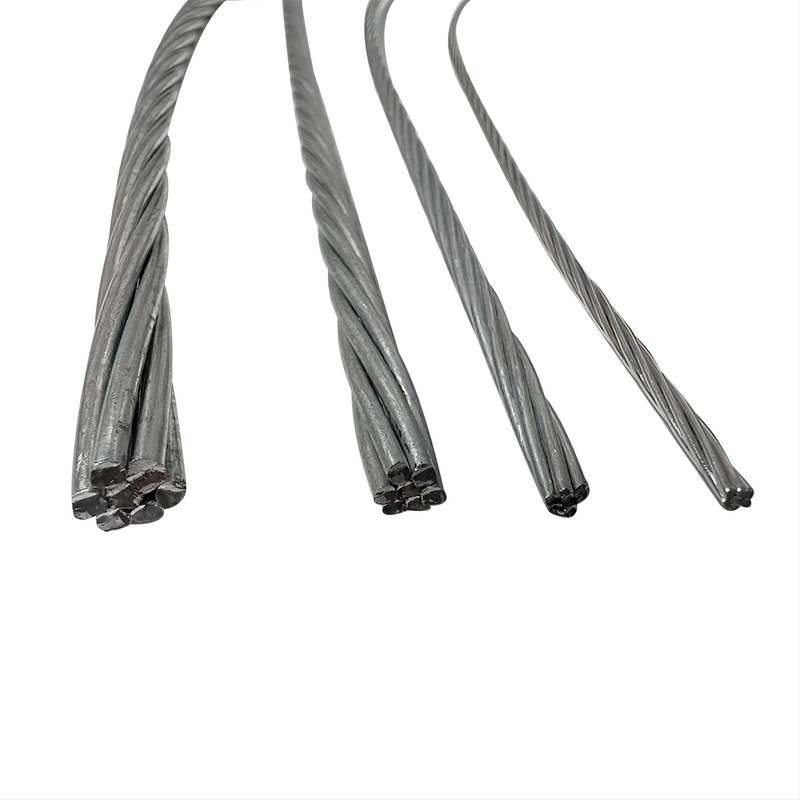

Strands7 Strands / 9 Strands / 13 Strands
-

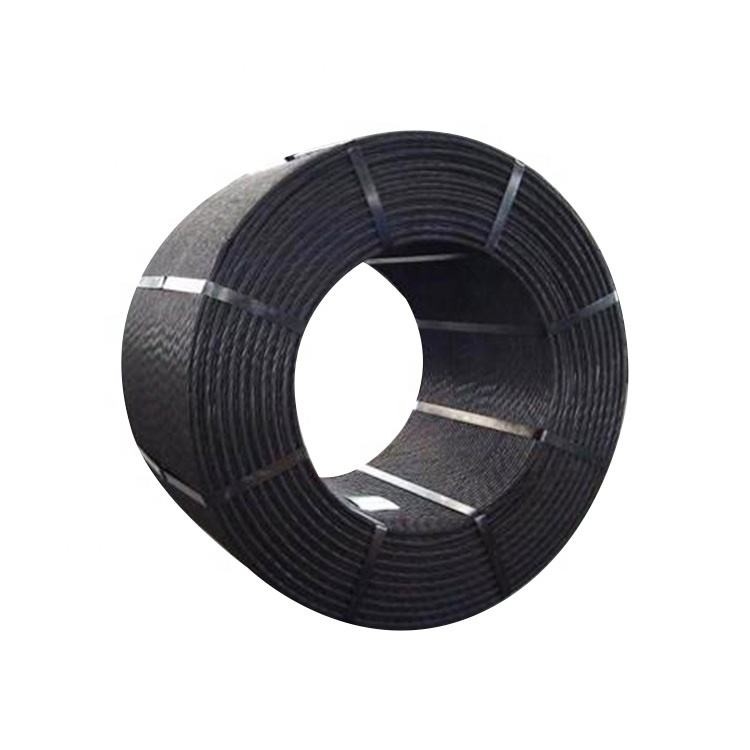

Coil Weight2.4mts-3.2mts
-
RelaxationLow Relaxation
-
ThicknessMetal Thick Wire
-
After-sales ServiceTracking Guidance & Service
-
WarrantyOne Year
-
Place of OriginChina
-
Brand NameZHONGTUO
-
CertificationCE ISO
-
Minimum Order Quantity1
-
Packaging DetailsWooden Pallet
-
Delivery Time7-15 Days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
ISO Prestressed Concrete Steel Strand Unbonded PC Strand 12.7mm 15.2mm 12.8mm

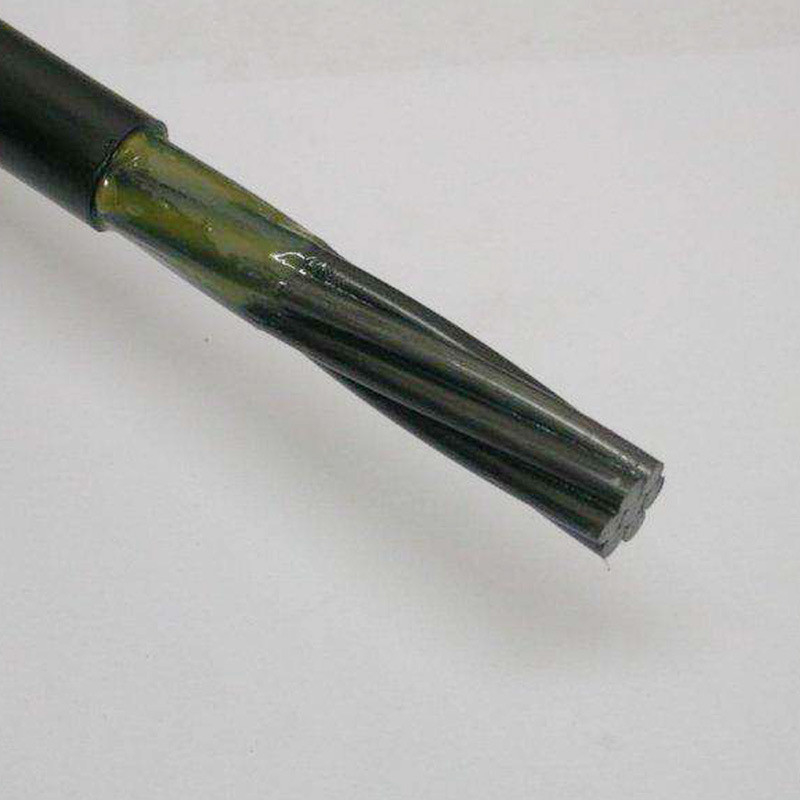

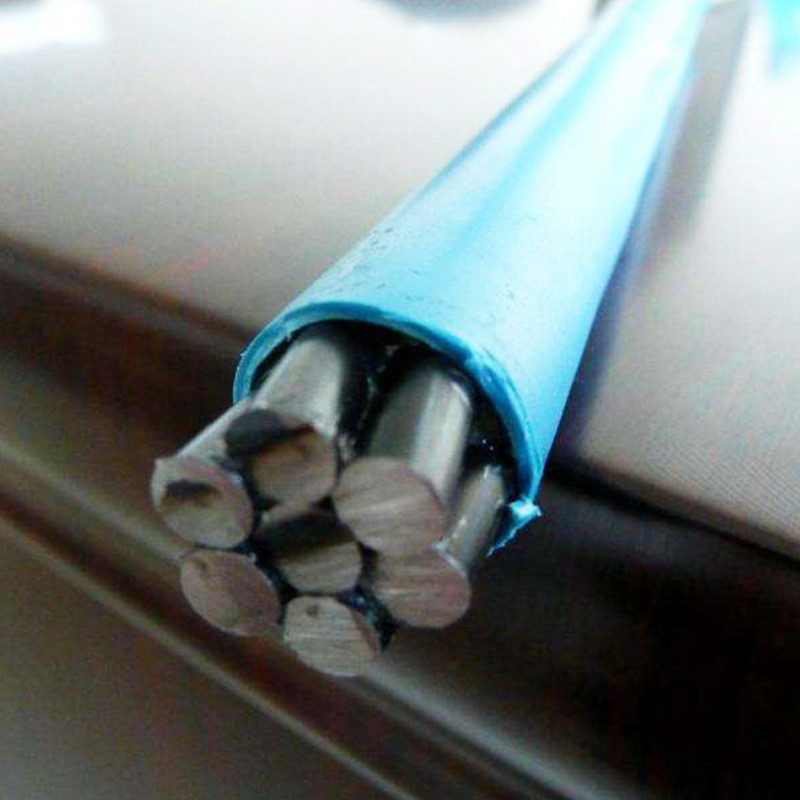

Composition of unbonded prestressed steel strands
The unbonded prestressed steel strand consists of 3 layers, the outermost layer is the outer layer, which is made of polyethylene or polypropylene, and the use of polyvinyl chloride is strictly prohibited. The middle layer is special anti-corrosion grease, and the inner layer is a prestressed steel strand.
Unbonded Prestressed Strand Installation
The unbonded prestressed strands are installed in place with the normal rebar before the concrete is poured. Unbonded prestressed steel strands should not have dead bends, and joints are strictly prohibited.
Technical Parameter of Unbonded Prestressed Strand
| Dia(mm) | Tensile Strength(Rm/MPa) | Max strength for hole wire(Fm/kN) | StipulatedNominal Non proportional extension rate(Fp0.2/kN) | Cross section size(mm2) | Approximate weight(g/m) | Tolerance(mm) |
| 12.7 | ≥1860 | ≥185.1 | ≥166 | 98.7 | 775 | +0.4~-0.2 |
| 15.2 | ≥1860 | ≥262.5 | ≥235 | 150 | 1178 | +0.4~-0.2 |
| 12.8 | ≥1860 | ≥358 | ≥318 | 191 | 1500 | +0.4~-0.2 |
Arrangement of unbonded prestressed steel strands
The number of segments of unbonded prestressed steel strands shall be half of the number of anchor ribs, and the upper and lower rings shall be adjacent to each other. The anchoring position of the unbonded prestressed steel strand should be staggered by one anchoring rib. The calculated length of the unbonded prestressed steel strand shall include the width of an anchor rib, the working length of the tension at both ends, and the length of the anchor distance at both ends.
Tensile anchorage of unbonded prestressed steel strands
When the length of the unbonded prestressed steel strand is less than 25 meters, one end should be used for tension. When the length of the unbonded prestressed steel strand is greater than 25 meters and less than 50 meters, the two ends should be tensioned. After the tensioning is completed, the excess unbonded prestressed steel strands are cut off. For the construction of sealing anchor concrete, the strength grade of the sealing anchor concrete shall not be lower than that of the structural concrete, and shall not be lower than 40MPa.
Application of The PC Strand
1) Used in the upper plates of bridges
2) As cable for special bridges and for the maintenance of bridges
3) In construction, this product is used in concrete pillars and supports for the construction of buildings, domes for nuclear
power plants and reinforcement of LNG concrete tanks.
4) It is also used as floor and roof reinforcement for sports stadiums.
5) It can be extensively used in construction materials for PC panels, high-pressure concrete water pipes, marine structures,
towers and runways.
Entire Service
We would provide customers with a one-year warranty, during processing, if customers have any problems with installation and use, we have professionals to provide online text, voice, or video communication services for them.
Our products are sold all over the world, you can rest assured.
