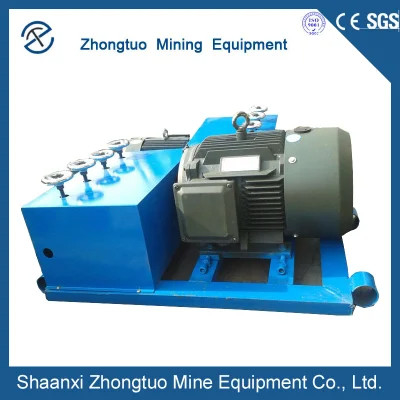

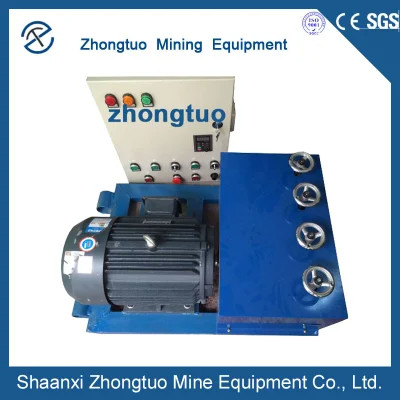

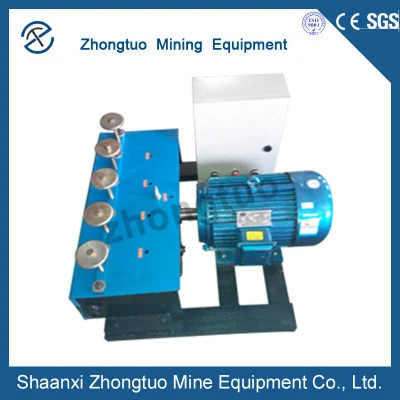

ISO Bridge Construction Machine Large Capacity Strand Pusher For Prestress Concrete

Working Principle of Pusher Machine

The reducer drives the double driving wheel to rotate, the steel hinge wire is inserted from one end of the wire inlet, and the driving wheel and the double cluster moving wheel press the steel hinge wire to move forward along the conduit and penetrate the reserved hole until the other end of the hole reaches the tension. Use size.

Technical Parameter of Pusher Machine

Advantages of Pusher Machine

1. Automatic: Brake machine with automatic threading and automatic brake device, belonging to the technical specialty.

2. Convenient: Post tension strand pusher can retreat, small volume, lightweight, simple operation, and convenient maintenance.

3. Efficient work: In the process of construction, two people can complete the operation, greatly reduce labor intensity, and improve production efficiency.

The operation process is as follows
1. Hang the steel strand bundle to the end of the prefabricated beam, about 10 meters away from the prefabricated beam, fix it with a steel strand cage, and open the bundle.
2. Install the cable threading machine in place.
3. Pass one end of the strand head through the cable threading machine.
4. The other end of the beam turns on the power supply of the cable threading machine, and the cable threading machine starts to work.
5. When the steel strand reaches the other end of the beam and reaches the required exposed length of the steel strand, the power controller turns off the power supply of the cable threading machine and simultaneously enters one end of the steel strand.
6. Put on a steel strand..
