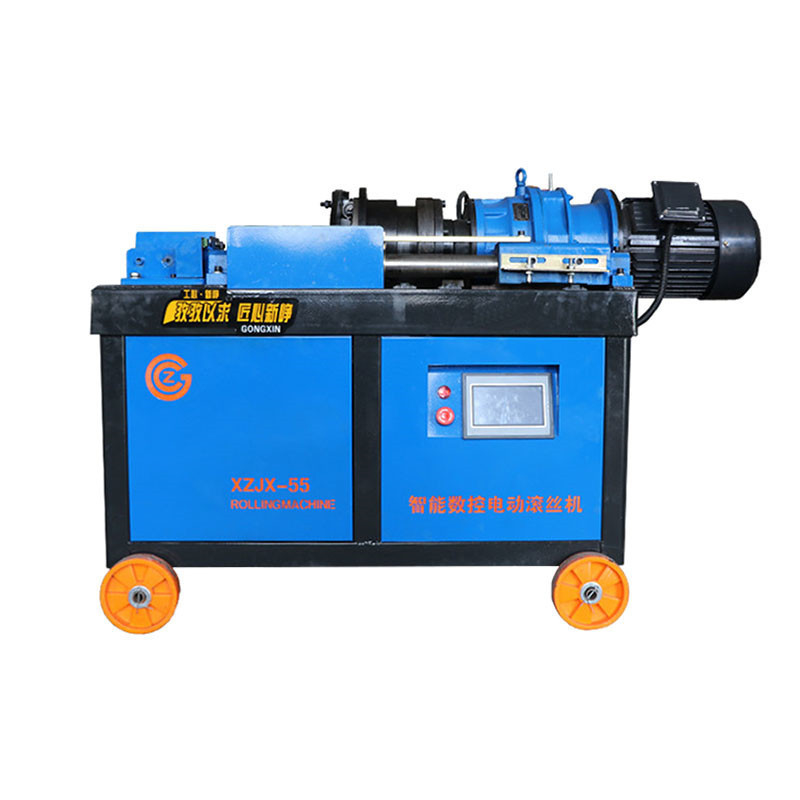

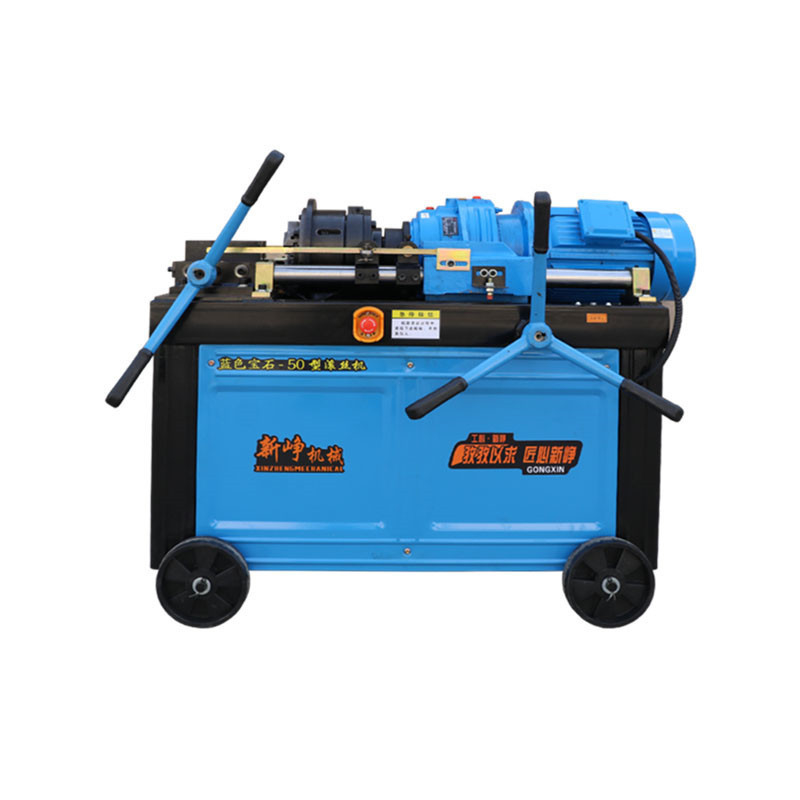

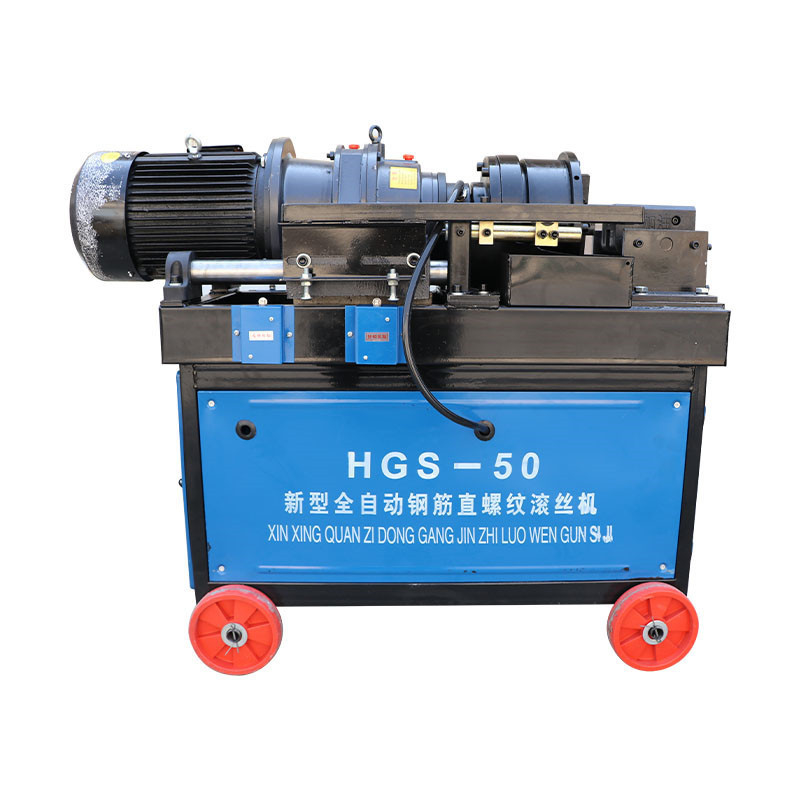

Processing Steel Bar Rib Stripping Straight Thread Rolling Machine 7.5KW

Working process of thread rolling machine
1. Debug the machine tool, turn on the power supply as required, add coolant to the coolant tank, and then start the thread rolling machine for the trial operation to see if the cooling system and control system is usually working.
2. According to the diameter of the steel bar that needs to be rolled, install the corresponding thread rolling wheel and replace the corresponding washer simultaneously to ensure the thread pitch's accuracy.
3. Clamp the steel bar, install the steel bar to be rolled on the centering jaw, align the protruding length with the end face of the rolling head stripping blade at the starting position, and clamp the steel bar.
4. Start the thread rolling machine, turn the moving handle, turn forward to start stripping ribs, continue to feed and roll threads, press the reverse start button after thread rolling, and automatically retract the knife.
5. After the work is over, clean the machine tool to keep it clean and dry, and regularly perform maintenance such as lubricating oil replacement and tool wear on the thread rolling machine.

Features of steel bar straight thread rolling machine

1. The steel bar rolling machine is very automatic, it can automatically raise the knife and return automatically, and the noise generated by the equipment is also very small;
2. The quality of its joints is stable and reliable, and the strength of the joints is higher than that of ordinary base materials;
3. It processes a wide range of steel bars and occupies less equipment；
4. This is also the most important point: the service life of the thread rolling wheel is long, and the use of additional costs for joints is also very small.

Technical Parameter

Advantages of thread rolling machine

1. Thread rolling machines such as thread head go-stop ring gauges and length gauges use cutting and rolling threads for one-time forming to achieve the purpose of reinforcement and thread processing at the end of the steel bar and solve the problem of pretreatment of the end of the steel bar before processing, and the pain that similar equipment needs to be rolled many times, which reduces the process of processing and multiple steel bar handling on site, and improves the efficiency of on-site production and processing;
2. The thread rolling machine can use one rolling thread head to realize the rolling processing of steel bars of various specifications, which solves the situation that similar equipment needs one rolling thread head for each specification to process straight threads at the ends of steel bars. The thread rolling machine adopts an internal cooling liquid, which solves the problem of chip removal during rolling processing. It has high automation intensity, and it automatically stops when feeding and resets.
3. The rib stripping straight thread rolling machine for steel bars is a special equipment for processing straight thread heads of steel bars. The end of the steel bar is stripped round by a rib stripping knife, and then three open-thread rolling wheels are used to roll the straight thread of the steel bar, so as to achieve the straight thread of the steel bar quality requirements for thread forming.

Tool regrinding and replacement
1. The rib stripping knife cuts a certain amount of steel bars, and the blade will become blunt. At this time, the rib stripping knife should be removed, and the front edge of the knife should be ground to 0.2-0.3mm (sharpening the top surface of the knife is strictly prohibited). It can be reused after installation.
2. When the edge of the rib stripping knife cracks and cannot cut normally, it can be replaced with a new blade.
3. After the thread rolling wheel has rolled a certain number of thread ends, if the tooth shape is damaged due to wear and tear, and the qualified thread ends cannot be rolled out, the thread rolling wheel should be replaced in time.
4. When replacing a new thread rolling wheel, the washer for adjusting the pitch must be installed correctly, otherwise it will not work properly.
