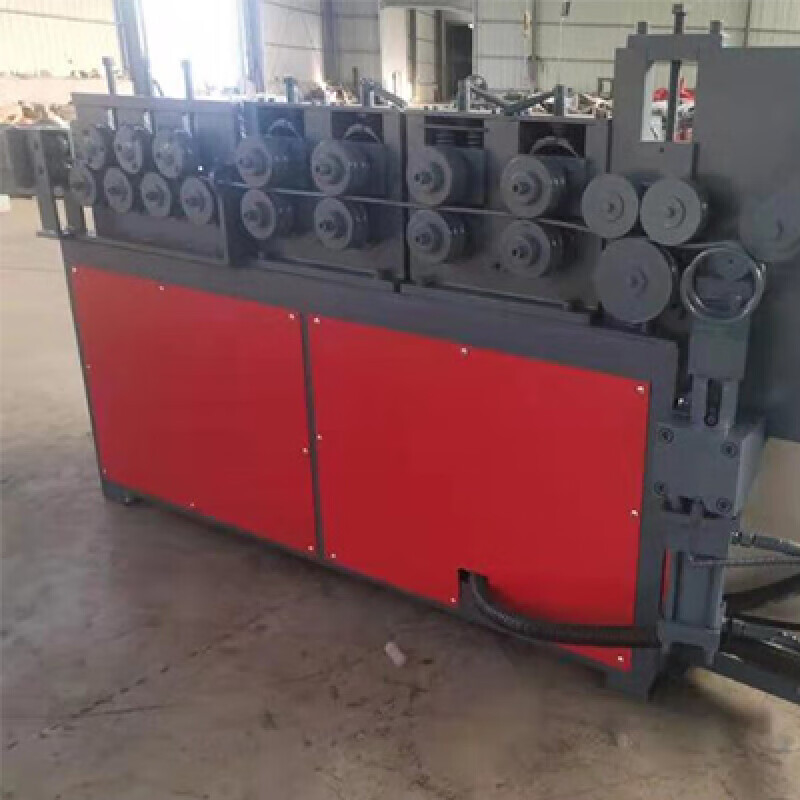

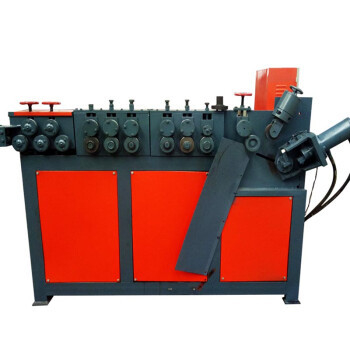

High-Speed Iron Spiral Forming Machine

Application fields of High-Speed Iron Spiral Forming Machine
High-speed rail, viaduct, pipe pile, pile foundation, prestressing, and other projects; can be used for rolling, spiral reinforcement, prestressed spiral reinforcement, etc. The spiral bar forming machine our factory produces is essential in processing steel cages for bridge pile foundations. It truly realizes the digital control of the whole process of steel bar adjustment until bending hoops, bending and arc forming, and automatic cutting to length. It saves the number of steel bars and improves work efficiency. Ensure project quality.

Performance characteristics of High-Speed Iron Spiral Forming Machine

1. The controller of the spiral rib forming machine adopts a PLC programmable controller, the text display can adjust parameters arbitrarily, 5 kinds of storage options of slow rising and slow falling values, digital display counting, saving time, convenient management, and improving production efficiency.
2. The wire feeding is driven by a stepping motor, the stepping engine runs with ample torque and high speed, and the gear decelerates to assist, with higher precision, stable wire feeding, fast and accurate, with manual slow speed forward and reverse function, easy to adjust.
3. Professionally designed and manufactured oil pressure station, equipped with a forced water-cooled radiator, high-efficiency cold control oil temperature, used for oil cylinder cutting iron wire, electromagnetic oil valve, oil pump, oil pump motor adopts Taiwan products and works continuously in a high-temperature environment. Just as stable.
4. Eight-digit digital counter, the number of products can be set, and it will stop automatically when finished.

Technical Parameter of High-Speed Iron Spiral Forming Machine

Instructions for High-Speed Iron Spiral Forming Machine

The high-speed rail spiral bar forming machine is started by the PLC main board to control the motor to drive the oil pump, create the hydraulic components to go the straightening gearbox to run, push the material forward, advance to the rounding assembly to complete the circle forming, and then cut off the oil cylinder to cut the material up to complete the operation. This model can be set up in batches and automatically process a bundle of steel bars. Input the required number and length according to the panel display to complete the operation and start the switch.

Usage of High-Speed Iron Spiral Forming Machine

The spiral tendons also restrain the concrete within the core to increase the load-bearing capacity. When the column needs to withstand considerable axial pressure, the cross-sectional size is limited, and the increase of reinforcement and concrete strength cannot meet the requirements, spiral stirrups or welded ring stirrups (collectively referred to as indirect support) can be used to improve The bearing capacity of the column.
The specific reason for improving the bearing capacity is that the core part of the concrete produces a large transverse deformation, which causes the spiral stirrups to generate hoop tension, that is, the core part of the concrete is under the radial pressure of the spiral stirrups, and is in a three-dimensional compression state. Compressive strength can be increased by using spiral stirrups or welded ring stirrups (collectively referred to as indirect reinforcement) to increase the bearing capacity of the column.
