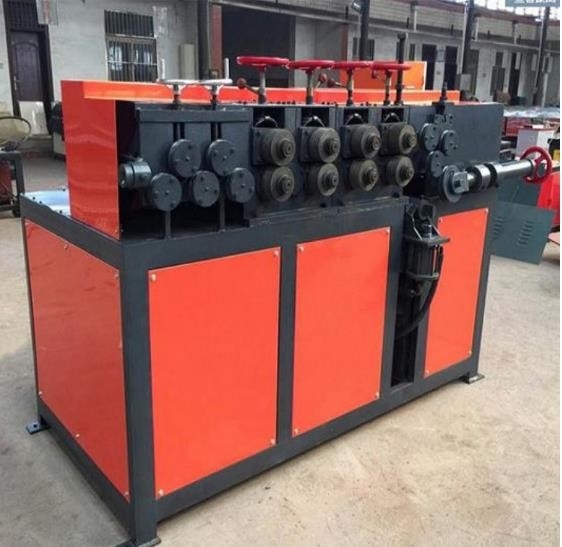

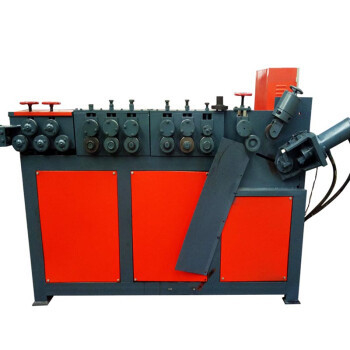

Automatic Spiral Reinforcement Forming Machine

Performance overview of spiral bar forming machine

1. It adopts single-chip integrated control, can adjust parameters arbitrarily, has multiple parameter storage functions, digital display, saves time, facilitates management, and improves production efficiency.
2. The critical part of the machine adopts imported components to ensure the service life of the device, the encoder meter counting error is small and accurate positioning is used.
3. This machine has the characteristics of being smooth, fast, accurate, and can be short. The characteristics of slow speed and reverse feeding.
4. All have hydraulic transmission, cycloidal motor, no need for gear assist, and can reduce gear clearance
5. The machine is a box-shaped structure with good rigidity, and the hydraulic transmission part is flexible and reliable.
6. The control box is equipped with: fast feeding, automatic cutting, manual cutting, automatic stop, starting, and other functions.

Technical Parameter of High-Speed Iron Spiral Forming Machine

Instructions for High-Speed Iron Spiral Forming Machine

The high-speed rail spiral bar forming machine is started by the PLC main board to control the motor to drive the oil pump, create the hydraulic components to go the straightening gearbox to run, push the material forward, advance to the rounding assembly to complete the circle forming, and then cut off the oil cylinder to cut the material up to complete the operation. This model can be set up in batches and automatically process a bundle of steel bars. Input the required number and length according to the panel display to complete the operation and start the switch.

Usage of High-Speed Iron Spiral Forming Machine

The steel bar spiral bar forming machine adopts a semi-automatic flat spiral bar winding machine with a rotary forming structure, including a workbench, which is characterized in that there is a semicircular Bodao on the workbench, and a rotating shaft moving along the track is provided in the track, and the outer sleeve of the rotating shaft There is a sleeve, and the workbench is provided with a fixed shaft at the center of the track, a pitch forming plate is provided between the fixed shaft and the track, a feed plate is provided on one side of the fixed shaft, and a guide hole is opened on the feed plate. The open end of the guide hole is facing between the pitch forming plate and the track. The hoop and straightening functions of the spiral bar forming machine are carried out at the same time. When the CNC hoop bending machine is working, the straightening function continuously performs the entire operation of blanking, preparation and blanking, and then achieves straightening and hoop bending. Synchronous work, no human intervention is required to complete the bending hoop, because the hoop bending machine will be neatly arranged on the receiving rod after the hoop bending machine is used, which will save a lot of labor operating costs, greatly improve its production efficiency and prevent Because the stirrup is too large, the bending deformation caused by the bending work is caused.
