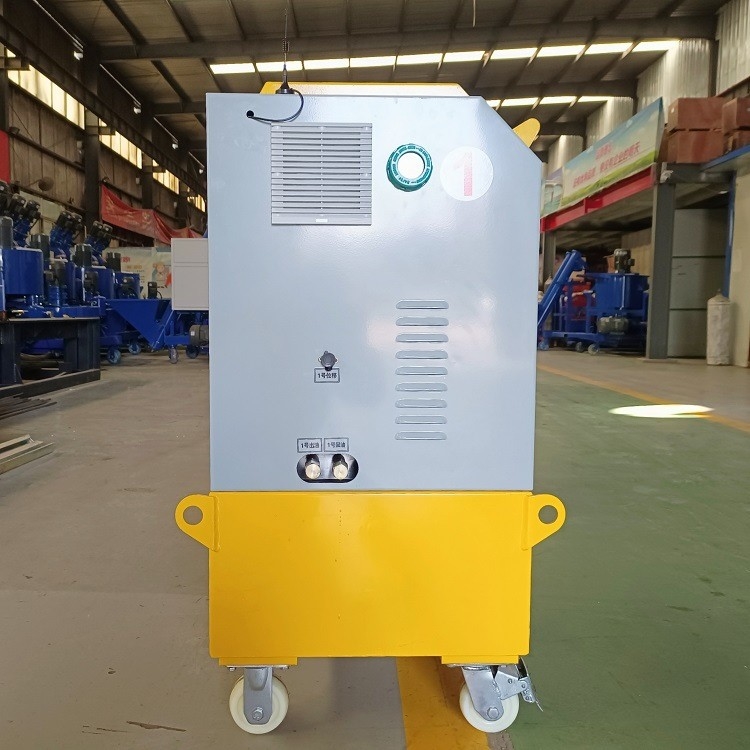

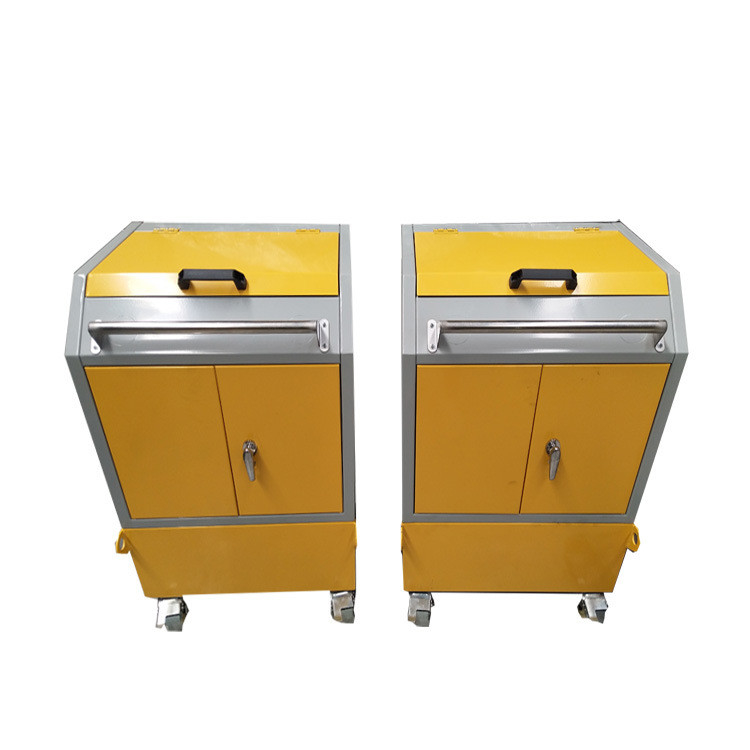

Intelligent Tensioning Equipment Box Girder Two Way Synchronous Tensioning System Jack

The main configuration of the Synchronous Tensioning System
1: Control module (1 control 4)
2: On-site monitoring of computer
3: Data transmission module (200M range between the main pump and the auxiliary pump, within 2KM between the main pump and the on-site monitoring computer)

Description of the Synchronous Tensioning System

Intelligent tensioning refers to tensioning construction that does not rely on manual control but uses computer intelligent control technology to automatically operate instruments to bend steel strands. Bridge prestressed tensioning and grouting construction are two key links in prestressed engineering. The two support each other and are indispensable. The prestressed tensioning technology effectively guarantees the quality of the prestressed tensioning construction, while the circulation intelligent grouting technology can ensure the fullness and compactness of the prestressed grouting construction. This complete set of technologies guarantees the quality of the two key processes of the prestressed project Provide safe and reliable technical support and quality assurance for bridge structures. Therefore, to ensure the safety and durability of the bridge structure, a complete set of intelligent tensioning and prestressing intelligent grouting technology should be adopted.

Technical Parameter of the Synchronous Tensioning System

Advantages of Bridge Numerical Control Tensioning Machine
1. Master-slave machine control mode - the system is composed of a master machine and a slave machine. One master machine can control the construction of multiple slave machines to achieve any combination.
2. Built-in computer system - without an external computer, it can directly control the master and slave machines to ensure that they master and slave machines work at the same time.
3. Language guidance function - during the tensioning process, the tensioning status will be broadcast in real-time to guide the following operation and confirm the tensioning program.
4. Soft start function - frequency conversion control, stable tensioning start, no impact; two-way tensioning synchronization is reasonable.
5. Economical and practical - the cost of the slave machine is lower than that of the master machine, which is beneficial to reduce the overall cost of the system when multiple slave machines are combined.
