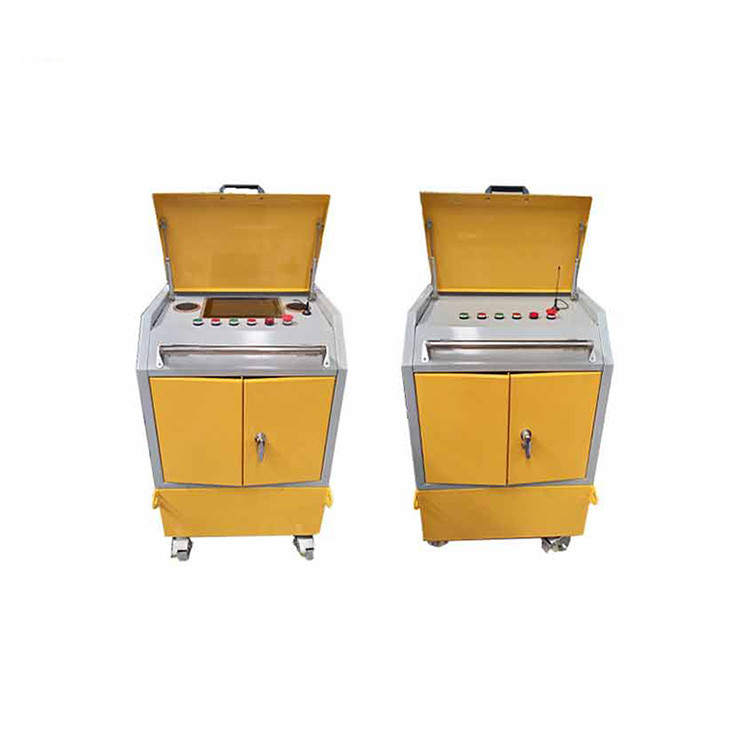

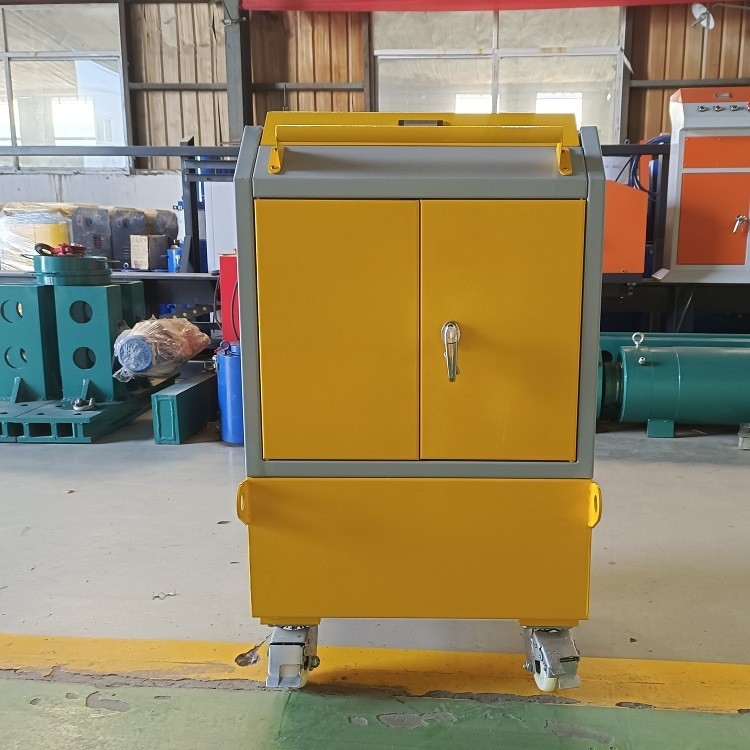

One Drag Four CNC Intelligent Tensioning System

Description of the Synchronous Tensioning System

Intelligent tensioning refers to the use of computer intelligent control technology and the automatic operation of instruments to complete the tensioning construction of steel strands without relying on manual control by workers. Due to the high precision and stability of the intelligent system, intelligent tensioning technology can completely eliminate the interference of human factors and effectively ensure the quality of prestressed tensioning construction.

Quality management function
Owners, supervisors, construction, and inspection units interact in real-time on the same Internet platform, breaking through geographical restrictions, and timely controlling the quality of prefabricated beam yards and bridge prestressed construction, realizing "real-time tracking, intelligent control, and timely error correction."
Automatically record tension data, eliminating the possibility of man-made falsification of quality data, and enabling real quality traceability. Quality management function
Owners, supervisors, construction, and inspection units interact in real-time on the same Internet platform, breaking through geographical restrictions, and timely controlling the quality of prefabricated beam yards and bridge prestressed construction, realizing "real-time tracking, intelligent control, and timely error correction."
Automatically record tension data, eliminating the possibility of man-made falsification of quality data, and enabling real quality traceability.

Technical Parameter of the Synchronous Tensioning System

Advantages of Bridge Numerical Control Tensioning Machine

1. Convenient operation
According to the tension data issued by the beam field information management center, input the box girder number, beam type, and tunnel and check the tension target value and elongation value on site. Just press the button, the tensioning process is fully automatic. It does not need to be equipped with professional and technical personnel, even ordinary workers with low cultural quality on the construction site can easily operate it.
2. Calibration function
The tension force of the system can be calibrated by a standard force measuring system and elongation.
3. Automatic fault detection
Aiming at the problems that may occur during the tensioning process, we have developed an automatic fault monitoring function with the cooperation of Germany's Siemens through three years of experience in the use of beam farms. or over tension will be displayed through the fault prompt function, and the machine will not be turned on until the fault is resolved to ensure safety and accuracy during use.
4. Supervision audit and Internet viewing data function
Relying on computer remote communication, it can provide remote monitoring functions for owners, supervisors, and construction parties, which facilitates quality management and improves management efficiency. Supervision engineers can check the stretching data through the Internet, review the data during the stretching process, and output printed reports after signature approval.
