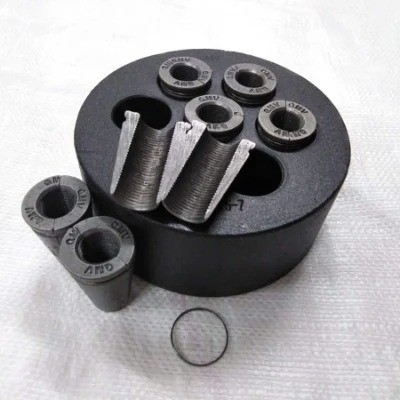

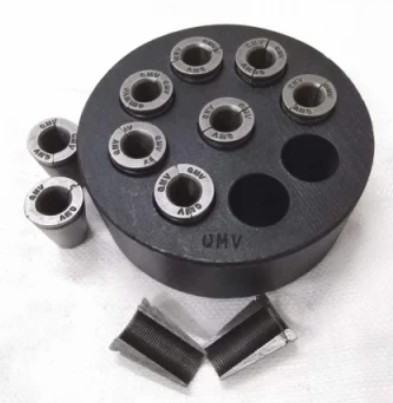

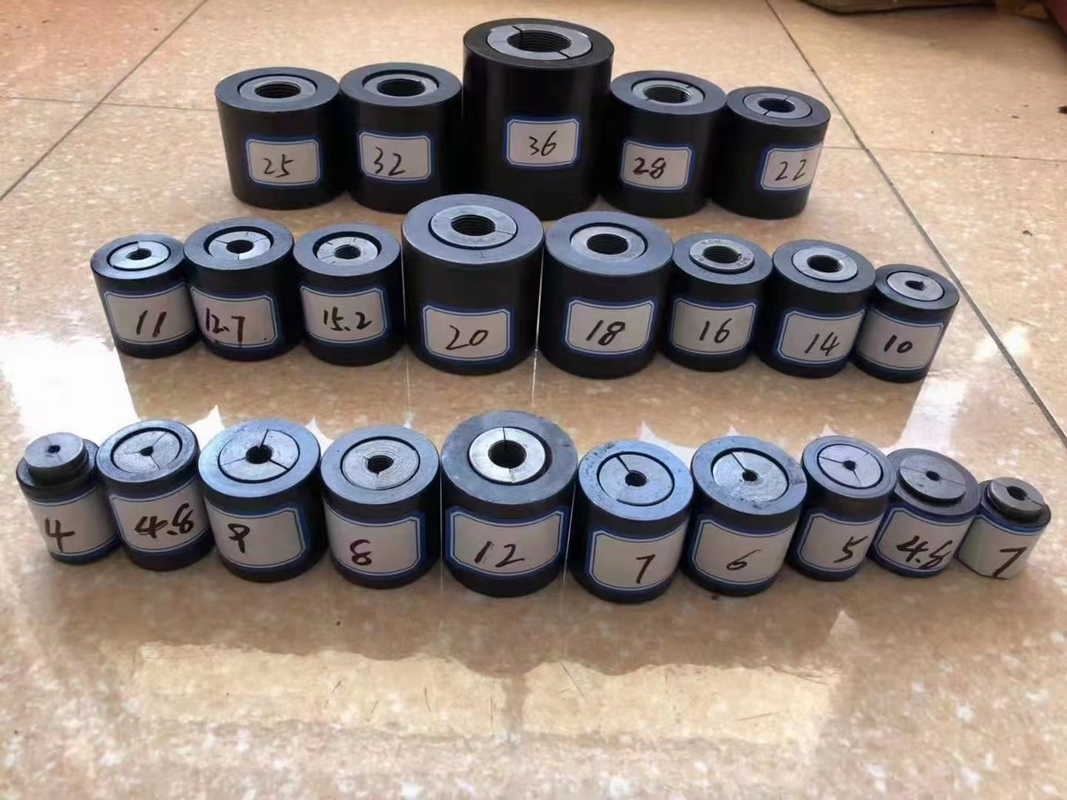

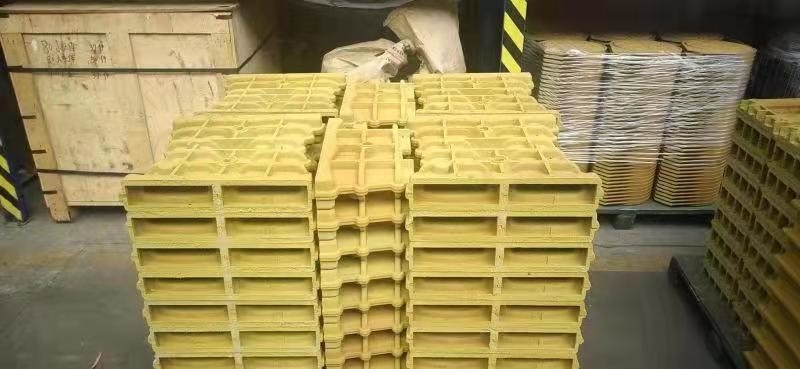

Prestressing pc strand stressing anchorage post tension anchor head and wedges



Prestress anchorage device is installed at the end of the steel strand and can tension the anchorage. (round anchor, flat anchor)



Prestressing Pc Strand Stressing Anchorage Post Tension Anchor Head And Wedges 0



Technical parameter of Bridge Tensioning Equipment Prestressed Anchor

Technical data of YJM13 Anchorage
Specification Anchor Head Bearing Plate Duct Spiral Reinforcement Stressing Jack
ΦA B Square Round ΦE(ID) ΦF H ΦG N
C*D ΦC*D
YJM13-1 38 40 80×10 - 35 80 30 6 3 QYC270
YJM13-2 76 42 115×80 120×80 45 120 40 8 3 YDC1100
YJM13-3 83 42 120×80 130×80 50 120 40 10 3 YDC1100
YJM13-4 87 42 130×87 135×85 50 135 50 10 3 YDC1100
YJM13-5 97 42 140×92 140×100 55 140 50 10 4 YDC1100
YJM13-6 107 45 150×97 150×125 60 160 50 12 4 YDC1100
YJM13-7 107 45 150×97 150×125 60 160 50 12 4 YDC1100
YJM13-8 117 45 165×115 165×135 60 170 50 12 4 YDC1500
YJM13-9 127 48 175×125 175×140 70 180 50 12 4 YDC1500
YJM13-10 136 48 180×130 180×150 80 200 50 14 4 YDC2500
YJM13-11 138 50 180×130 180×150 80 200 50 14 4 YDC2500
YJM13-12 143 50 190×140 190×150 80 210 50 14 5 YDC2500
YJM13-13 147 53 190×140 190×150 80 210 50 14 5 YDC2500
YJM13-14 153 53 195×150 200×160 80 220 50 14 5 YDC2500
YJM13-15 157 55 195×150 200×160 90 220 50 14 5 YDC2500
YJM13-16 167 55 210×160 210×185 90 240 60 16 6 YDC2500
YJM13-17 172 58 220×175 235×185 90 240 60 16 6 YDC3500
YJM13-18 176 58 235×175 235×185 90 260 60 16 6 YDC3500
YJM13-19 176 58 235×175 235×185 90 260 60 16 6 YDC3500
YJM13-20 196 60 270×185 260×200 90 270 60 16 6 YDC3500
YJM13-21 196 63 270×185 260×200 90 270 60 16 6 YDC3500
YJM13-22 196 65 270×185 260×200 90 270 60 18 6 YDC3500
YJM13-23 206 65 295×245 275×260 100 280 60 18 6 YDC4000
YJM13-24 206 68 295×245 275×260 100 280 60 18 6 YDC4000
YJM13-25 216 68 300×260 275×290 100 290 60 18 6 YDC4000
Technical data of YJM15 Anchorage
Specification Anchor Head Bearing Plate Duct Spiral Reinforcement Stressing Jack
ΦA B Square Round ΦE
(ID)		 ΦF H ΦG N
C×D ΦC×D
YJM15-1 43 46 80×12 80×20 35 80 30 8 4 QYC270
YJM15-2 83 48 130×85 135×80 50 120 40 10 4 YDC6500
YJM15-3 87 48 130×87 135×85 50 120 40 10 4 YDC650
YJM15-4 97 48 140×92 140×100 50 140 50 10 4 YDC1100
YJM15-5 107 48 150×97 150×120 55 150 50 10 4 YDC1100
YJM15-6 122 50 165×115 165×135 70 170 50 12 4 YDC1500
YJM15-7 122 50 175×125 175×135 70 170 50 12 4 YDC1500
YJM15-8 137 53 180×130 180×150 80 190 50 12 4 YDC2500
YJM15-9 147 53 190×140 190×150 80 200 50 12 4 YDC2500
YJM15-10 157 53 195×150 210×160 90 210 60 14 4 YDC2500
YJM15-11 157 55 210×160 210×160 90 210 60 14 4 YDC2500
YJM15-12 167 55 210×160 210×185 90 230 60 14 4 YDC2500
YJM15-13 177 55 220×175 210×185 90 230 60 14 4 YDC3500
YJM15-14 177 58 225×175 235×185 90 240 60 14 4 YDC3500
YJM15-15 187 60 235×175 235×185 90 260 60 16 5 YDC3500
YJM15-16 187 60 240×175 235×185 90 260 60 16 5 YDC3500
YJM15-17 197 63 250×185 265×200 100 280 60 16 5 YDC4000
YJM15-18 197 63 270×185 265×200 100 280 60 16 5 YDC4000
YJM15-19 197 63 270×185 265×200 100 280 60 16 5 YDC4000
YJM15-20 217 68 295×245 285×260 120 290 60 16 5 YDC5000
YJM15-21 217 70 295×245 285×260 120 290 60 16 5 YDC5000
YJM15-22 217 70 295×245 285×260 120 290 60 18 5 YDC5000
YJM15-23 237 73 310×260 320×260 120 320 60 18 5 YDC5000
YJM15-24 237 75 310×260 320×260 120 320 60 18 5 YDC5000
YJM15-25 237 78 310×300 320×300 120 330 70 18 5 YDC6500



Introduction of Bridge Tensioning Equipment Prestressed Anchor



GYM System is consist of stress-end anchor, fixed end anchor,anchor coupler and corrugated pipe.
It can be divided into GYM13, GYM15, GYM18 series of round anchors and GBM13, GBM15 series of flat anchors, we also have high-strength steel wire GYM5, GYM7 series anchor.

1. GYM15 applies to 15.2/15.24mm, 15.7mm pc strand.
2. GYM13 applies to 12.7mm, 12.5mm & 12.9mm pc strand.
3. GYM18 applies to 17.8mm pc strand.
4. GYM22 applies to 21.6/21.8mm pc strand.
5. GYM11 applies to 10.8mm pc strand.
6. GYM10 applies to 9.3mm, 9.53mm pc strand.
7. GYM7, GYM6, GYM5 apply to 7.0mm, 6.0mm, 5.0mm spiral ribbed pc wire.



Prestressing Pc Strand Stressing Anchorage Post Tension Anchor Head And Wedges 1

It has good self-fault performance, convenient construction and operation, high anchoring efficiency coefficient, and reliability.



Application fields of Post-tensioned Prestressed Anchor
(1). For Buildings: Housing, Commercial Buildings, High Rise Buildings.
(2). For Municipal Engineering: Railway, Highway, Over Head Fast Speed Way, Metro Way, High-speed Railway, etc.
(3). For Projects: Mining, Piling, Foundation, Slope and Rock Reinforcement, Hydropower Station, Anchoring Engineers, Water Conservancy Projects, Oil or Gas Tank, etc.



Prestressing Pc Strand Stressing Anchorage Post Tension Anchor Head And Wedges 2





Advantages of  Multi strands Anchors



(1). Type: Single-hole, Multi-hole; Circular, Flat.

(2). Parts: Anchor Ring/Plate, Wedge, Base Plate, etc.

(3). Have a high anchor efficiency and very good performance.

(4). We can manufacture all kinds of anchorage and prestressed equipment according to your requirement and drawings.

Prestressing Pc Strand Stressing Anchorage Post Tension Anchor Head And Wedges 3

Warm tips
1. The anchors should be kept properly, and there should be no rust, water, and other sundries in use.
2. Apply lubricant on the outer surface of the tool clip and the inner surface of the taper hole of the anchor plate before use, and often remove the debris on the surface of the clip.
3. Safety measures should be taken during tensioning, and no one can stand after the tensioning jack.
4. The anchor system should be used together and cannot be mixed with other systems.
