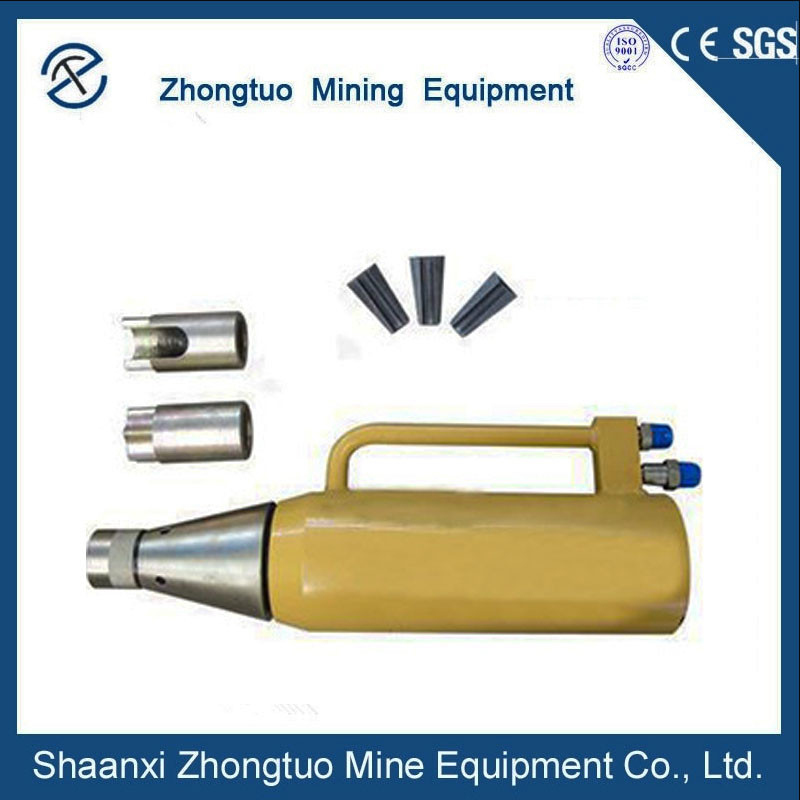

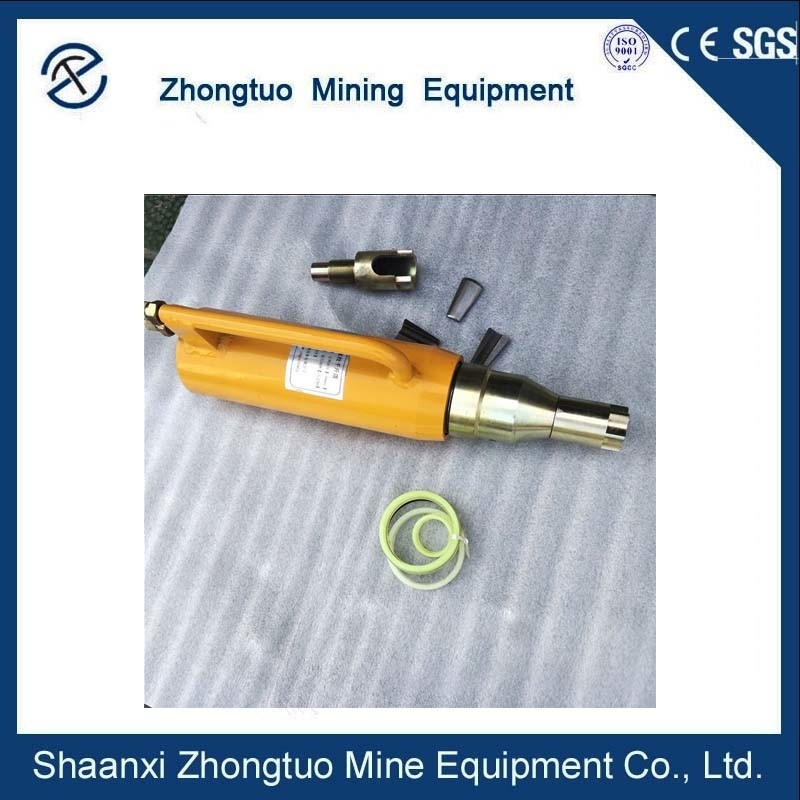

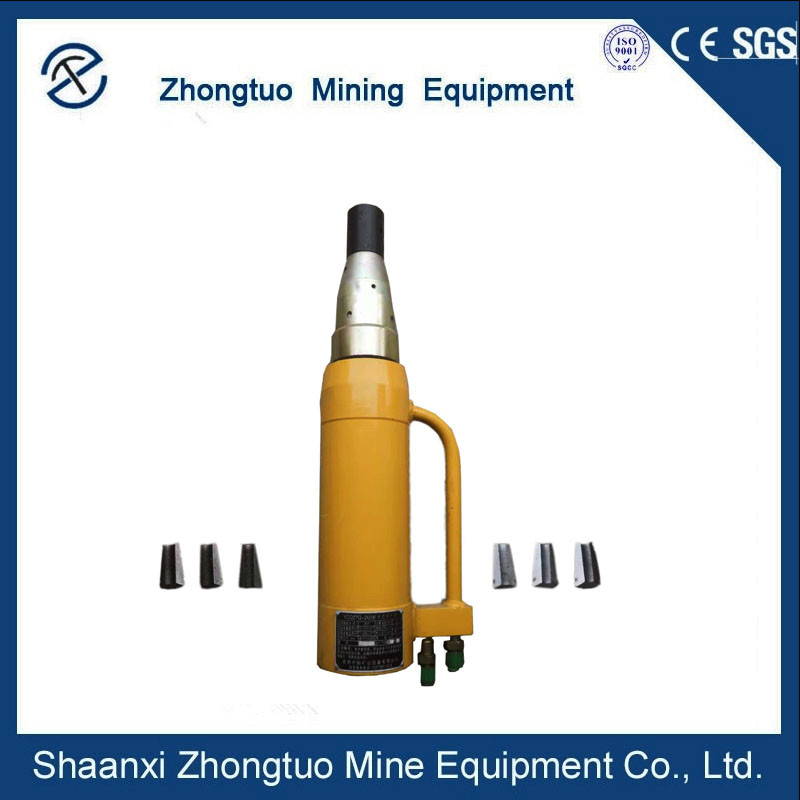

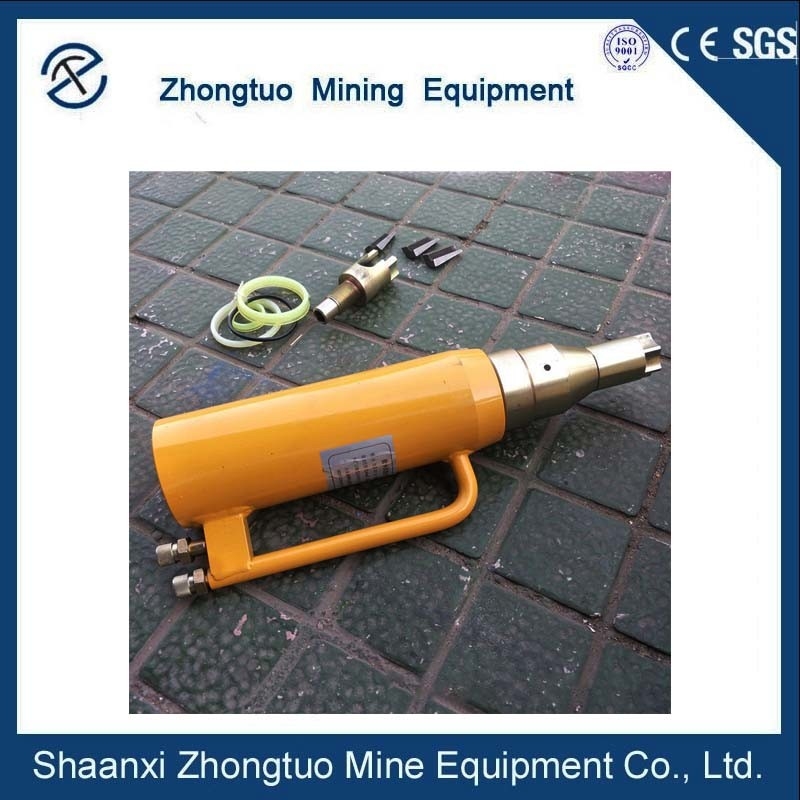

Monostrand Hydraulic Post Tensioning Jack Multi Mono Stran

Introducing the Monostrand Hydraulic Jack Post Tensioning Machine, a highly efficient and easy-to-use tool for tensioning and troubleshooting steel strands of various sizes. Equipped with multi mono strand jacks, this machine can be used for both single-hole tensioning and group anchor tensioning one by one. With its lightweight design, it is especially suitable for high-altitude or small-space operations.

The Mono Strand Jack is a versatile tool that can be used for a range of applications, including porous preloading, tensioning, and troubleshooting. It is compatible with high-strength steel wire bundles and steel strands of varying sizes, making it an invaluable asset for any construction or engineering project.

Installation and construction of this tool are incredibly convenient, thanks to its easy-to-use design. The tool's anchor plate and clamp piece can be installed more quickly and easily than the original post-card type, without the need for arbitrary rotations or radial directions. Additionally, the limit plate, tool anchor, and tension jack are separated and independent, ensuring better stability and enhanced performance.

With its 3-point piston guide, the Monostrand Hydraulic Jack Post Tensioning Machine offers superior stability compared to conventional post-card tensioning jacks. This series of tensioning tools has a short reserved length of steel strand, ensuring greater efficiency and enhanced ease of use.

Invest in the Monostrand Hydraulic Jack Post Tensioning Machine today and experience the benefits of a highly efficient and reliable tensioning tool that is perfect for a range of construction and engineering projects.

Description Datils

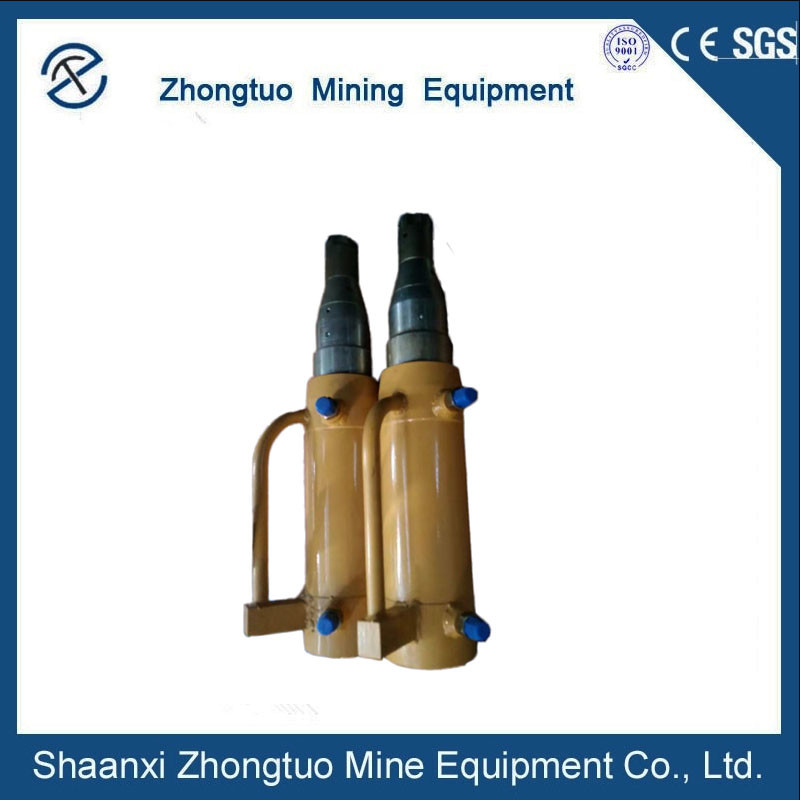

Multi Mono Strand Jacks can be used for single-hole tensioning and group anchor tensioning one by one. The mono jack is light in weight, easy to operate, high in efficiency, and has a short reserved length of steel strand, which is especially suitable for high-altitude or small-space operations.

Technical Parameters

Product Features
1. Mono strand jack is mainly used for single-hole tensioning. It can also be used for porous preloading, tensioning, and troubleshooting, and can be applied to high-strength steel wire bundles and steel strands of various sizes.
2. Installation and construction are very convenient: no need to rotate the arbitrarily installed working anchor; no need to rotate the radial direction of the jac; it is easier and faster to install the tool anchor plate and tool clamp piece than the original post-card type.
3. The limit plate, tool anchor and tension jack are separated and independent.
4. Better stability: the conventional post-card tensioning jack for a 3-point piston guide, this series of tensioning jacks for a 4-point piston guide; overcome the 3-point guide eccentric tensioning force often produces the phenomenon of pulling the cylinder scrap jack.
5. It overcomes the shortcomings of cumbersome and inconvenient installation of the overall front card tensioning jack at home and abroad.

Schematic diagram of Multi Stand Jack

1. Positioning nut 2.Plug 3. Oil cylinder 4. Piston 5. Heart Sleeve 6. Sealing plate 7. Compression ring

Jack's minimum working space

Minimal working space: B*C
Steel strand reserved: A
Installation size: E
Installation size: F

Bridge Tension Jacks

FAQ:
Q1: Whether the rig is used for rock holes or soil holes?
A1: Equipped with different drill bits according to the application object. Rock drilling rigs are equipped with round steel drill impact hammers and rock drill bits. The soil drilling rigs require a twist drill pipe and a three-blade drill bit.

Q2: How much tonnage can a bridge jack lift??
A2: The range is from 50 to 1000 tons, depending on the application needs we have the right choice for you.

Q3: How many meters is the connection between the jack and the oil pump?
A3: The factory standard is two meters. If you need longer, we will make it for you.

Q4: What is the difference between the hydraulic oil pump?
A4: For the tension jack, it is a 50 MPa 3 kW oil pump and a 60 MPa 4 kW oil pump.

Q5: What kind of packages does a set of anchors have?
A5: Anchor ring, clip, anchor pad, spiral rib.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long is the machine warranty?
A7: One year for the machine and provide technical support according to your needs.

Q8: How long will it take to arrange production?
A8: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.

Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.
