Hydraulic Lifting Strand Jack For Heavey Lifting Strand Jack Lifting System

Hydraulic Strand Jack with Synchronous Lifting System

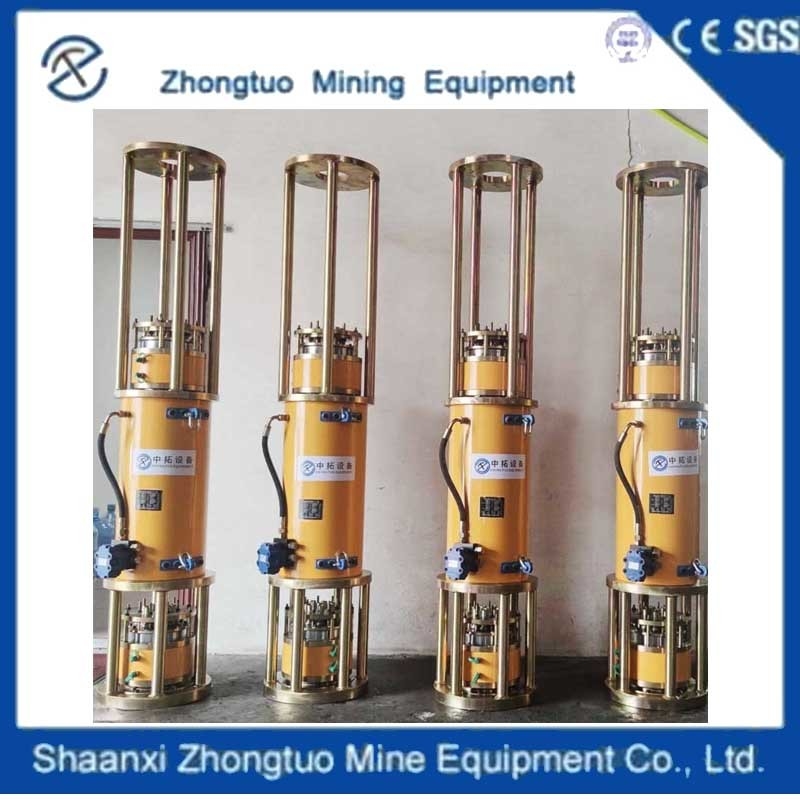

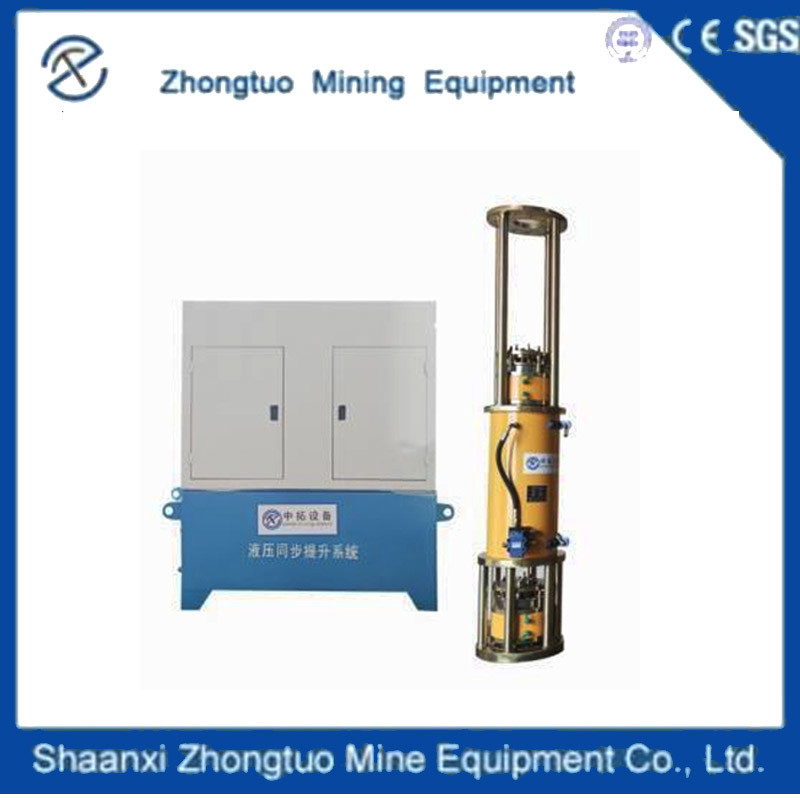

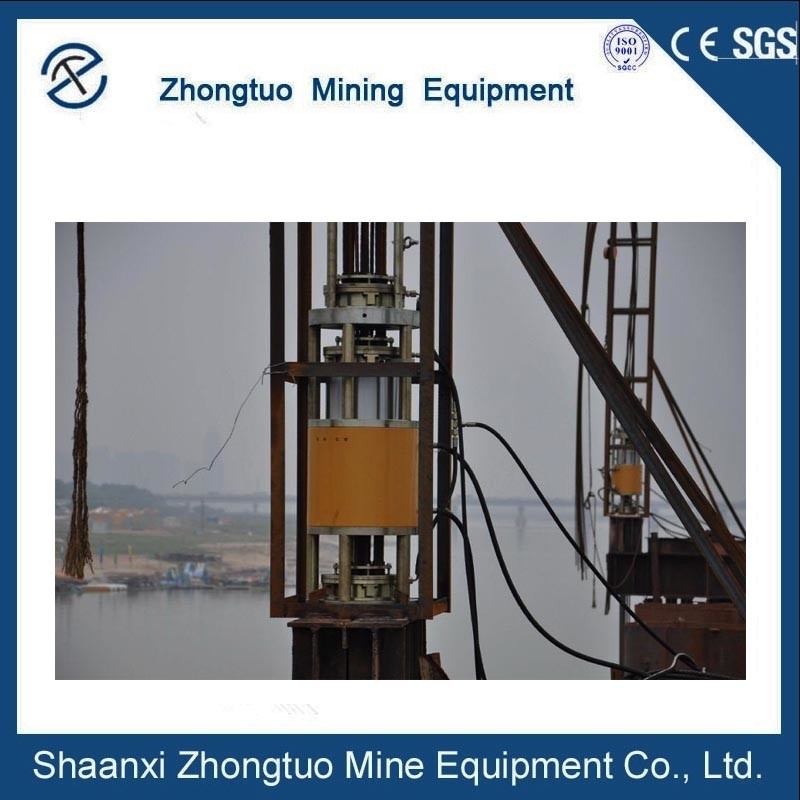

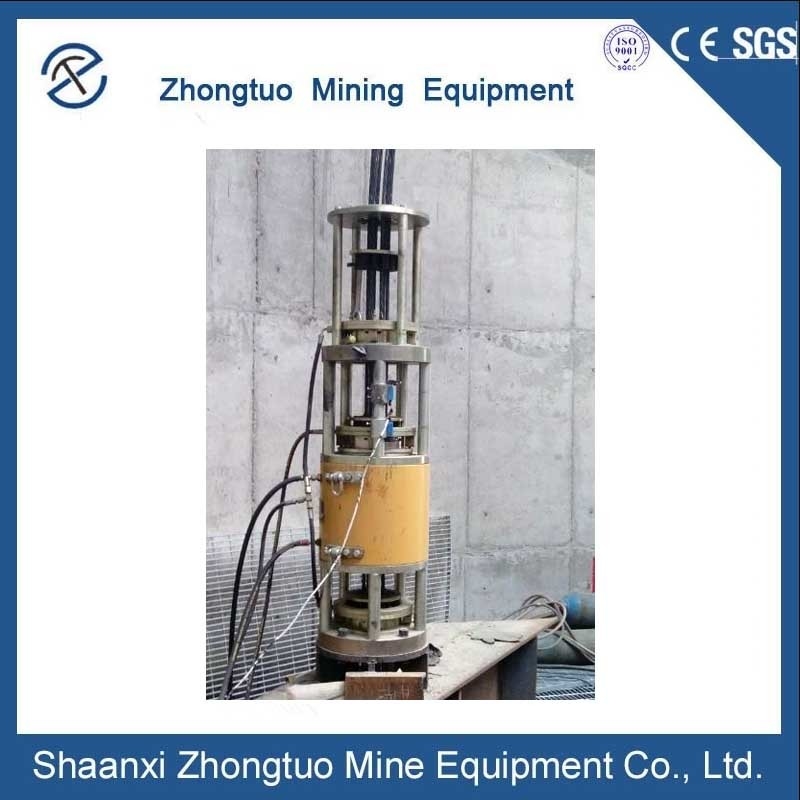

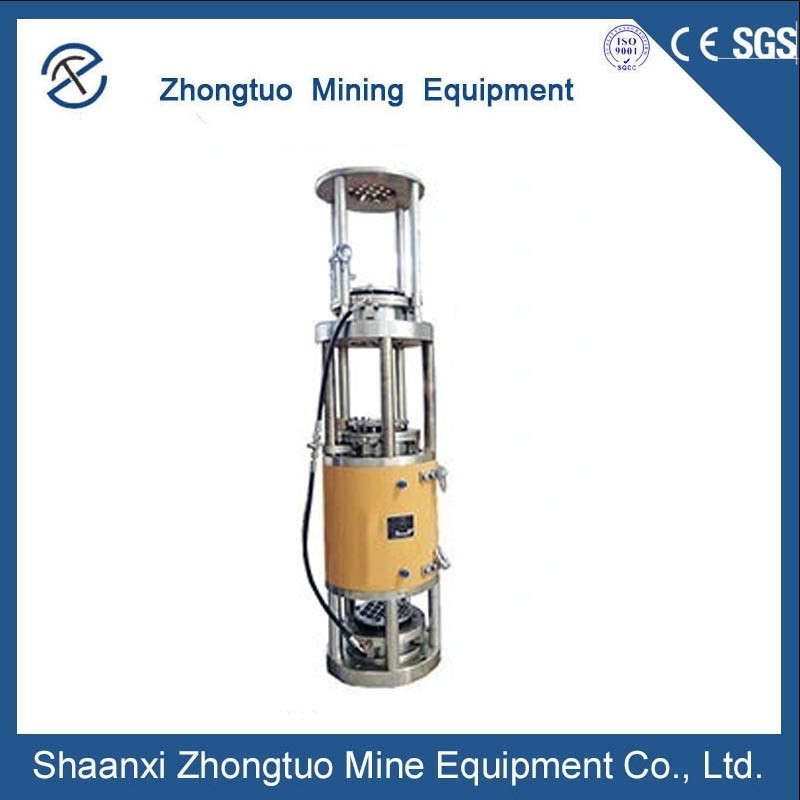

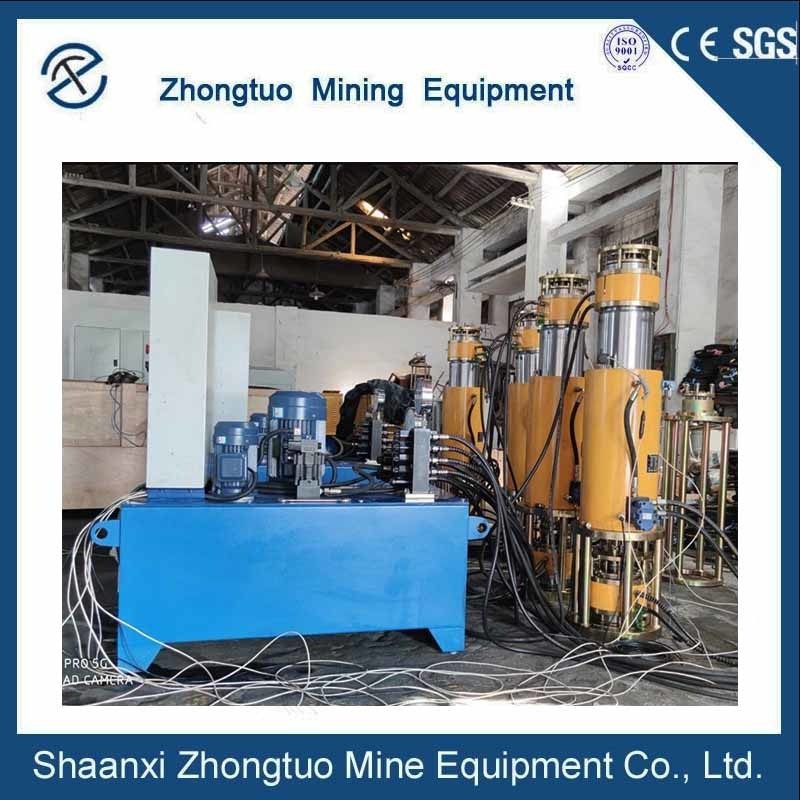

Product: Hydraulic Lifting Strand Jack for Heavy Lifting. The Hydraulic Strand Jack with Synchronous Lifting System is a specialized device that combines prestressed anchor anchoring technology with hydraulic jack technology. It operates by anchoring the steel strand through the anchor and then utilizing computer-controlled flow and oil pressure output from the hydraulic pump station. The device drives the jack piston to extend and contract, as measured by a displacement sensor device, thereby forcing the steel strand and the component to rise, descend, and continuously translate. This enables overall synchronous lifting and lowering movements. This versatile tool finds extensive use in the vertical hoisting or lowering of large-scale structural parts both domestically and internationally. Its applications include the lifting of steel box girders for bridges, the lowering of bridge piers and weirs, the hoisting or lowering of hanging blue, the hoisting of chimney steel inner cylinders for power plants or chemical plants, the hoisting of steam drums and stators for power plants, gantry crane installation, and aircraft maintenance. With its professional and precise performance, the Hydraulic Lifting Strand Jack is an indispensable asset for various heavy lifting operations.

The working principle:
To integrate the prestressed anchor anchoring technology with the hydraulic jack technology, anchor the steel strand through the anchor, and then use the computer to centrally control the flow and oil pressure output of the hydraulic pump station.
The device drives the jack piston to extend and contract (displacement sensor device)and forces the steel strand and the component to rise, descend, and continuously translate to realize the overall synchronous lifting (translation) and lowering movement.

Product parameters

Bridge Tension Jacks

FAQ:
Q1: Whether the rig is used for rock holes or soil holes?
A1: Equipped with different drill bits according to the application object. Rock drilling rigs are equipped with round steel drill impact hammers and rock drill bits. The soil drilling rigs require a twist drill pipe and a three-blade drill bit.

Q2: How much tonnage can a bridge jack lift??
A2: The range is from 50 to 1000 tons, depending on the application needs we have the right choice for you.

Q3: How many meters is the connection between the jack and the oil pump?
A3: The factory standard is two meters. If you need longer, we will make it for you.

Q4: What is the difference between the hydraulic oil pump?
A4: For the tension jack, it is a 50 MPa 3 kW oil pump and 60 MPa 4 kW oil pump.

Q5: What kind of packages does a set of anchors have?
A5: Anchor ring, clip, anchor pad, spiral rib.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long is the machine warranty?
A7: One year for the machine and provide technical support according to your needs.

Q8: How long will it take to arrange production?
A8: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.

Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.
