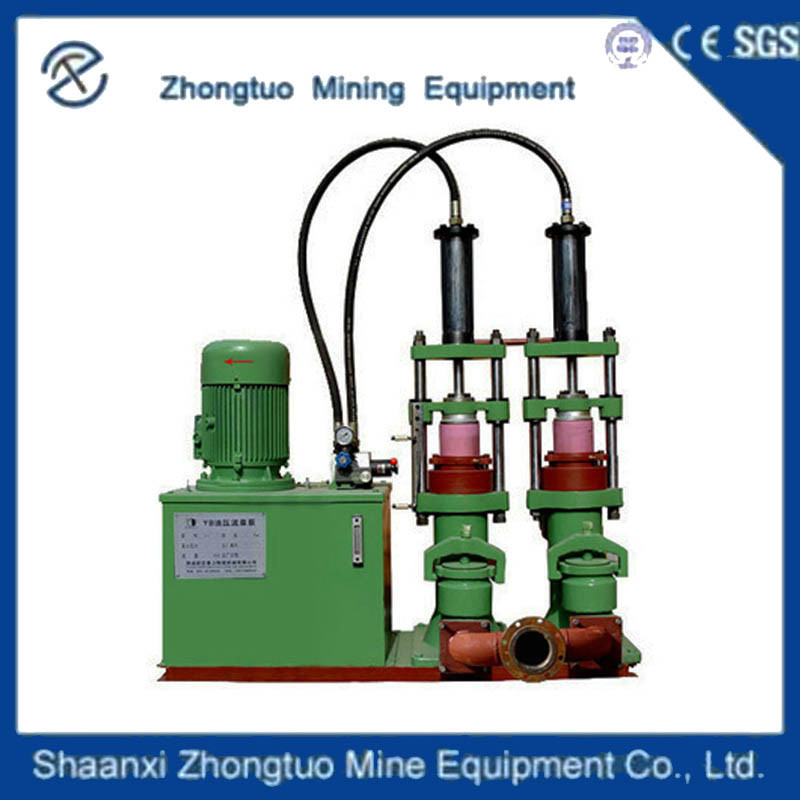

3 - 120m3/h Mud Pump With Plunger, Water Treatment Submersible Sewage Pump
-
Highlight
120m3/H Mud Pump
,Mud Pump With Plunger
,Submersible Sewage Plunger Pumps
-
Place of OriginCN
-
Brand NameZT
3 - 120m3/h Mud Pump With Plunger, Water Treatment Submersible Sewage Pump
Description:
Yb Slurry pump is commonly used in exploration, mining metallurgy, petroleum, chemical, construction, and other industries. It is used for transferring abrasive sludge and flushing water. ordinary type is a ceramic plunger and ceramic piston type.
Feature:
1. it can handle abrasive sludge and is ideal for high viscosities.
2. it is a variable pump with seven familiar series of YB85-YB400.
3. Flow can be from 3-120m3/h, and the pressure of the special pump for filter press is 0-2Mpa.
4. special plunger pumps can be designed and manufactured according to customer needs.
The High Pressure Sewage Sludge Treatment Hydraulic Slip Mud Pump is a versatile pump that can be used in a variety of industries, including exploration, mining metallurgy, petroleum, chemical, construction, and more. This pump is specifically designed to handle abrasive sludge and is ideal for high viscosities. It features a ceramic plunger and ceramic piston type and is available in seven familiar series of YB85-YB400. The flow can be adjusted from 3-120m3/h, and the pressure of the special pump for filter press is 0-2Mpa.
In addition, special plunger pumps can be designed and manufactured according to customer needs. The pump comes equipped with various features, including Mud Pump, Plunger Pump, Water Treatment, Submersible Sewage Pump, Slurry Pump, Water Pump, pressure washer pump, hydraulic pump, car washer pump, water purifier, spare parts, pump, chemical, filter, engine parts, water filter, high pressure pump, submersible pump, centrifugal pump, and oil pump.
To select a suitable type and model, customers should consider the working conditions and medium, with no particles larger than 0.5 mm. With its wide range of features and adaptable design, the High Pressure Sewage Sludge Treatment Hydraulic Slip Mud Pump is the perfect solution for transferring abrasive sludge and flushing water in a variety of industries.
Yb Hydraulic Mud Pump Parameter
| Model | Pressure range(Mpa) | Rated flow(m³/h) | Effective stroke(mm) |
Motor power(kW) | Inlet(mm) | Outlet(mm) | Weight(KG) |
| YB-85 | 0.1-2.5 MPa | 3 | 220 | 4 | 58 | 58 | 550 |
| YB-140 | 0.1-2.5 MPa | 11 | 220 | 11 | 89 | 76 | 950 |
| YB-200 | 0.1-2.5 MPa | 19 | 220 | 18.5 | 108 | 89 | 1250 |
| YB-250 | 0.1-2.5 MPa | 30 | 220 | 22 | 133 | 108 | 1750 |
| YB-300 | 0.1-2.5 MPa | 45 | 220 | 30 | 159 | 133 | 2200 |
| YB-300 (prolonged) |
0.1-2.5 MPa | 60 | 350 | 37 | 159 | 133 | 2850 |
| YB-350 | 0.1-2.5 MPa | 100 | 420 | 55 | 219 | 159 | 5250 |
| YB-400 | 0.1-2.5 MPa | 120 | 420 | 55 | 219 | 219 | 5850 |
| YH-85 | 0.1-2.5 MPa | 3 | 220 | 2.2 | 58 | 58 | 550 |
| YH-140 | 0.1-2.5 MPa | 11 | 220 | 5.5 | 89 | 76 | 950 |
| YH-200 | 0.1-2.5 MPa | 19 | 220 | 7.5 | 108 | 89 | 1250 |
| YH-250 | 0.1-2.5 MPa | 30 | 220 | 11 | 133 | 108 | 1750 |
| YH-300 | 0.1-2.5 MPa | 45 | 220 | 18.5 | 159 | 133 | 2200 |
| YH-300 (prolonged) |
0.1-2.5 MPa | 60 | 350 | 22 | 159 | 133 | 2850 |
| YH-350 | 0.1-2.5 MPa | 100 | 420 | 37 | 219 | 159 | 5250 |
| YH-400 | 0.1-2.5 MPa | 120 | 420 | 37 | 219 | 219 | 5850 |
How to select a suitable type and model:
Q1: Whether the rig is used for rock holes or soil holes?
A1: Equipped with different drill bits according to the application object. Rock drilling rigs are equipped with round steel drill impact hammers and rock drill bits. The soil drilling rigs require a twist drill pipe and a three-blade drill bit.
Q2: How much tonnage can a bridge jack lift??
A2: The range is from 50 to 1000 tons, depending on the application needs we have the right choice for you.
Q3: How many meters is the connection between the jack and the oil pump?
A3: The factory standard is two meters. If you need longer, we will make it for you.
Q4: What is the difference between the hydraulic oil pump?
A4: For the tension jack, it is a 50 MPa 3 kW oil pump and 60 MPa 4 kW oil pump.
Q5: What kind of packages does a set of anchors have?
A5: Anchor ring, clip, anchor pad, spiral rib.
Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)
Q7: How long is the machine warranty?
A7: One year for the machine and provide technical support according to your needs.
Q8: How long will it take to arrange production?
A8: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.
Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.
Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.
Why you choose us:
1. We are a real factory offering products and providing free technical advice.
2. Company in business for many years and served Over 50 countries' customers.
3. All machines with CE, ISO, and SGS certificates. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
Our products are sold all over the world, you can rest assured.
