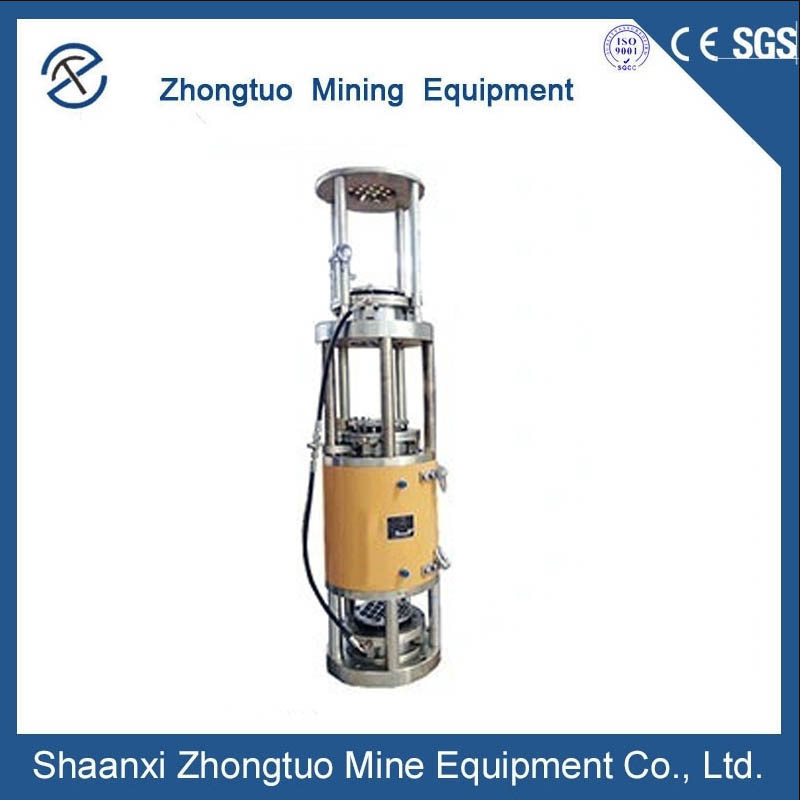

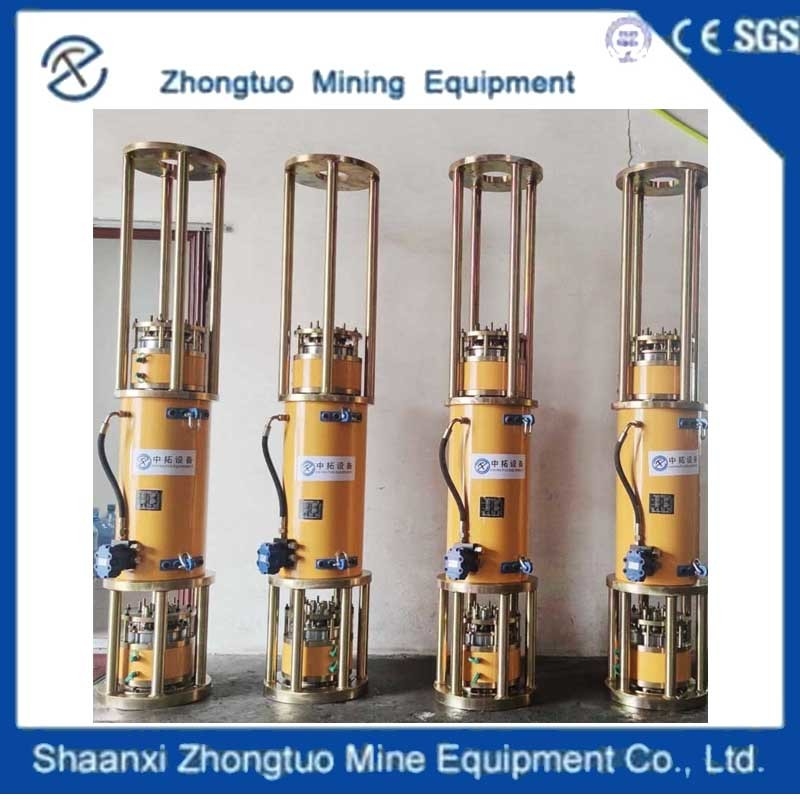

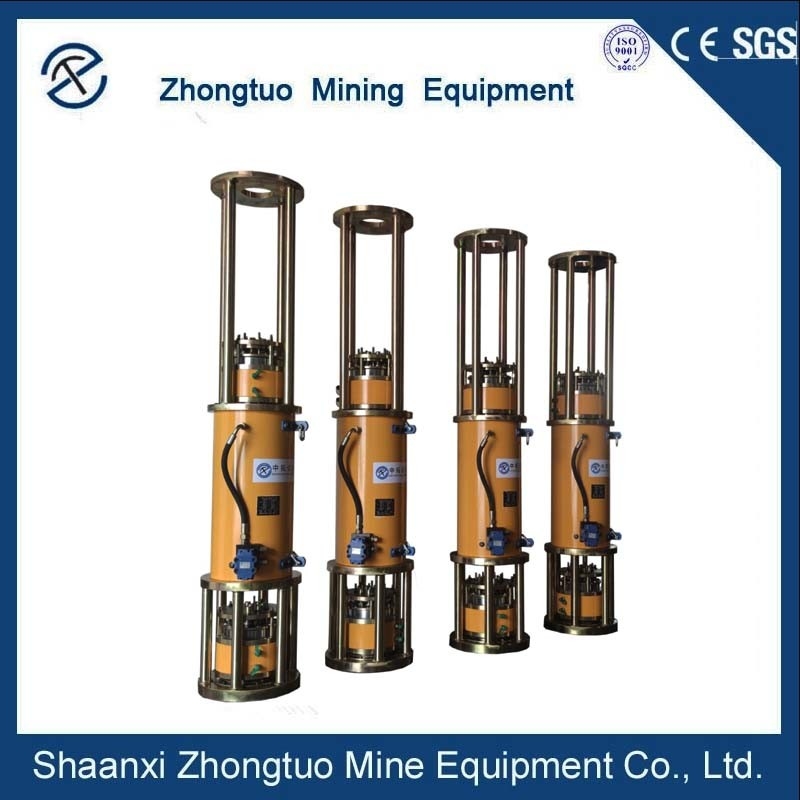

Bridge Chimney Synchronous Lifting System Hydraulic Lifting Jack For Chimney Steel Inner Cylinders

Product: Bridge Chimney Synchronous Lifting System Hydraulic Lifting Jack
The Bridge Chimney Synchronous Lifting System Hydraulic Lifting Jack is a highly efficient and reliable hydraulic lifting system specifically designed for the vertical hoisting or lowering of large-scale structural parts. This versatile system finds widespread application in various fields, both domestically and internationally.

With its robust construction, the hydraulic lifting jack is capable of handling heavy-duty tasks such as the hoisting of steel box girders for bridges, the lowering of bridge piers and weirs, the hoisting or lowering of hanging blue, and the lifting of chimney steel inner cylinders in power plants or chemical plants. Additionally, it is suitable for the hoisting of steam drums and stators in power plants, as well as gantry crane installation, aircraft maintenance garages, gymnasiums, and other steel structures.

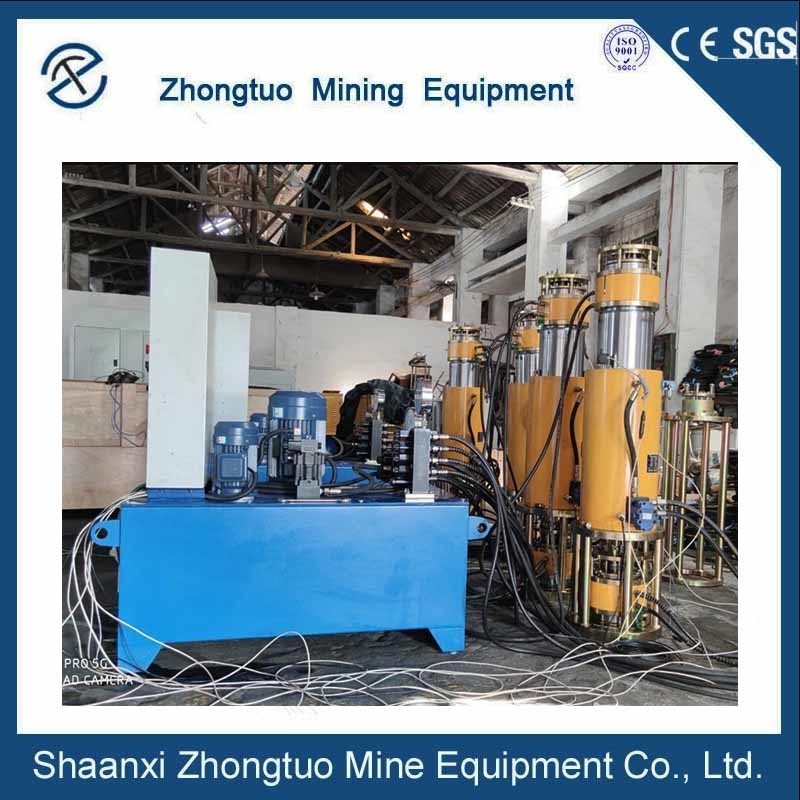

The working principle of this hydraulic lifting jack is based on the integration of prestressed anchor anchoring technology with hydraulic jack technology. By anchoring the steel strand through the anchor, and with the aid of a computer-controlled hydraulic pump station, the system centrally controls the flow and oil pressure output. This control allows the device to drive the jack piston to extend and contract, thereby ensuring precise displacement through a displacement sensor device. Consequently, the hydraulic lifting jack enables the smooth and continuous translation of the steel strand and the structural component, facilitating efficient lifting or lowering operations.

Experience the excellence of the Bridge Chimney Synchronous Lifting System Hydraulic Lifting Jack, a cutting-edge solution for vertical hoisting or lowering of super-high and super-heavy large-scale structures. Its professional and rigorous design ensures reliability and precision in every application. Choose this hydraulic lifting jack for your demanding lifting needs, and witness its outstanding performance in action.


Product parametersTechnical Parameter of Synchronous lifting jack

Applicable fields
Widely used in the vertical hoisting or lowering of large-scale structural parts at home and abroad, such as the hoisting of steel box girders of bridges, the lowering of bridge piers and weirs, the hoisting or lowering of hanging blue, the hoisting of chimney steel inner cylinders of power plants or chemical plants, the hoisting of steam drums and stators of power plants, Gantry crane installation, aircraft maintenance garage, gymnasium, and other steel structures and other super-high and super-heavy large-scale structures.

FAQ:
Q1: Whether the rig is used for rock holes or soil holes?
A1: Equipped with different drill bits according to the application object. Rock drilling rigs are equipped with round steel drill impact hammers and rock drill bits. The soil drilling rigs require a twist drill pipe and a three-blade drill bit.

Q2: How much tonnage can a bridge jack lift??
A2: The range is from 50 to 1000 tons, depending on the application needs we have the right choice for you.

Q3: How many meters is the connection between the jack and the oil pump?
A3: The factory standard is two meters. If you need longer, we will make it for you.

Q4: What is the difference between the hydraulic oil pump?
A4: For the tension jack, it is a 50 MPa 3 kW oil pump and a 60 MPa 4 kW oil pump.

Q5: What kind of packages does a set of anchors have?
A5: Anchor ring, clip, anchor pad, spiral rib.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long is the machine warranty?
A7: One year for the machine and provide technical support according to your needs.

Q8: How long will it take to arrange production?
A8: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.

Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.


Why you choose us:

1. We are a real factory offering products and providing free technical advice.
2. Company in business for many years and served Over 50 countries' customers.
3. All machines with CE, ISO, and SGS certificates. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
