Intelligenct Solar Panel Cleaning Machine Customized Solutions 100% Quality Assurance
-
Dimension1200*700*240mm
-
Power ModeLithium Battery
-
Design Life6 Years
-
Suitable For Temperature-10~50°C
-
Control ModeFully Automatic
-
Control PlatformAPP , Applet, Web
-
Place of OriginChina
-
Brand NameZT
-
CertificationCE, ISO, SGS
-
Model NumberZTZD-20
-
Minimum Order Quantity1 set
-
Pricenegotiable
-
Delivery Time1 week
-
Payment TermsT/T, L/C, Western Union, MoneyGram, D/P, D/A
Intelligenct Solar Panel Cleaning Machine Customized Solutions 100% Quality Assurance

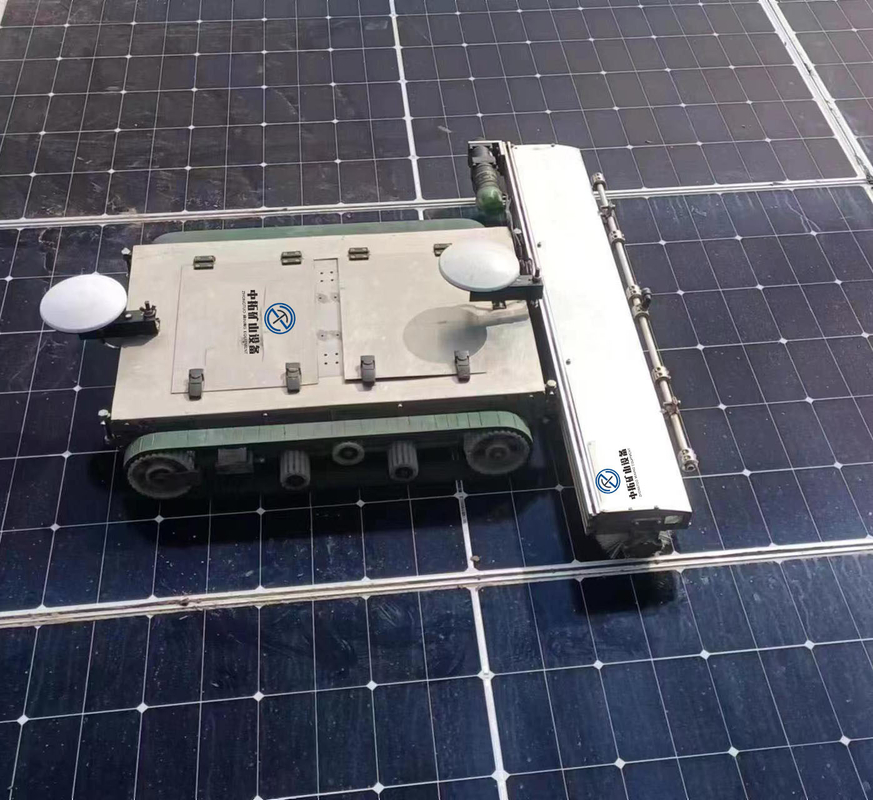

The Intelligent Solar Panel Cleaning Machine is mainly composed of the cleaning machine body, data transmission system, positioning system, power system, battery, operation APP and cloud platform monitoring system.
The robot adopts a fully intelligent, fully automated, unattended cleaning mode, which is applied to the cleaning operation and maintenance of photovoltaic modules in photovoltaic power stations.
Through high-precision satellite positioning, the intelligent cleaning robot has the functions of autonomous navigation, autonomous positioning, autonomous cleaning and autonomous charging. The cleaning work can be completed without manual intervention under special circumstances.
This smart solar panel cleaner kit has the following characteristics:
1.Full intelligence, automation
2.Realize unmanned
3. High cleaning efficiency
4.Turning radius is very small, no cleaning dead Angle
5.Waterproof, dustproof, anti-fog grade is high
6.Support mobile phone APP/ small program or computer web side remote real-time view of the machine running status
7.It can be customized according to your requirements
8.It can be switched to manual remote control mode under special circumstances
9.Highly scalable
| Products model: |
ZTZD-20 |
Operating temperature | -10-50°C |
| Length, width and height |
1200*700*240mm |
Battery endurance | 6 hours |
| Protection class | IP65 | Power source: | lithium battery |
| Operating power | 200w | Control platform | APP , Applet, Web |
| Design life : | 6 years | Battery capacity: | 40AH |
| Controller Industrial | PC (self-developed) | Control mode | Fully automatic, remote control |
| Communication protocol | RS-485 | ||
| Working mode | |||
|
Clean mode |
No water |
Cleaning speed : | 0-20 m/min (adjustable) |
| Applicable temperature: | -10-50°C |
Cleaning efficiency |
1200 m/h |
| Maximum longitudinal slope |
<20° |
Maximum lateral slope |
<15° |
| Component surface coverage |
120% |
Span distance |
≤600mm |
|
RTK horizontal positioning accuracy |
1.0cm + 1ppm (RMS) |
Anti-drop auxiliary |
support |
|
Visual system |
optional |
4G communication module |
support |
|
Night operation |
support | ||
