Post Tensioning Working Anchors For Prestressing, Multi-Gauge Anchors Round And Rectangle Type
-
Highlight
Round Multi-Gauge Anchors
,Prestressing Post Tensioning Anchors
,Multi-Gauge Post Tensioning Working Anchors
-
Head TypeRound
-
ShapeRound And Rectangle
-
Diameter12.7-17.8mm
-
Type1Use One Time
-
Type2Repeated Use
-
SpecificationYM12.7, YM13, YM18
-
Supply Ability20000pieces/Month
-
MaterialCast Steel
-
Place of OriginChina
-
Brand NameZT
-
CertificationCE, ISO, SGS
-
Pricenegotiable
Post Tensioning Working Anchors For Prestressing, Multi-Gauge Anchors Round And Rectangle Type
Basic Info. of Our Company
For over 20 years, we have focused on producing high-quality mechanical equipment and construction goods. Especially having rich expertise with mining equipment, the main items include:
Ultra Large Rock Splitter
Submersible Drilling Rig
Spraying Machine
Grinding Machine
Specification of Anchors
Head Type:Round
Shape:Round and Rectangle
Diameter:12.7-17.8mm
Type1:Use One Time
Type2:Repeated Use
Transport Package:Wooden Box
Specification:YM12.7, YM13, YM18
1. The anchoring system is primarily applicable to the strength of 1860MPA-2000Mpa and below the levels of 12.7mm, 12.9mm, 15.24mm, 15.7mm, and 17.8mm, as the standard strength of steel strand of 5mm-7mm high strength steel beam 1670Mpa. Wide range of possibilities, YM is appropriate for the construction of tension anchor systems between 0-12000KN, with a steel strand range of 55.
2. Post tension anchor Including the M series steel wire tension and anchor system: M13 (anchorage for 12.7-12.9mm steel strand and anchorage (M15) used in 15.2-15.7mm steel wire) with YCW series Jack and ZB4-500 type electric pump for tension; for flat structures BM13 and BM15 flat anchorage for cyclic stress; and the structure of the HM13 and HM15 ring anchor.
Description of Anchors used in high-rise buildings

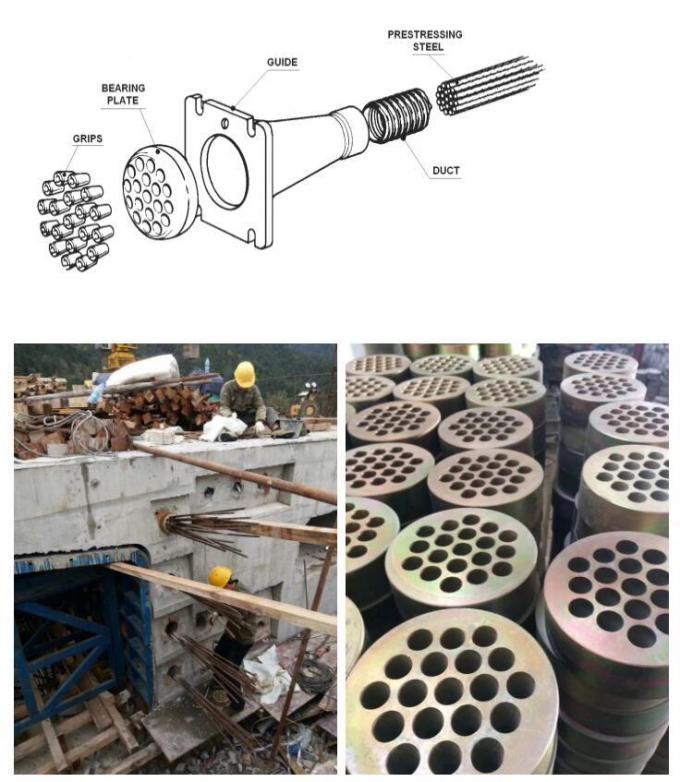

Anchorages convey the post-tension anchor's prestressing pressures to concrete structures. Anchorage for the Post Tensioning system is often made out of steel plates with a number of conical holes, conical grips, and a guide (trumpet). The Trumpet or Guide connects the ducts and offers a flat surface on which to locate the Bearing Plate. As illustrated in the figure below:
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
