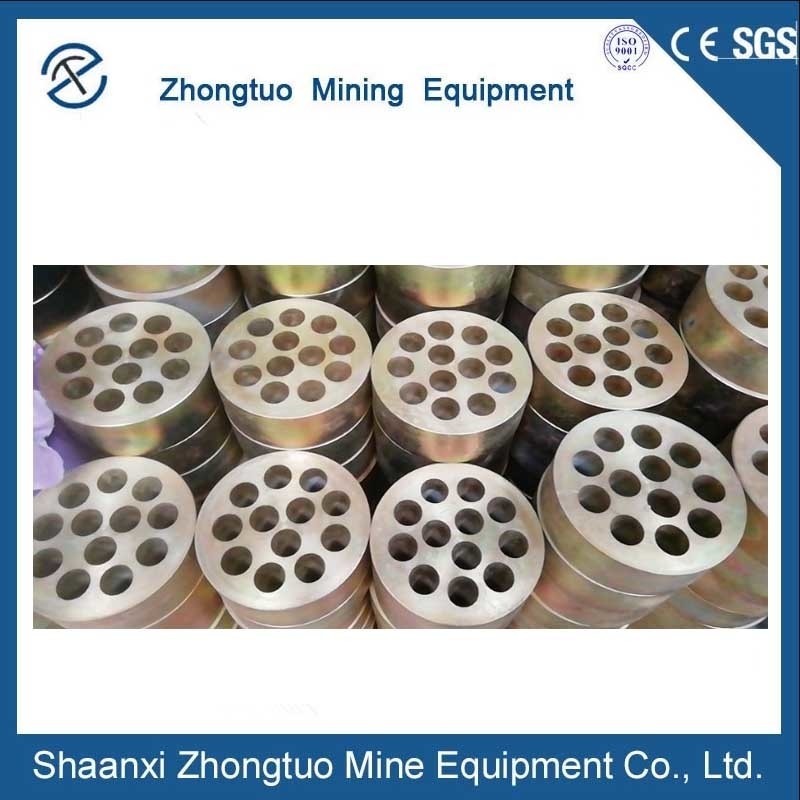

Multi Holes Round Rectangle Anchor Accessories For Bridge Construction Various Sizes

The Round Rectangle Multi-Holes Anchor for Stressing in Bridge Construction is a high-quality anchor fitting intended for post tensioning in bridge construction.

This anchor has several features, including an anchor fitting, a wedge anchor, a post tension anchor, a hose clamp, and automotive parts. The major purpose of this anchor is to deliver prestressing pressures to concrete structures via its anchorages. The anchorage system consists of steel plates with numerous conical holes, conical grips, and a guide (trumpet). The trumpet or guide connects the ducts and offers a flat surface to locate the bearing plate.

This anchor is available in a variety of sizes, including YM12.7, YM13, and YM18, depending on the diameter of the PC strand. It is ideal for post tensioning systems with a strength of 1860MPA-2000Mpa or less, with standard strand strengths ranging from 12.7mm to 17.8mm. With a variety of configurations, the YM anchor is appropriate for tension anchor systems built for loads ranging from 0 to 12000KN, with a steel strand range of 55. This Round Rectangle Multi-Hole Anchor for Stressing in Bridge Construction is an excellent solution for experts seeking a dependable and efficient anchor fitting for their post-tensioning projects.

Anchorages convey the post-tension anchor's prestressing pressures to concrete structures. Anchorage for the Post Tensioning system is often made out of steel plates with a number of conical holes, conical grips, and a guide (trumpet). The Trumpet or Guide connects the ducts and offers a flat surface on which to locate the Bearing Plate. As illustrated in the figure below:
