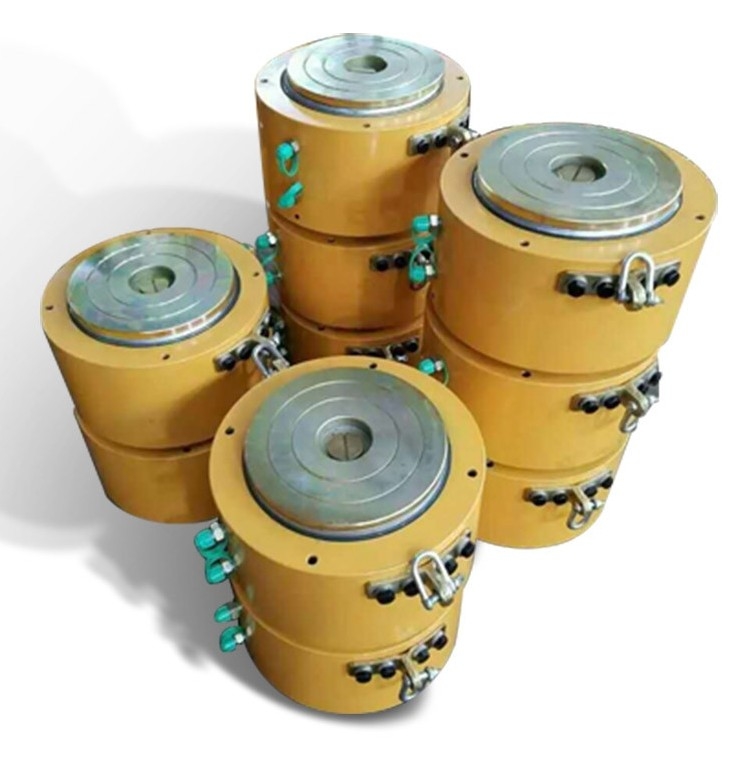

Lock Nut Hollow Hydraulic Cylinder Jack 5 - 150 Tons Large Tonnage Synchronous Jack

Lock Nut Hollow Hydraulic Cylinder Jack 5 - 150 Tons Large Tonnage Synchronous Jack

Products - Strand Jack System
  • Highlight

    Hollow Hydraulic Cylinder Synchronous Jack

    ,

    Large Tonnage Synchronous Jack

    ,

    Hollow Lock Nut Hydraulic Jack

  • Power Source
    Hydraulic
  • Max Height
    100-150mm
  • Tonnage
    5-150
  • Stroke
    6.35-16
  • Specification
    3 Cubic Meters
  • Supply Ability
    50piecces/Month
  • Type
    Hydraulic Jack
  • Capacity (Load)
    0-150t
  • Place of Origin
    CN
  • Brand Name
    ZT
  • Certification
    CE, ISO and SGS
  • Price
    negotiable
  • Delivery Time
    1-2 weeks
  • Payment Terms
    T/T, D/P, D/A, L/C, Western Union, MoneyGram

Lock Nut Hollow Hydraulic Cylinder Jack 5 - 150 Tons Large Tonnage Synchronous Jack

  • Lock Nut Hollow Hydraulic Cylinder Jack 5 - 150 Tons Large Tonnage Synchronous Jack
Get Price Contact Now



Introduction of lock nut hydraulic jack


Large tonnage synchronous jack jack 5-150 tons.

Hydraulic jack jack jack precise synchronization control.

And fexible lifting, durable, easy to operate and easy maintenance.
Lock Nut Hydraulic Jack In the bridge erection project, an electricpumping station can be 4 to 32 (or more) synchronous jack jack toprovide power, synchronous jacking to achieve the bridge supportpad to install or replace.



Lock Nut Hollow Hydraulic Cylinder Jack 5 - 150 Tons Large Tonnage Synchronous Jack 0

Model and specific parameters of lock nut hydraulic jack



Model tonnage on Stroke
mm		 Body height mm Stretch height  mm Cylinder outside diameter D(mm) Weight  Kg Maximum working pressure Mpa(bar)
DS-50×4 5 6.35 40 46.35 64×52 1.0 40(400)
DS-100×4 10 11.2 48 59.2 83×66 1.4 63 (630)
DS-200×4 20 11.2 56 67.2 100×84 3.1 63 (630)
DS-300×4 30 12.7 66 78.7 128×105 4.5 63 (630)
DS-500×4 50 16 75 91 145×128 6.8 63 (630)
DS-750×4 75 16 86 102 188×158 11.4 63 (630)
DS-1000×4 100 16 96 112 208×182 14.5 63 (630)
DS-1500×4 150 16 106 122 250×220 26.3 63 (630)

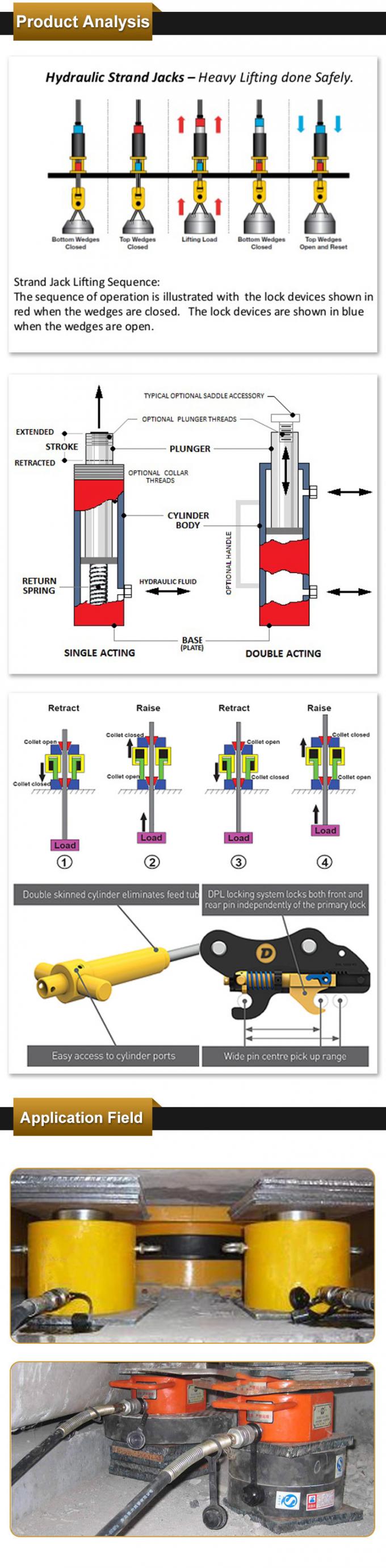

Hydraulic Strand Jacks-Heavy Lifting done Safely.



Strand Jack Lifting Sequence:The sequence of operation is illustrated with the lock devices shown inred when the wedges are closed. The lock devices are shown in bluewhen the wedges are open.



Hollow Hydraulic Cylinder Bridge Lock Nut Hydraulic Jack
