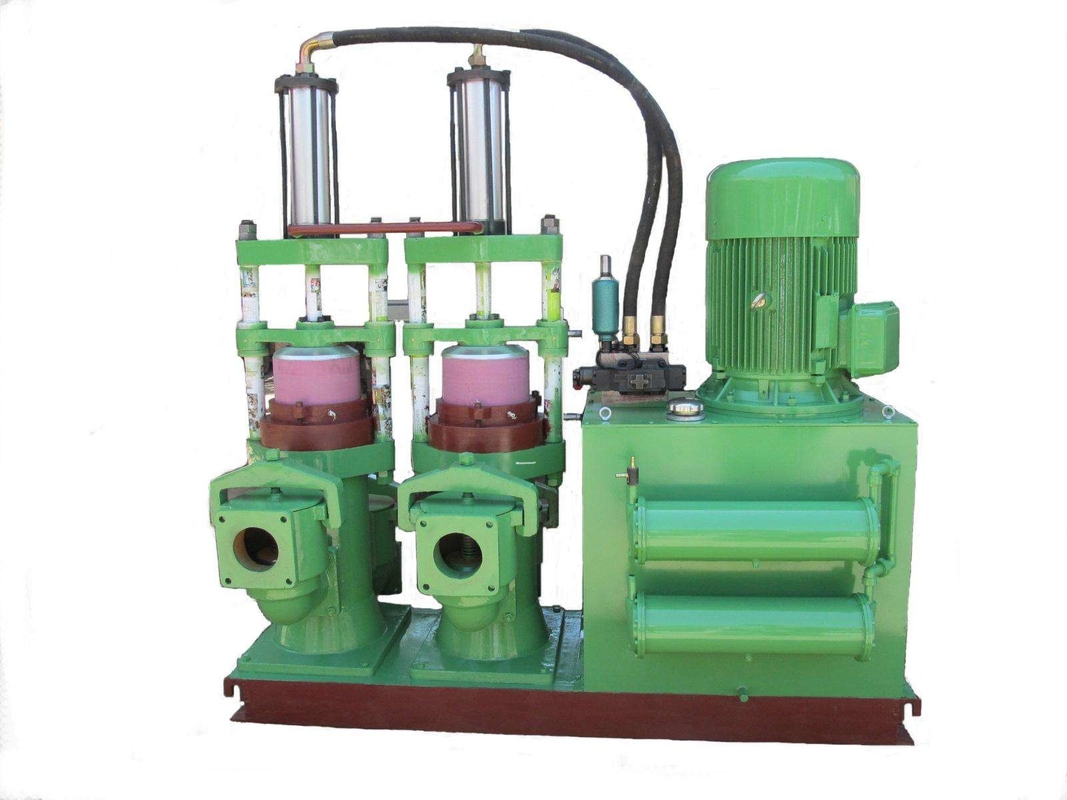

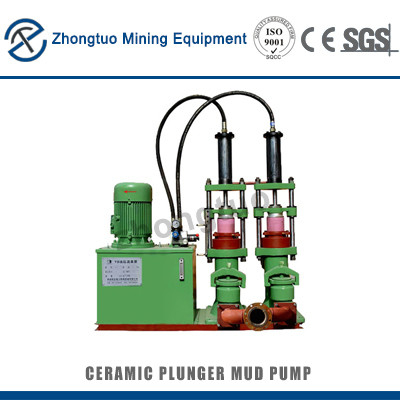

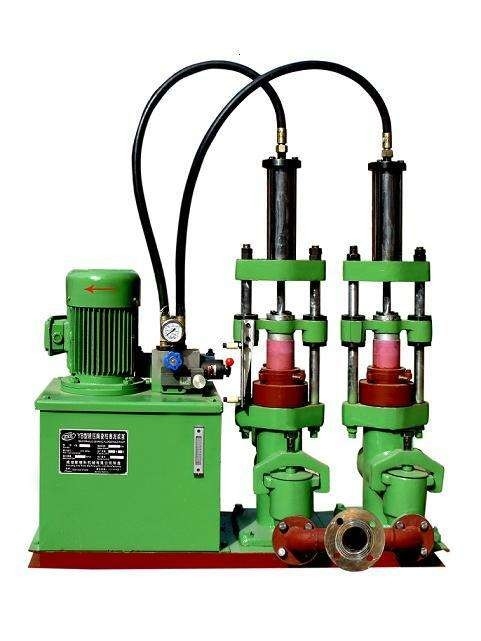

Sludge Treatment Ceramic Plunger Pump Yb High Pressure For Industrial Applications
-
Highlight
High Pressure Ceramic plunger pump
,Sludge Treatment Ceramic plunger pump
,Industrial Ceramic plunger pump
-
ControlAutomatic
-
CylinderSingle
-
PressureHigh
-
StrokeLong
-
StructureCompact
-
NoiseLow
-
MotorHigh-Efficiency
-
DurabilityHigh
-
Place of OriginChina
-
Brand NameZHONGTUO
-
CertificationCE ISO
-
Model NumberYB350
-
Minimum Order Quantity1
-
Pricenegotiated
-
Packaging DetailsWooden Cases
-
Delivery Time7-15 Days
-
Supply Ability10000 set/month
Sludge Treatment Ceramic Plunger Pump Yb High Pressure For Industrial Applications
Description:
Yb Slurry pump is commonly used in exploration, mining metallurgy, petroleum, chemical, construction, and other industries. It is used for transferring abrasive sludge and flushing water. ordinary type is a ceramic plunger and ceramic piston type.
Feature:
1. it can handle abrasive sludge and is ideal for high viscosities.
2. it is a variable pump with seven familiar series of YB85-YB400.
3. Flow can be from 3-120m3/h, and the pressure of the special pump for filter press is 0-2Mpa.
4. special plunger pumps can be designed and manufactured according to customer needs.
The Yb High Pressure Chemical Mud Pumpindustrial Mud Pump Hydraulic Slip Mud Pump is a high-quality and efficient pump designed for various industrial applications. When selecting the suitable type and model, it is important to consider the specific working conditions and medium.
To ensure optimal performance, it is crucial that no particles larger than 0.5 mm are present in the medium conveyed by the plunger pump. Failure to do so may result in work failure. For neutral materials, an ordinary gray cast iron plunger pump is recommended, while materials with iron pollution should be paired with a 304 stainless steel plunger pump. Strong acid or alkaline corrosion requires the use of an anti-corrosion vinyl plunger pump.
When determining the flow range, it is essential to consider the nominal flow rate of the plunger pump model, which represents the rated flow. It is advisable to include an appropriate margin range during application to ensure a reasonable flow range.
Additionally, it is necessary to determine the applicable pressure level. The rated pressure of the plunger pump can reach 2.0Mpa. When matching the pump with a filter press, a variable frequency pump, or a full-frequency automatic variable plunger pump should be the first choice. For pulping purposes to reduce waste, a low-pressure pump is recommended.
By carefully considering these factors and parameters, the Yb High Pressure Chemical Mud Pumpindustrial Mud Pump Hydraulic Slip Mud Pump is an excellent choice for various industrial applications. Its reliability, performance, and versatility make it a valuable asset to any operation.
| Model | Pressure range(Mpa) | Rated flow(m³/h) | Effective stroke(mm) |
Motor power(kW) | Inlet(mm) | Outlet(mm) | Weight(KG) |
| YB-85 | 0.1-2.5 MPa | 3 | 220 | 4 | 58 | 58 | 550 |
| YB-140 | 0.1-2.5 MPa | 11 | 220 | 11 | 89 | 76 | 950 |
| YB-200 | 0.1-2.5 MPa | 19 | 220 | 18.5 | 108 | 89 | 1250 |
| YB-250 | 0.1-2.5 MPa | 30 | 220 | 22 | 133 | 108 | 1750 |
| YB-300 | 0.1-2.5 MPa | 45 | 220 | 30 | 159 | 133 | 2200 |
| YB-300 (prolonged) |
0.1-2.5 MPa | 60 | 350 | 37 | 159 | 133 | 2850 |
| YB-350 | 0.1-2.5 MPa | 100 | 420 | 55 | 219 | 159 | 5250 |
| YB-400 | 0.1-2.5 MPa | 120 | 420 | 55 | 219 | 219 | 5850 |
| YH-85 | 0.1-2.5 MPa | 3 | 220 | 2.2 | 58 | 58 | 550 |
| YH-140 | 0.1-2.5 MPa | 11 | 220 | 5.5 | 89 | 76 | 950 |
| YH-200 | 0.1-2.5 MPa | 19 | 220 | 7.5 | 108 | 89 | 1250 |
| YH-250 | 0.1-2.5 MPa | 30 | 220 | 11 | 133 | 108 | 1750 |
| YH-300 | 0.1-2.5 MPa | 45 | 220 | 18.5 | 159 | 133 | 2200 |
| YH-300 (prolonged) |
0.1-2.5 MPa | 60 | 350 | 22 | 159 | 133 | 2850 |
| YH-350 | 0.1-2.5 MPa | 100 | 420 | 37 | 219 | 159 | 5250 |
| YH-400 | 0.1-2.5 MPa | 120 | 420 | 37 | 219 | 219 | 5850 |
Q1: Whether the rig is used for rock holes or soil holes?
A1: Equipped with different drill bits according to the application object. Rock drilling rigs are equipped with round steel drill impact hammers and rock drill bits. The soil drilling rigs require a twist drill pipe and a three-blade drill bit.
Q2: How much tonnage can a bridge jack lift??
A2: The range is from 50 to 1000 tons, depending on the application needs we have the right choice for you.
Q3: How many meters is the connection between the jack and the oil pump?
A3: The factory standard is two meters. If you need longer, we will make it for you.
Q4: What is the difference between the hydraulic oil pump?
A4: For the tension jack, it is a 50 MPa 3 kW oil pump and 60 MPa 4 kW oil pump.
Q5: What kind of packages does a set of anchors have?
A5: Anchor ring, clip, anchor pad, spiral rib.
Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)
Q7: How long is the machine warranty?
A7: One year for the machine and provide technical support according to your needs.
Q8: How long will it take to arrange production?
A8: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.
Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.
Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.
1. We are a real factory offering products and providing free technical advice.
2. Company in business for many years and served Over 50 countries' customers.
3. All machines with CE, ISO, and SGS certificates. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
Our products are sold all over the world, you can rest assured.
