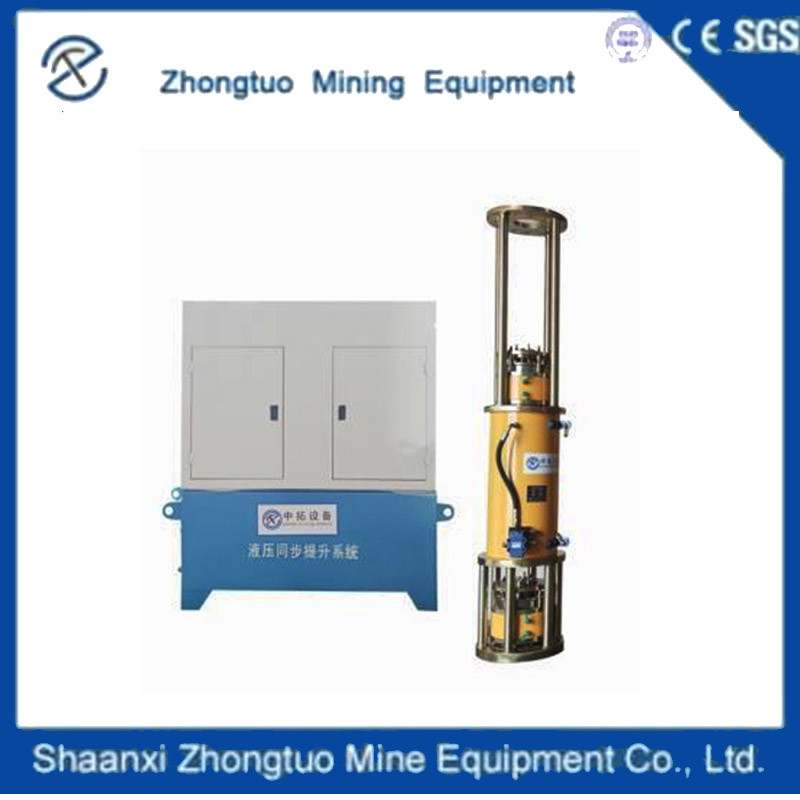

50ton 100ton 150ton 250 Ton 500ton Hydraulic Synchronous Lifting System Strand Jacks
-
Highlight
500ton Strand Jacks
,250 Ton Strand Jacks
,100ton Strand Jacks
-
Place of OriginChina
-
Brand NameZT
-
CertificationCE ISO
-
Model NumberZT 500
-
Minimum Order Quantity1PC
-
Pricenegotiable
-
Packaging DetailsWooden Case
-
Delivery Time7-15 Work Days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability100pcs/month
50ton 100ton 150ton 250 Ton 500ton Hydraulic Synchronous Lifting System Strand Jacks
Hydraulic Synchronous Lifting System Strand Jacks
The hydraulic synchronous lifting system is a very common application system.
The hydraulic synchronous lifting system is mainly composed of hydraulic strand jack, oil pump, control system.
Synchronous lifting hydraulic system for the computer control of the overall lifting and lowering, technology using flexible steel strand bearing, lifting steel strand hydraulic jack cluster, computer control, hydraulic synchronous lifting principle, combined with modern construction technology, mainly used to lift heavy objects.
Parameters
| model | Safe working load |
MPA |
Cylinder stroke mm |
mm |
Jack weight KG |
KG |
boost speed m/h |
Number of strands | Strand diameter mm |
| ZT-TSD15 | 15 | 31.5 | 500 | 1846 | 148 | 3.2 | 0-25 | 1 | 18 |
| ZT-TSD45 | 45 | 31.5 | 500 | 1726 | 600 | 28 | 0-25 | 3 | 18 |
| ZT-TSD60 | 60 | 31.5 | 500 | 1726 | 630 | 32 | 0-25 | 4 | 18 |
| ZT-TSD100 | 100 | 31.5 | 500 | 1790 | 930 | 46 | 70-25 | 7 | 18 |
| ZT-TSD180 | 180 | 31.5 | 500 | 1886 | 1560 | 90 | 0-25 | 12 | 18 |
| ZT-TSD280 | 280 | 31.5 | 500 | 1938 | 2330 | 130 | 0-25 | 19 | 18 |
| ZT-TSD300 | 300 | 31.5 | 500 | 1940 | 2460 | 140 | 0-25 | 20 | 18 |
| ZT-TSD400 | 400 | 31.5 | 500 | 2100 | 3396 | 220 | 0-25 | 27 | 18 |
| ZT-TSD580 | 580 | 31.5 | 500 | 2220 | 4980 | 260 | 0-25 | 38 | 18 |
| ZT-TSD680 | 680 | 31.5 | 500 | 2180 | 5410 | 320 | 0-25 | 45 | 18 |
| ZT-TSD800 | 800 | 31.5 | 500 | 2200 | 6880 | 360 | 0-25 | 54 | 18 |
| ZT-TSD1000 | 1000 | 31.5 | 500 | 2286 | 8520 | 560 | 0-25 | 66 | 18 |
Application
Hydraulic Synchronous Lifting Systems are widely used in the construction industry and shipyards.
FAQ:
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: No.27,Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)
Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.
Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.
Q11: What is your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.
Why you choose us:
1. We are a real factory offering products and providing free technical advice.
2. Company in business for many years and served Over 50 countries' customers.
3. All machines with CE, ISO, and SGS certificates. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
Our products are sold all over the world, you can rest assured.
