Prestressing Concrete Construction PC Strand Pulling Equipment Strand Pusher Machine For Post Tension

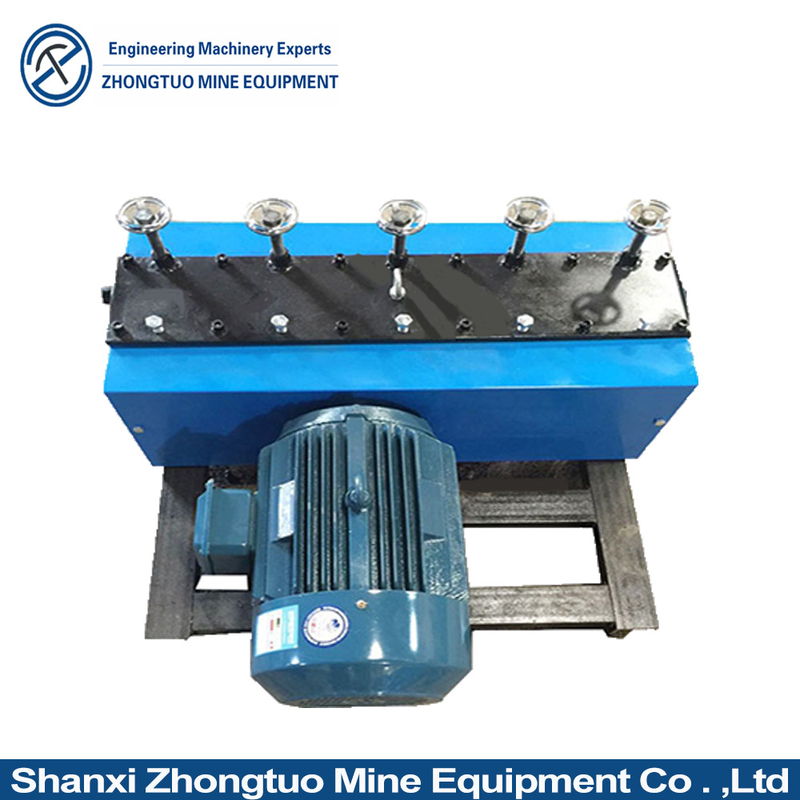

1.Pusher description

The PC wire drawing machine adopts mechanical drive, and the roller clamps the steel wire for transmission.

PC wire drawing machine can move forward, backward, continuously, or inching.

The speed of conveying steel strand adopts stepless speed regulation.

This kind of PC steel strand drawing machine is widely used in large bridges, box girders and structures.

2.Working principle of pusher

The reducer drives the double driving wheels to rotate, and the steel hinge wire is inserted from one end of the cable inlet. The driving wheel and the double cluster driving wheel compress the steel hinge wire to move forward along the conduit, and penetrates the reserved hole until the other end of the hole reaches tension.

3.Technical Parameter of Pusher Machine

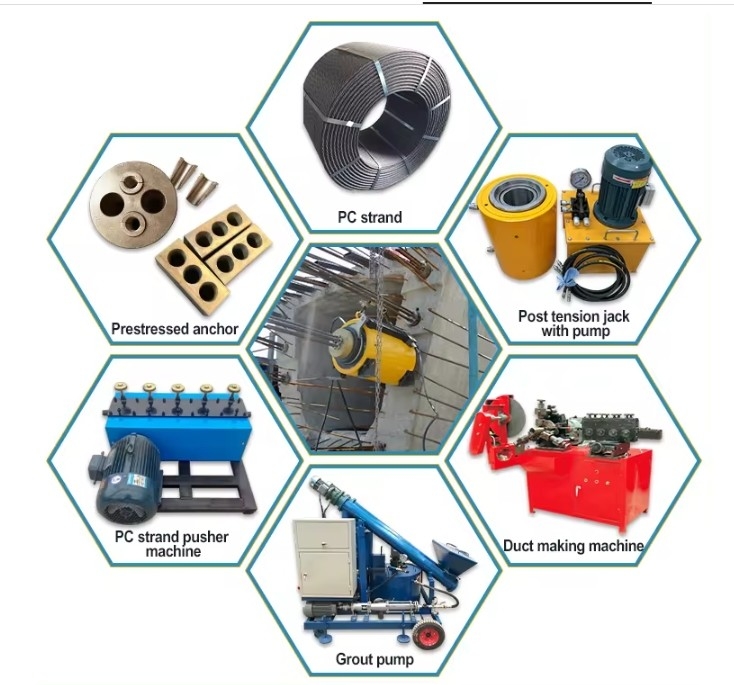

4.We can also provide:

Post tension jack with pump: The equipment can be used to tighten various steel strand anchors, and has a matching hydraulic oil pump.

PC strand: 12.7 mm and 15.2mm prestressed concrete wire strand.

Prestressed anchor: Anchor head, bearing plate, anchor wedge, spiral reinforcement, metal corrugated ducts, PC strands. Good tensile performance, continuous stability, high efficiency coefficient, convenient operation.

PC strand pusher machine: PC strand pusher machines are widely used in prestressing jobs. The operation is simple and the maintenance is convenient, saving manpower and improving work efficiency.

Grout pump: The equipment can be used for grouting of prestressed Bridges.

Duct making machine: The machine can produce bellows for bridge prestressing and small, efficient, easy to operate.

All the machines can be customized according to client’s requirements, supply the best quality and serve. Our warranty is 2 years.

5.

5.Packaging and shipping

Packaging details:

1. Outer packaging: standard sea shipping export bakelite box;

2. Inner packaging: stretch film, moisture-proof plastic film;

3. Customized as per your requirements.

Shipping

1. Port: Tianjin, Qingdao, Shanghai or other ports as per your request.

2. Transportation: FOB/CIF/DDU quotations are available.

3. Transportation method: logistics; by car; by train; by transportation; by air, etc.

6.Certificate and factory display

7.FQA

1.Q: Are you a factory or a trading company?

   A:Shaanxi Zhongtuo Machinery Co., Ltd. is a manufacturer located in Liuzhou City, Guangxi Province.

2.Q: What is your supply capacity?

   A: Generally, our factory's production capacity is 100,000 sets per month. But for special bulk orders, we can produce more. Don't worry about            this.

3. Q: How can we trust your quality?

    A:There are many methods to check quality. For example, sending samples, visiting factories, etc. Our suggestion is that visiting the factory is            the best way to check quality.

4. Q: What are your payment terms?

    A : We accept payment by wire transfer and irrevocable L/C at sight. For T/T payment, we accept 30% advance payment and the balance is               paid according to the copy of the bill of lading.

5.Q: Do you accept OEM service and make products according to the drawings provided by customers?

   A: Yes, we can provide OEM service. We also provide customers with new product design, non-standard design and prestressed construction            plans.

6.Q: Are there free samples?

   A: Yes, we can provide free samples. But the express cost should be borne by the buyer.
