Highlight

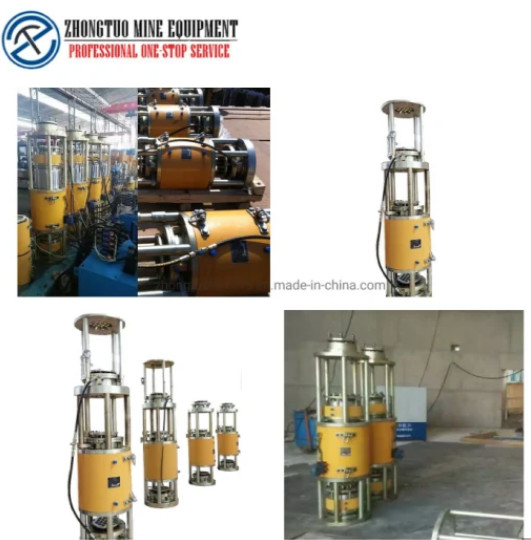

Strand Lifting Jack
,Strand Jacks
,Hydraulic Strand Jacks
-
Product NameZT400
-
Tonnage400tons
-
Stroke500mm
-
Working Pressure MPA31.5Mpa
-
Number Of Strand17 Pcs
-
Strand Diameter17.8mm
-
Place of OriginChina
-
Brand NameZT
-
CertificationCE ISO
-
Model NumberZT300
-
Minimum Order Quantity1PC
-
Pricenegotiable
-
Packaging DetailsWooden Case
-
Delivery Time2-5 Work Days
-
Payment TermsL/C
-
Supply Ability1000pcs/month
strand lifting jack Hydraulic Strand Jacks
Hydraulic Synchronous Lifting System Strand Jacks
Hydraulic synchronous lifting system is application system.
Hydraulic synchronous lifting system is contained by hydraulic strand jack, oil pump, and control system.
Parameters
| model | Safe working load |
MPA |
Cylinder stroke mm |
mm |
Jack weight KG |
KG |
boost speed m/h |
Number of strands | Strand diameter mm |
| ZT-TSD15 | 15 | 31.5 | 500 | 1846 | 148 | 3.2 | 0-25 | 1 | 18 |
| ZT-TSD45 | 45 | 31.5 | 500 | 1726 | 600 | 28 | 0-25 | 3 | 18 |
| ZT-TSD60 | 60 | 31.5 | 500 | 1726 | 630 | 32 | 0-25 | 4 | 18 |
| ZT-TSD100 | 100 | 31.5 | 500 | 1790 | 930 | 46 | 70-25 | 7 | 18 |
| ZT-TSD180 | 180 | 31.5 | 500 | 1886 | 1560 | 90 | 0-25 | 12 | 18 |
| ZT-TSD280 | 280 | 31.5 | 500 | 1938 | 2330 | 130 | 0-25 | 19 | 18 |
| ZT-TSD300 | 300 | 31.5 | 500 | 1940 | 2460 | 140 | 0-25 | 20 | 18 |
| ZT-TSD400 | 400 | 31.5 | 500 | 2100 | 3396 | 220 | 0-25 | 27 | 18 |
| ZT-TSD580 | 580 | 31.5 | 500 | 2220 | 4980 | 260 | 0-25 | 38 | 18 |
| ZT-TSD680 | 680 | 31.5 | 500 | 2180 | 5410 | 320 | 0-25 | 45 | 18 |
| ZT-TSD800 | 800 | 31.5 | 500 | 2200 | 6880 | 360 | 0-25 | 54 | 18 |
| ZT-TSD1000 | 1000 | 31.5 | 500 | 2286 | 8520 | 560 | 0-25 | 66 | 18 |
Application
Hydraulic Synchronous Lifting Systems are widely used in the construction industry and shipyards.
