Product description

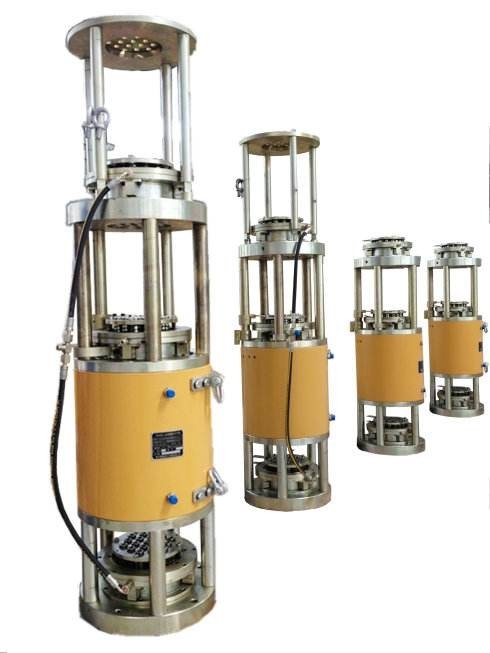

Strand lifting jack

Strand lifting jack is developed from the edge clamping technology for positive tension concrete, its purpose is to lift heavy objects, it is an improvement on the existing lifting equipment tradition. The specially designed Strand lifting jack for lifting and traction has been integrated with many features to make it easy to install and use, and the operation speed, synchronization and control accuracy are greatly improved. The current range of Strand lifting jack provides a safe working capacity of up to 2000 tons per unit (kilo) and has proven operating speeds of up to 60 m/h. The control system can be simple or complex according to the actual application requirements. Can be local control can also be remote control, can be a single operation, but also a number of cooperation. Rewinders and related operating equipment can reduce downtime during interlocking operations and greatly increase cable reuse life. Where appropriate, a frame can also be used to connect the top to the structure by hook (chain) and using standard marketing and suspension equipment.

Strand lifting jack consists of a bottom fixing (group), a main hydraulic plunger (plunger) and a top fixing (group). The operation of the main hydraulic plunger (plug) moves the cable (rope) through the top, automatically transferring the support (load) between the top and bottom fixed (group), thereby lifting the load. The lowering operation uses a second hydraulic system mounted on two fixed (group) pieces to work in conjunction with the movement of the main plunger to lower the cable (rope) through the top. Not only can the steel wire jack be operated for a long time without failure, but all jacks are equipped with a hydraulic safety check valve in their tension port. All Strand lifting jack can repair and refurbish their fastening systems at full capacity.

Parameters

Why Choose Strand Lifting Jack?

Although the lifting capacity of the crane continues to improve, the use of the crane is often hampered by space limitations, equipment installation time or lifting weight requirements. Sometimes, Strand lifting jacks are often the solution to the problem. Our company has been committed to promoting the engineering of steel stranding jack system. We believes that this is a safer and more cost-effective solution for heavy lifting projects. Strand lifting jacks can replace cranes and are mainly used in construction, petrochemical and offshore engineering. There may be competition with large cranes in the petrochemical industry, but people prefer to use wire jacks rather than winches to lift loads.

FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2: No.27,Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.

Q11: What is your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.

Why you choose us:

1. We are a real factory offering products and providing free technical advice.
2. Company in business for many years and served Over 50 countries' customers.
3. All machines with CE, ISO, and SGS certificates. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
