Hydraulic Slip High Pressure Mud Pump 3-120m3/H Flow Ceramic Plunger Pump

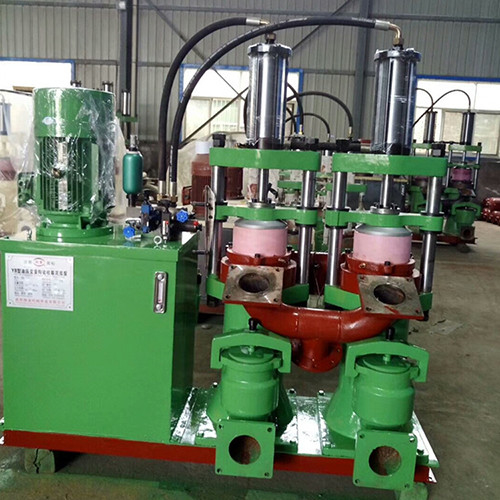

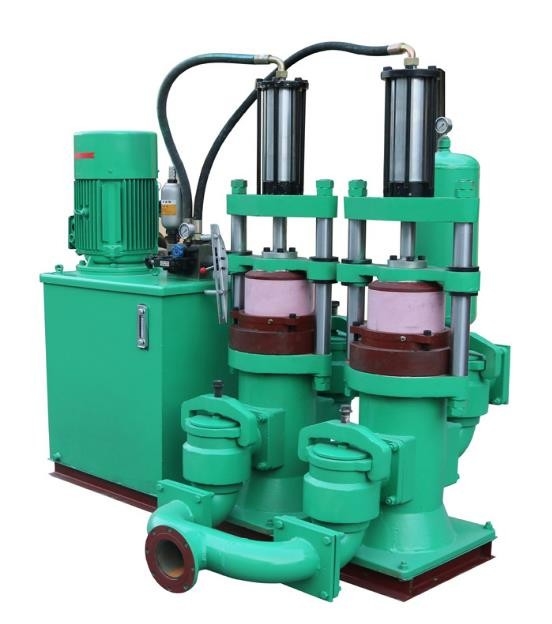

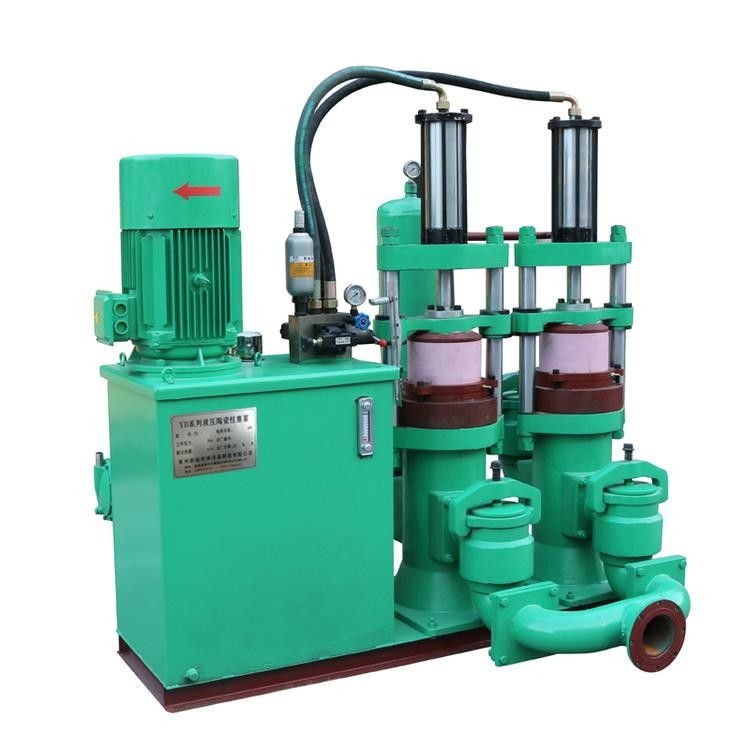

Yb High Pressure Ceramic Cylinder Hydraulic Slip Mud Pump

Working Principle of Ceramic Mud Pump

Ceramic piston pump when the cylinder axis and the axis of the drive shaft into an Angle, called an oblique axial piston pump. When the shaft under the drive of the motor turns, the side of the connecting rod drives the plunger rotates together with the cylinder body, at the same time, the connecting rod drives the piston in the cylinder for reciprocating motion, making the plunger hole at the bottom of the sealed cavity volume continuously expand and contract changes, through stationary flat valve tray window of oil absorption, oil pressure. If the tilt Angle of the cylinder is changed, the displacement of the pump can be changed; If the tilt direction of the cylinder body is changed, it can become a two-way variable shaft yearning plug pump.

Technical Parameters of Ceramic Mud Pump

Advantages of Ceramic Mud Pump

1. Simple operation: The pressure adjustment only needs to tighten or relax the pressure regulating valve. After adjusting the pressure, the valve is locked, and there is no need to adjust again.

2. Low maintenance cost: the vulnerable parts of the pump for the valve plate and plunger seal. The replacement cycle is 3-6 months for ceramic mud and 6-12 months for municipal sludge.

3. Long service life: the service life of at least 15 years.

4. Customized production: according to the actual working conditions of each user, flexible configuration, customized products suitable for customer production needs.

Application of Ceramic Mud Pump

1. Involved industries: environmental water treatment: municipal sewage, paper sludge, glass polishing, steel rolling, electroplating sewage, rinsing sewage, ceramic stone: leather, and other industries sewage treatment, printing, and dyeing sewage and other industries sewage treatment.

2. Food and pharmaceutical: bean residue powder and other lines of sewage treatment, beer brewing, sugar monosodium glutamate, alcohol, yeast, pharmaceutical sewage, glutinous rice

3. Chemical pigments: oil liquefaction slag, white hair black pigment fuel, titanium dioxide lubricating oil, chemical fiber dilute hydrochloric acid, cosmetics, and other industry's sewage treatment.

Maintenance of Ceramic Mud Pump

Surface corrosion of high-pressure ceramic plunger pump steel ball

The pump rotates normally, and the pressure of the output working medium decreases greatly compared with the normal condition. The pressure of the normal working medium is only below 31%, and the output flow is only below 22% under the normal condition, indicating that there is a serious internal or external leakage in the operation of the pump. After the disassembly inspection of the piston pump in question, it is found that there are obvious fatigue corrosion traces on the surface of the steel ball used for one-way sealing in the single plunger suction and discharge valve bodies, and the corrosion of the steel ball in the oil absorption valve body is more obvious, so it can be seen that the failure of the steel ball is related to corrosion and cavitation. The resulting internal leakage seriously affects the sealing of the pump, resulting in a drop in pump pressure and flow.
