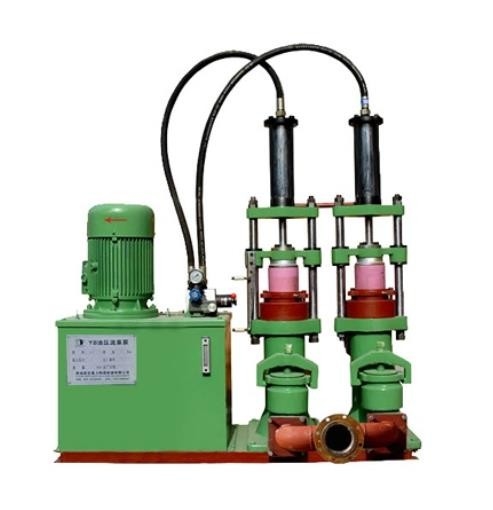

Ceramic Cylinder Hydraulic Slip Mud Pump Machine High Pressure

Yb High Pressure Ceramic Cylinder Hydraulic Slip Mud Pump

Description of Ceramic Hydraulic Slip Mud Pump

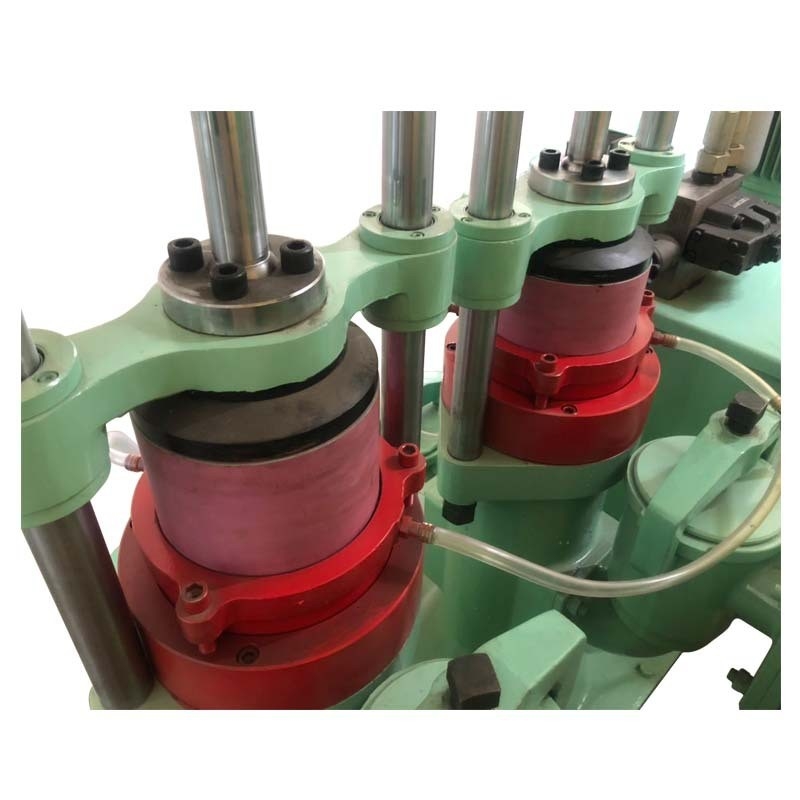

The YB series hydraulic ceramic plunger pump is driven by oil pressure and the plunger is made of highly wear-resistant corrosion-resistant alumina ceramic. The pump body can be turned into cast iron, stainless steel, etc. according to different characteristics of the ceramic industry and the chemical industry.

Technical Parameters of Ceramic Hydraulic Slip Mud Pump

Advantages of Ceramic Hydraulic Slip Mud Pump

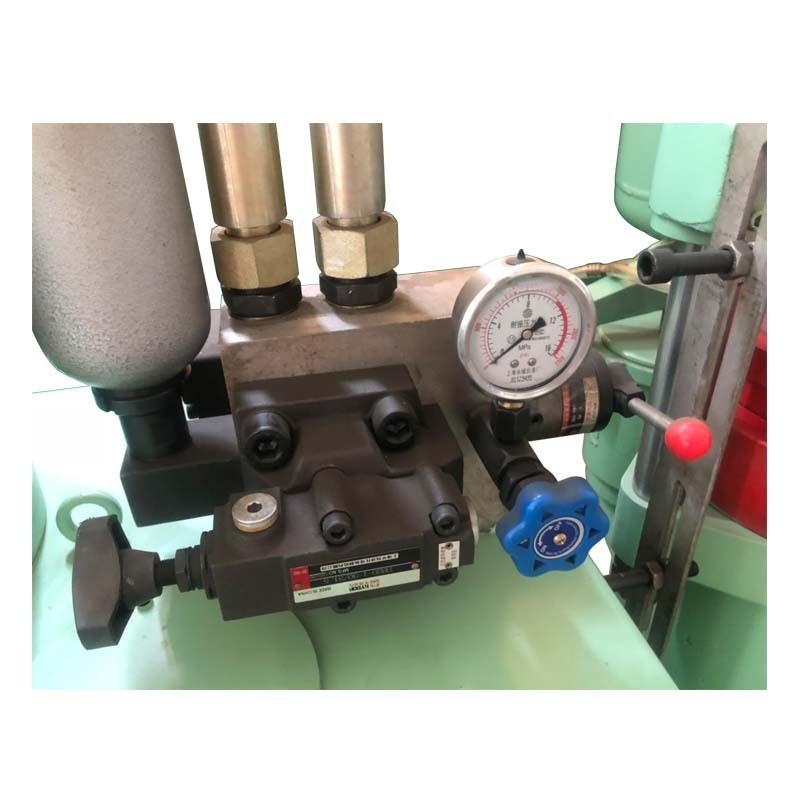

1. Simple operation: The pressure adjustment only needs to tighten or relax the pressure regulating valve. After adjusting the pressure, the valve is locked, and there is no need to adjust again.

2. Low maintenance cost: the vulnerable parts of the pump for the valve plate and plunger seal. The replacement cycle is 3-6 months for ceramic mud and 6-12 months for municipal sludge.

3. Long service life: the service life of at least 15 years.

4. Customized production: according to the actual working conditions of each user, flexible configuration, customized products suitable for customer production needs.

Application of Ceramic Hydraulic Slip Mud Pump

1. Involved industries: environmental water treatment: municipal sewage, paper sludge, glass polishing, steel rolling, electroplating sewage, rinsing sewage, ceramic stone: leather, and other industries sewage treatment, printing, and dyeing sewage and other industries sewage treatment.

2. Food and pharmaceutical: bean residue powder and other lines of sewage treatment, beer brewing, sugar monosodium glutamate, alcohol, yeast, pharmaceutical sewage, glutinous rice

3. Chemical pigments: oil liquefaction slag, white hair black pigment fuel, titanium dioxide lubricating oil, chemical fiber dilute hydrochloric acid, cosmetics, and other industry's sewage treatment.

Maintenance of Ceramic Hydraulic Slip Mud Pump

1. Mud pumps and other mechanical equipment should be inspected and maintained on a scheduled and timely basis to find and address problems ahead of time, in order to avoid an unscheduled shutdown.

2. The worker should attend to the size of the sediment particles; if large particles are found, the mud pump parts should be checked frequently for wear, to see if they need to be repaired or replaced. The wearing parts for mud pumps include pump casing, bearings, impeller, piston, liner, etc.
