Multifunctional Polyurethane Spray Machine 200-1000CPS Polyurethane Spraying Equipment

Multifunctional Polyurethane Spray Machine 200-1000CPS Polyurethane Spraying Equipment

  • Highlight

    Multifunctional Polyurethane Spray Machine

    ,

    polyurethane spray machine 200 CPS

    ,

    1000CPS polyurethane spraying equipment

  • Hose Heating Power
    3500W
  • Heating Temperature Range
    0ºC~70ºC
  • Shipping Size
    1000mm×1000mm×1550mm
  • Weight
    245Kg
  • Transport Package
    Wooden Box
  • Brand
    ZHONGTUO
  • After-sales Service
    Tracking Guidance & Service
  • Warranty
    One Year
  • Place of Origin
    China
  • Brand Name
    ZHONGTUO
  • Certification
    CE; ISO
  • Minimum Order Quantity
    1
  • Price
    negotiated
  • Packaging Details
    Wooden Carton
  • Delivery Time
    7-15Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram

Multifunctional Polyurethane Spray Machine 200-1000CPS Polyurethane Spraying Equipment

Multifunctional Polyurethane Spraying Machine Equipment



Technical Parameter of Polyurethane Spraying Machine



Viscosity range of raw material
200-1000 CPS (under operation temperature
Output of raw material
2-7.8L/min
Heating power
3000W*2
Hose heating power
3500W
Heating temperature range
0ºC~70ºC
Compressed air
0.5~0.8Mpa(70~120psi)≥ 1m3/min
Shipping Size
1000mm×1000mm×1550mm
Weight
245Kg

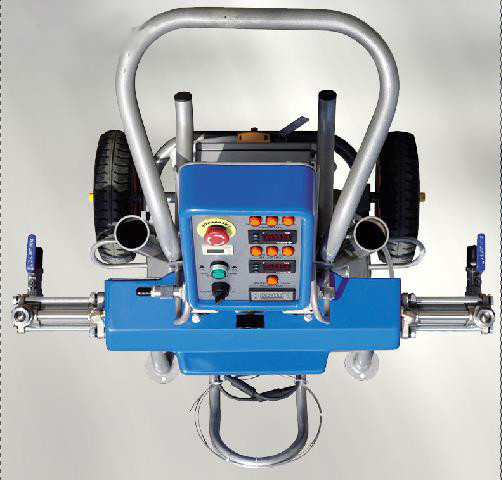

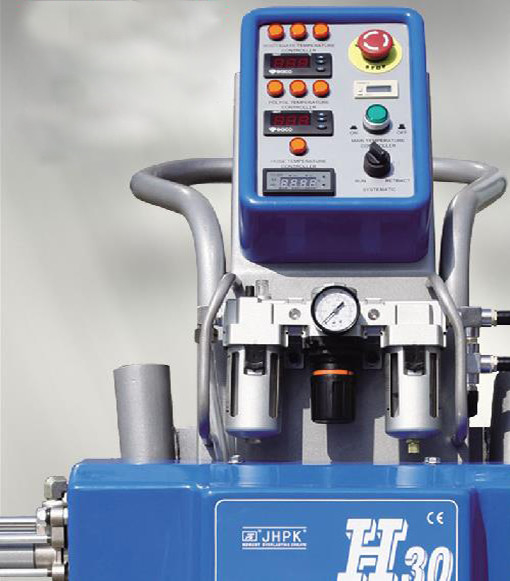

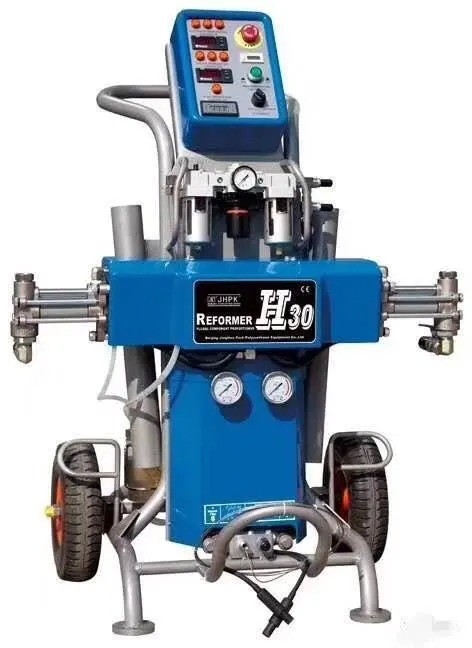

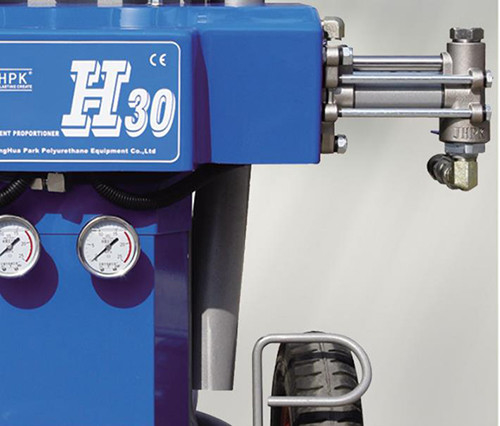

Product&Accessories of Polyurethane Spraying Machine

Multifunctional Polyurethane Spray Machine 200-1000CPS Polyurethane Spraying Equipment 0

Multifunctional Polyurethane Spray Machine 200-1000CPS Polyurethane Spraying Equipment 1

Features of Polyurethane Spraying Machine



1. The machine has a small size, is lightweight, low failure rate is a simple operation, is easy to move, and so on.
2. Use the most advanced pneumatic booster devices, to the maximum degree to ensure the stability of equipment work.
3. Multiple raw material filter devices to minimize the spray plug problem.
4. Multiple leakage protection systems to protect the safety of the operator.
5. With an emergency switch system, the most rapid response to emergencies.
6. Reliable and powerful heating system can make the raw material rapidly heat to the ideal state, to meet the normal construction of equipment.
7. The feeding volume can be adjusted and has a regular, quantitative function, especially suitable for high-precision small batches of polyurethane casting to improve production efficiency.
8. The latest no-clean spray gun with a small size, lightweight, and low failure rate.
9. Material is taken pump use a large ratio method, automatic mention material, the high viscosity of winter raw materials can also easily feed.

10. The polyurethane spraying machine is controlled by the man-machine interface, and the automatic operation has a high efficiency, which greatly reduces the labor burden of people.
