Various Fluid BW 250 Mud Pump Machine High Power Grouting Machine

Bw250 Mud Pump High Power Groutim Machine for Various Fluid

Definition of Piston Triplex Mud Pump

The mud pump sometimes referred to as a mud drilling pump or drilling mud pump is a reciprocating piston/plunger pump designed to circulate drilling fluid under high pressure down the drill string and back up the annulus. A mud pump is an important part of the equipment used for oil well drilling.

Technical parameters of Piston Triplex Mud Pump

Structure & Working Principle of Piston Triplex Mud Pump

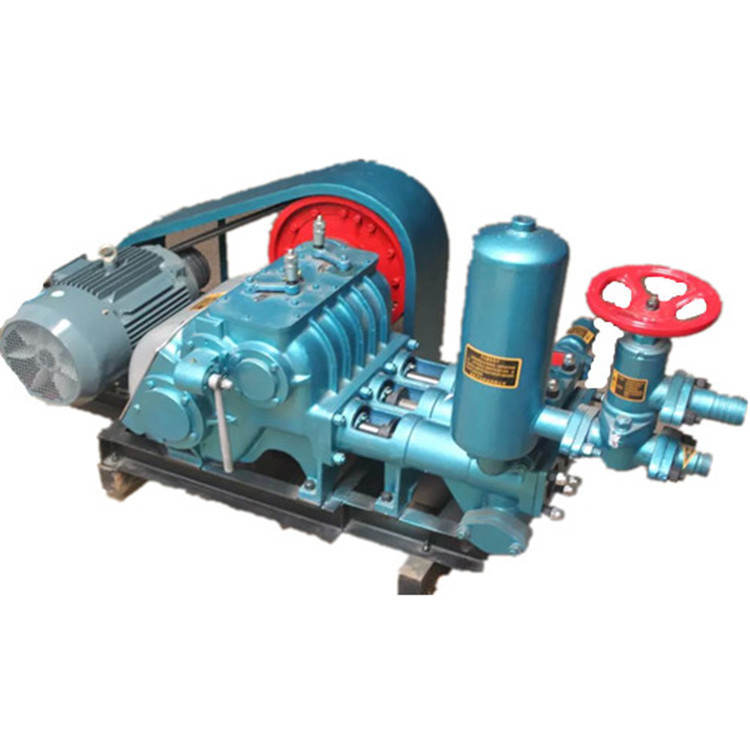

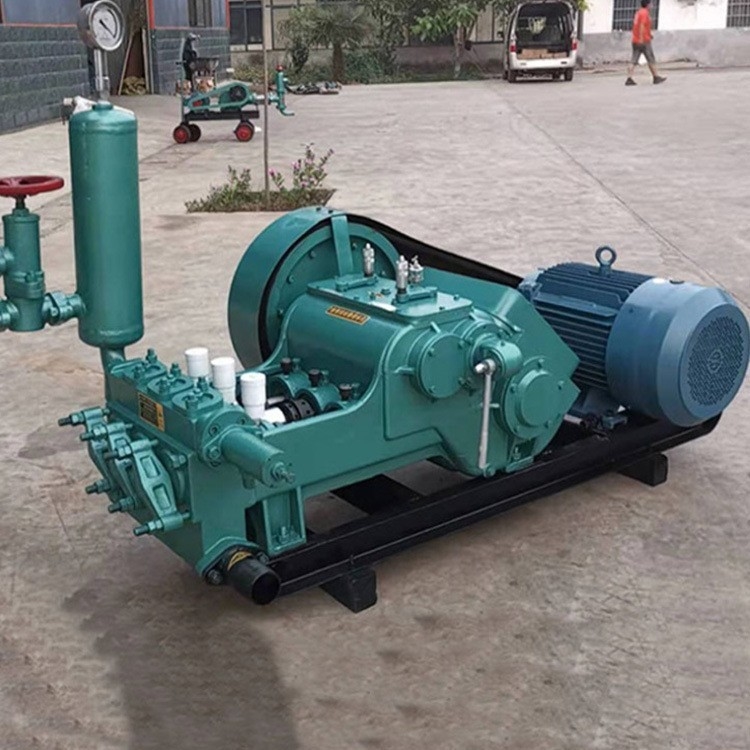

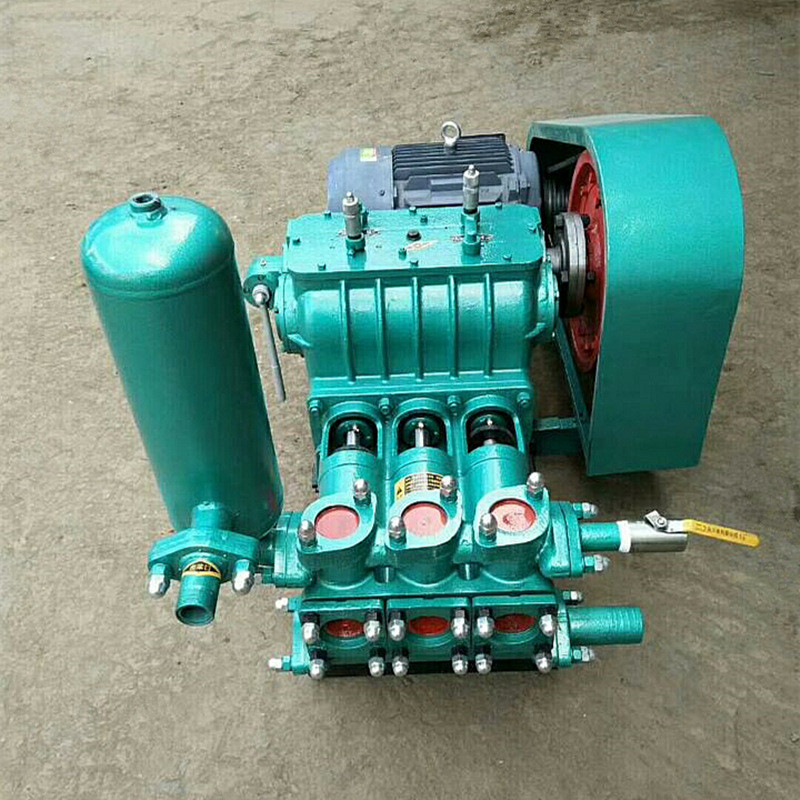

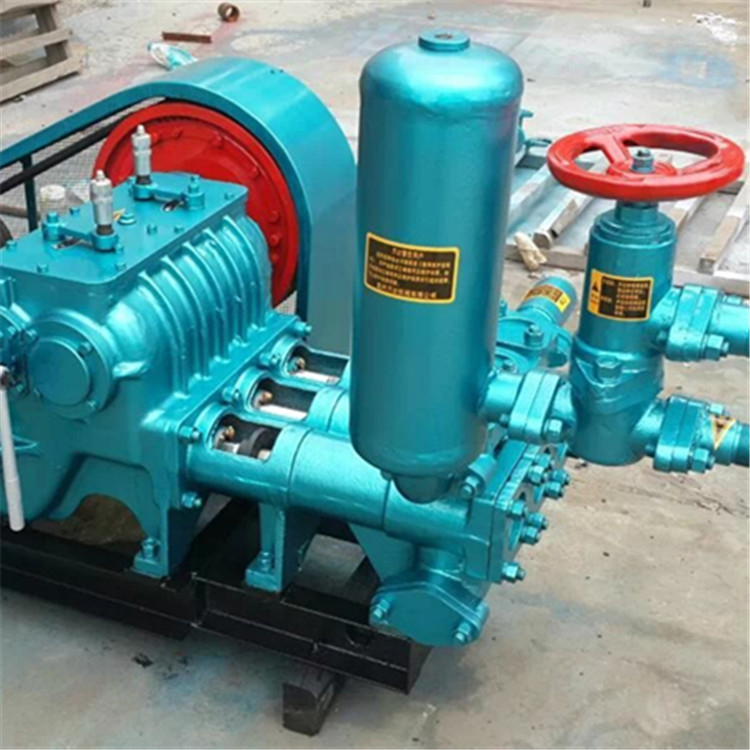

BW250 portable mud pump machine is a horizontal three-cylinder reciprocating single-acting piston pump. The pump has two cylinder diameters and four-speed variables. The large cylinder liner is used for 1000-meter large-diameter drilling rigs, and the small cylinder liner is used for 1500-meter small-diameter drilling rigs.

Features of the Piston Triplex Mud Pump

1. The mud pump is a horizontal triplex reciprocating single-acting piston pump with four flow rates and four pressures, with a wide range of flow and pressure variations.
2. Piston mud pump is designed with multiple shifts for flexible speed and displacement adjustment.
3. With a compact structure and lightweight, this reciprocating piston pump is also energy-saving, highly effective, and durable in use.
4. it is easy to operate and convenient to maintain, keeping maintenance costs low.

Application of Piston Triplex Mud Pump

BW piston mud pump is extensively utilized in industries including geology, coal, building, metallurgy, chemicals, railway, water conservancy, oil, and other fields.

Routine Maintenance of Piston Triplex Mud Pump

1. Mud pumps and other mechanical equipment should be inspected and maintained on a scheduled and timely basis to find and address problems ahead of time, in order to avoid an unscheduled shutdown.

2. The worker should attend to the size of the sediment particles; if large particles are found, the mud pump parts should be checked frequently for wear, to see if they need to be repaired or replaced. The wearing parts for mud pumps include pump casing, bearings, impeller, piston, liner, etc.

Entire Service

We would provide customers with a one-year warranty, during processing, if customers have any problems with installation and use, we have professionals to provide online text, voice, or video communication services for them.
