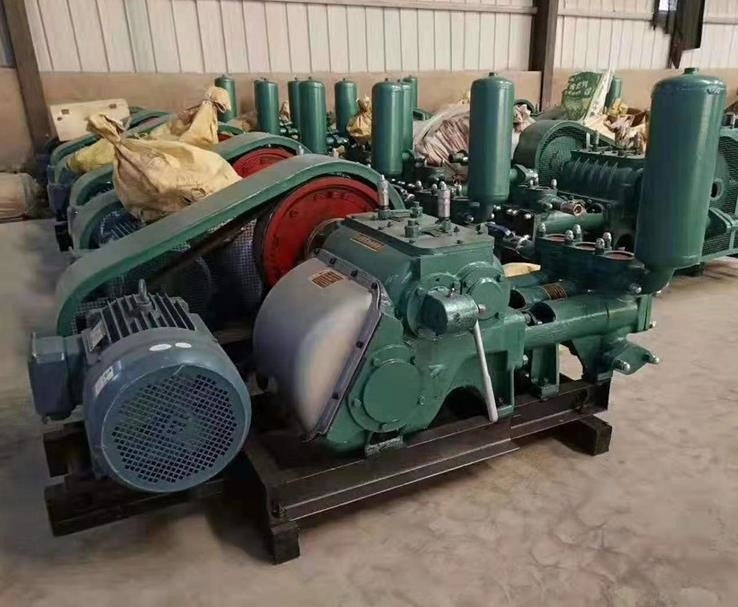

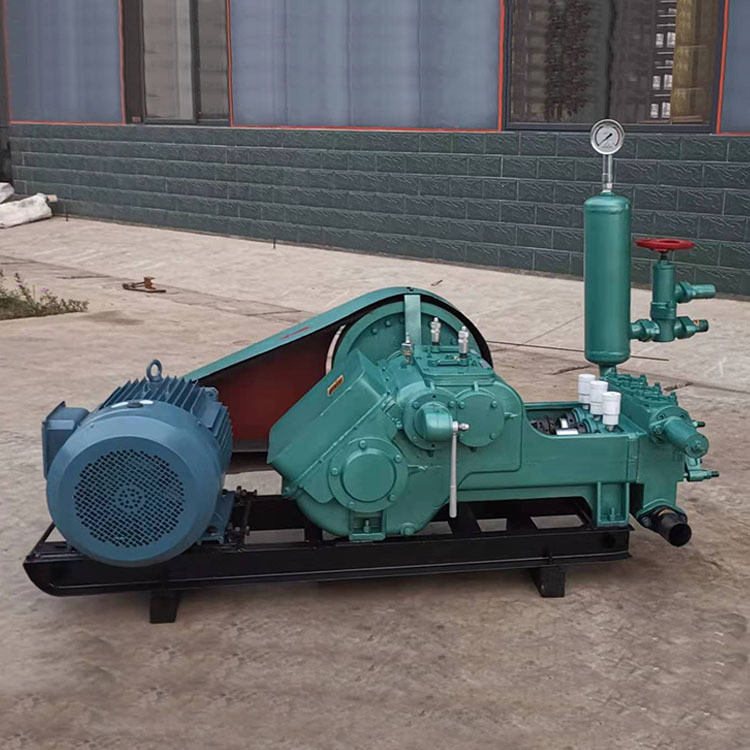

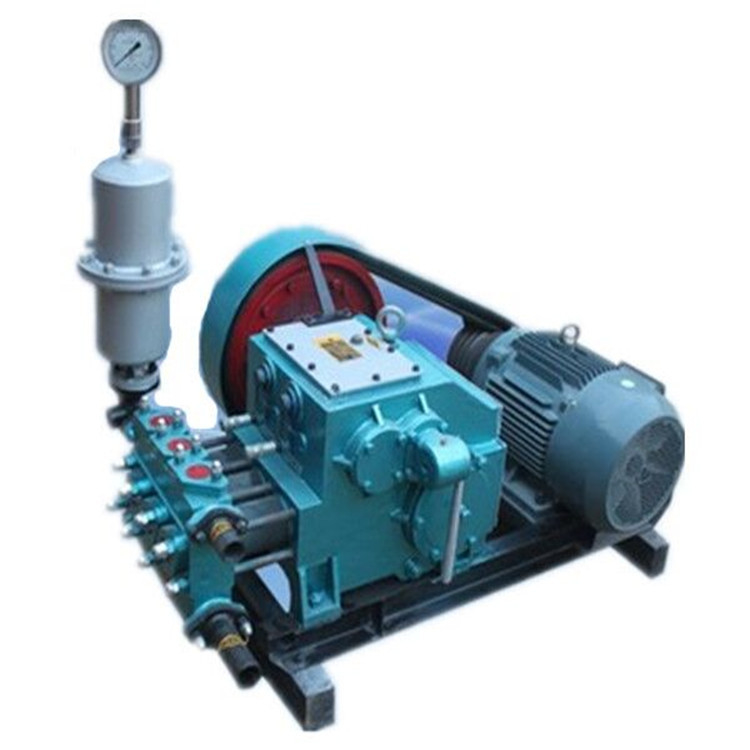

30KW BW320 Piston Mud Pump Machine Three Cylinders In Construction

Bw320 Piston Mud Pump Three Cylinders in Construction

Description of Bw320 Piston Mud Pump

BW-320 mud pump is a new product developed by the drilling technologies such as hydraulic percussion drilling and screw drilling developed in recent years in geological exploration. It can provide flushing fluid (mud or clean water) into the borehole during the core drilling process to make it circulate in the borehole to carry cuttings back to the surface, keep the bottom of the hole clean, cool and lubricate the drill bit, and drilling tools, It protects the hole wall from collapsing, and can also be used as a power source to drive the impactor (or screw or worm gear) to help to drill. It is one of the important pieces of equipment for modern drilling.

Technical parameters of Bw Mud Pumps

Advantages of BW Bw320 Piston Mud Pump

1. Compact structure, lightweight, small size, beautiful appearance, can be driven by hydraulic motor, motor, and diesel engine

2. Adopt new concepts in design, apply new structures, new materials, and new processes;

3. Improve the standardization, serialization, and generalization of the horizontal pump body, crankshaft, connecting rod, crosshead, pump head, and some related components as much as possible to serialize and generalize, and reduce the types of other components

4. The wearing parts have a long service life and high reliability

Operation Precautions of BW Bw320 Piston Mud Pump

The rinsing liquid used in this slurry should not contain chemical impurities that corrode metal and rubber parts, and its temperature should not exceed 50℃. When using mud, the recommended specific gravity is 1.03-1.12, the viscosity is 18-25 seconds, the sand content is not more than 4%, the diameter of the largest sand particle should be less than 2 mm, the pH value is 7-8, and there should be no mud and weeds in the mud. , leaves, etc. that clog the water filter.

Entire Service

We would provide customers with a one-year warranty, during processing, if customers have any problems with installation and use, we have professionals to provide online text, voice, or video communication services for them.
