Dia 12-40mm Rebar Processing Machine Hydraulic Automatic Upset Forging Machine

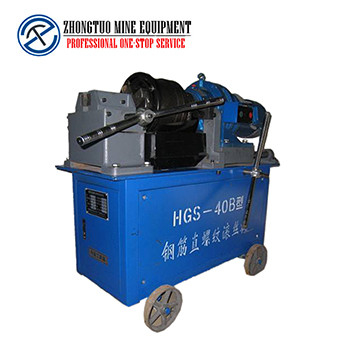

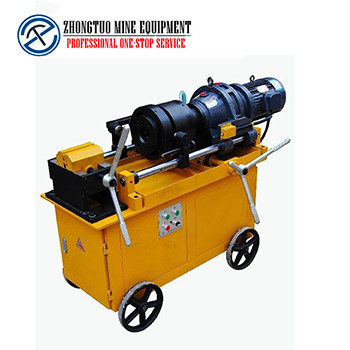

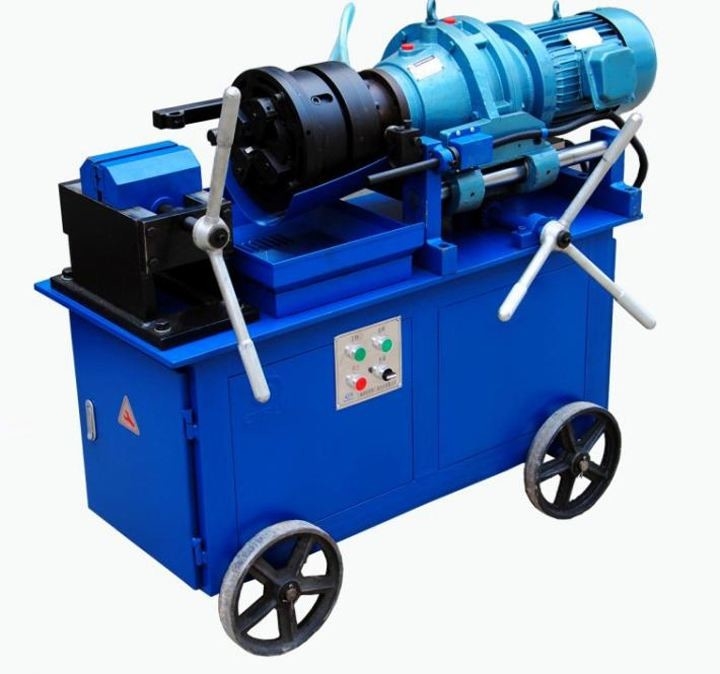

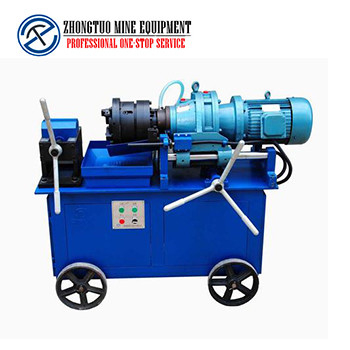

Workflow of Thread rolling machine

1. Debug the machine tool, turn on the power as required, add coolant to the coolant tank, and then start the thread rolling machine for the trial operation to see if the cooling system, control system, etc. are working properly.

2. According to the diameter of the steel bar that needs to be rolled, install the corresponding rolling wheel and replace the corresponding washer at the same time to ensure the accuracy of the thread pitch

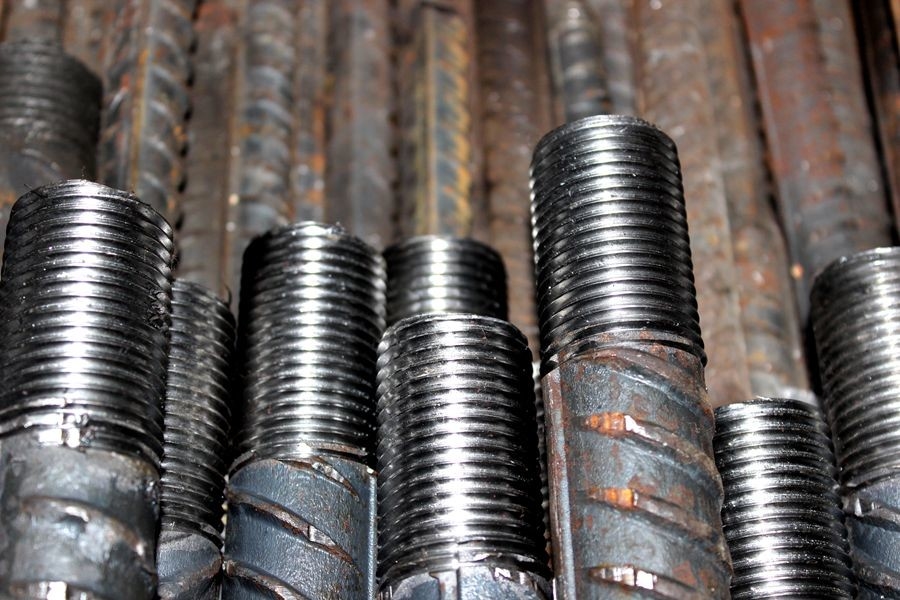

3. Clamp the steel bar, install the steel bar to be rolled on the centering jaw, align the extension length with the end face of the rolling head stripping blade at the starting position, and clamp the steel bar. 4. Start the thread rolling machine, turn the moving handle, start to peel the ribs in the forward rotation, continue to feed the rolling thread, press the reverse start button after the thread rolling is completed, and the tool will automatically retract. After the work, clean the machine tool to keep it clean and dry, and regularly perform maintenance on the thread rolling machine such as oil replacement and prop grinding.

Entire Service
We would provide customers with a one-year warranty, during processing, if customers have any problems with installation and use, we have professionals to provide online text, voice, or video communication services for them.
