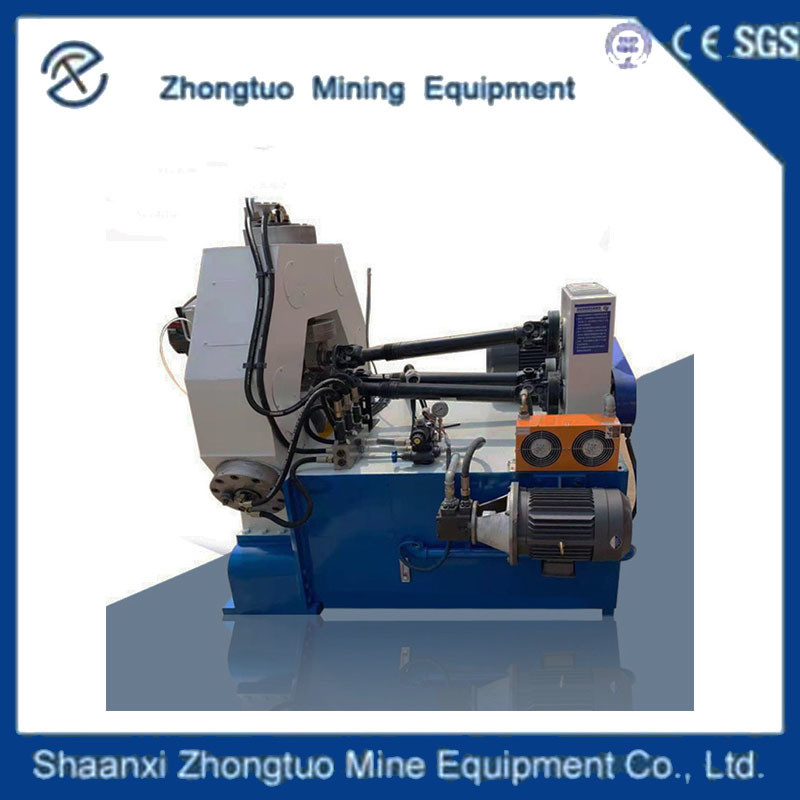

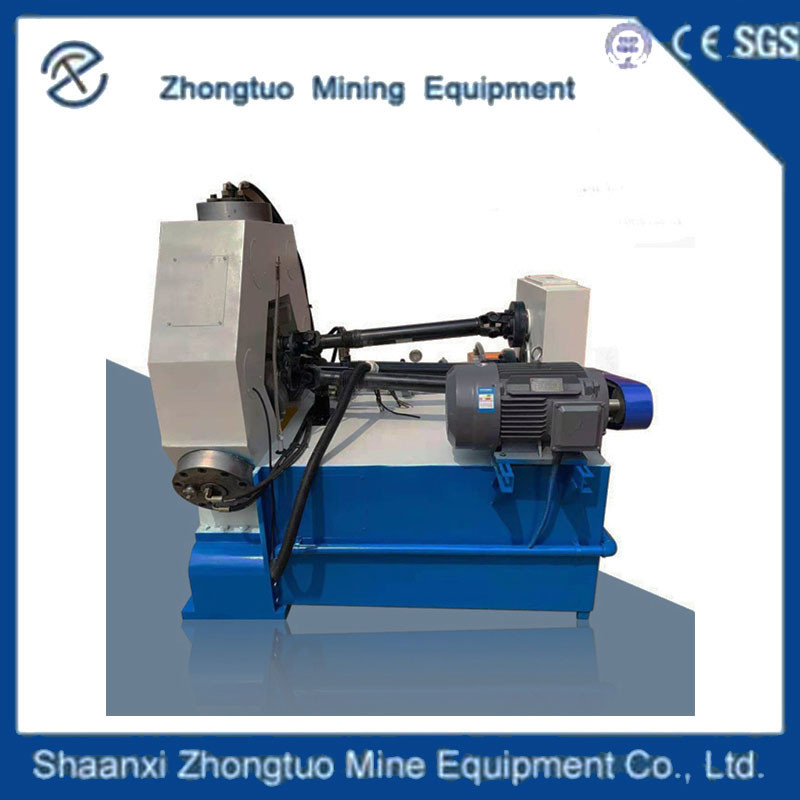

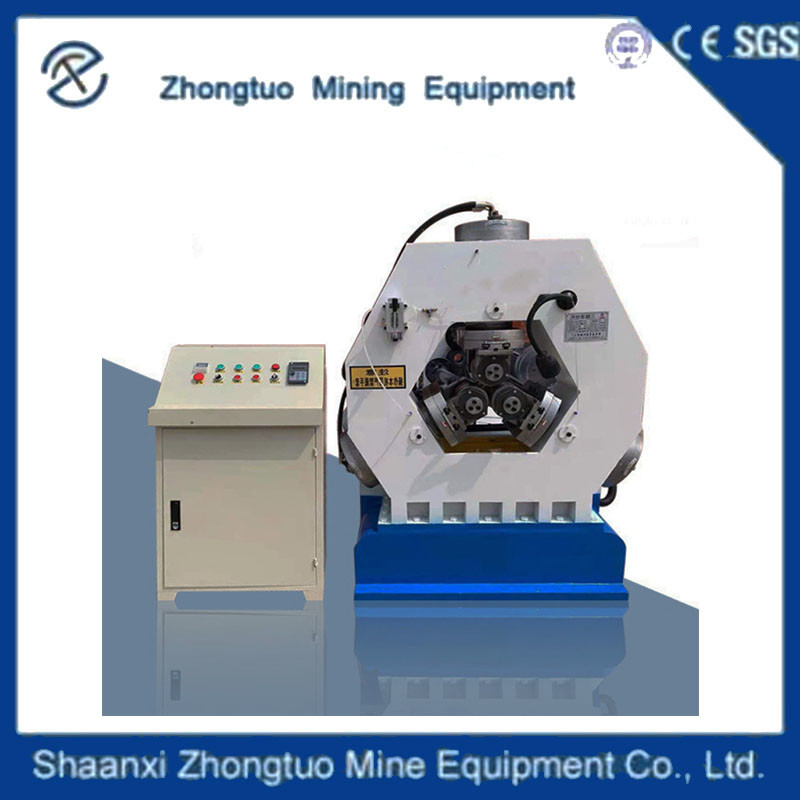

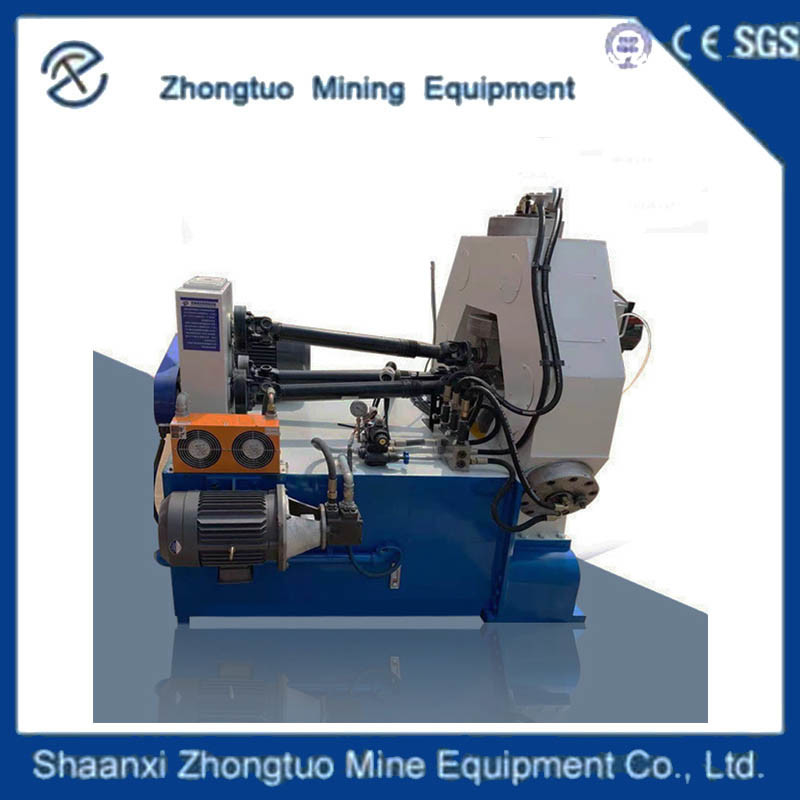

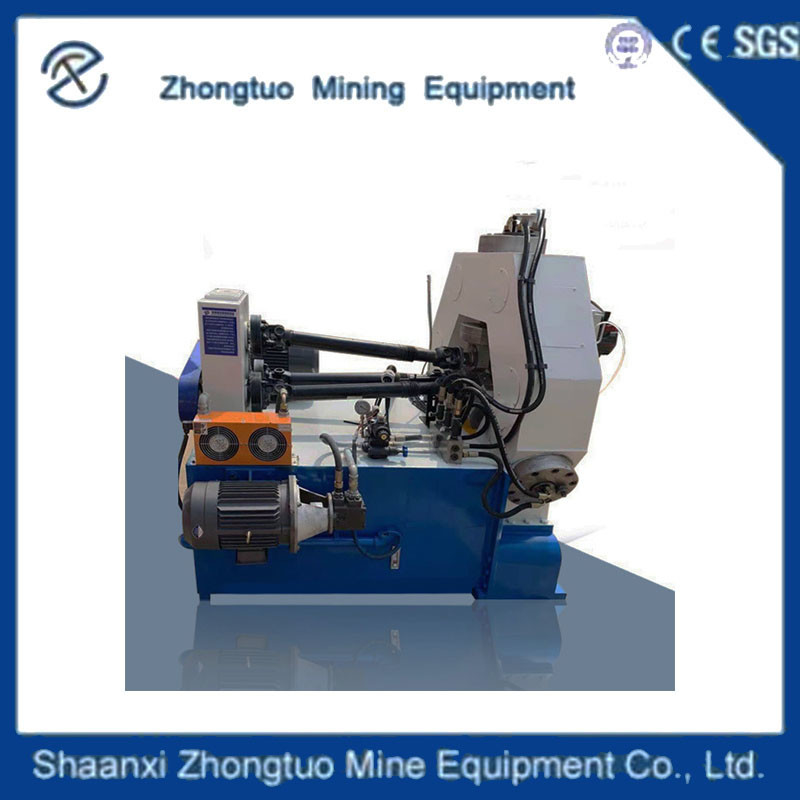

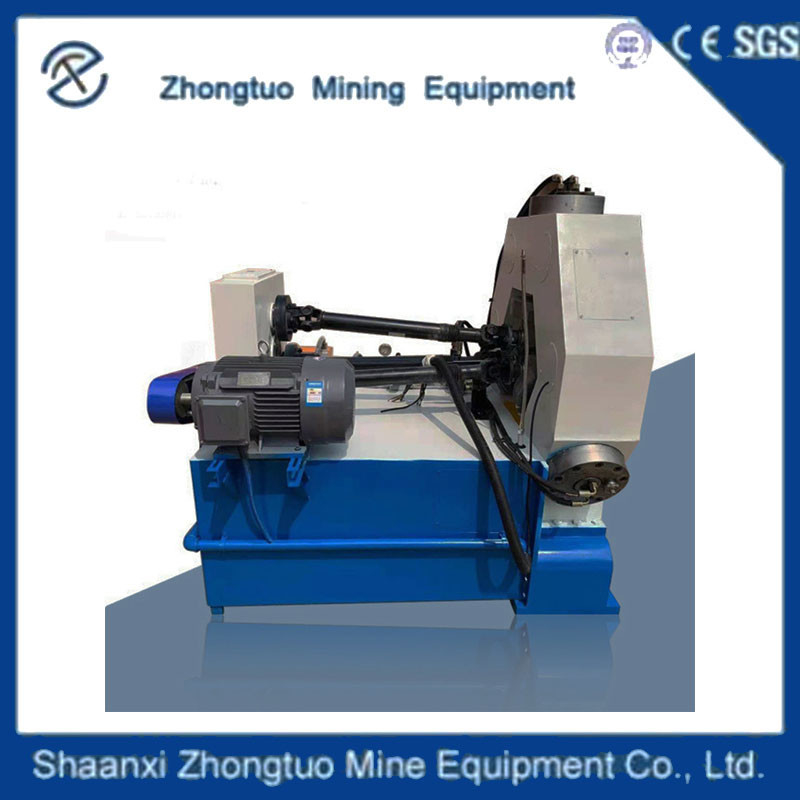

Professional Thread Rolling Machine For Cold Extrusion-Forming Rebar Bending Machine

The Hydraulic Three-Axis Thread Rolling Machine is a professional and rigorous multi-functional cold extrusion-forming machine tool. With various features including Thread Rolling Machine, Rebar Thread Rolling Machine, Rolling Machine, Threading Machine, nail making machine, nail making machine price, punching machine, forming machine, production line, self-drilling screw, cold heading machine, cnc machine, machine tool, metal bending machine, bending machine, pipe bending machine, and screw making machine, this machine can process the thread, straight grain, and oblique grain rolling of the workpiece in a cold state within its rolling pressure range. Additionally, it can perform straight teeth, helical teeth, and helical spline gears rolling, straightening, reducing, rolling, and various forming rolling. The machine is designed with a safe and reliable electric-hydraulic execution and control system, which allows each working cycle to be selected from three modes: manual, semi-automatic, and automatic. The Thread Rolling Machine has a casting structure, and three hydraulic cylinders are thoughtfully designed to ensure efficiency and precision.

Description:

The thread rolling machine is a multi-functional cold extrusion-forming machine tool. The thread rolling machine can process the thread, straight grain, and oblique grain rolling of the workpiece in a cold state within its rolling pressure range; straight teeth, helical teeth, and helical spline gears rolling; straightening, reducing, rolling and various forming rolling. The machine has a safe and reliable electric-hydraulic execution and control system, which allows each working cycle to be selected from three modes: manual, semi-automatic and automatic.

Features:

Thread Rolling Machine casting structure, three hydraulic cylinders are designed inside the fuselage, reasonable and strong, with large power, high precision thread processing, convenient adjustment, frequency conversion speed regulation, wide application range, can roll various threads, ordinary threads, T-shaped thread, net pattern, straight pattern, special-shaped thread, hollow anchor rod, hollow jacking, can also perform hydraulic processing such as forming and calendering on the workpiece.

The solution to the problem of no thread or messy thread

The direction of rotation of the rolling head is incorrect; the specification of the rolling head is inconsistent with the steel bar;

The order of the positioning sleeve is incorrect; whether the order of the rolling heads is installed correctly;

The roller and the positioning sleeve are damaged;

Wear & Refurbishment

The rolling wheels must be adjusted synchronously, that is, to adjust the coincidence of the indentations of the L and R wheels on the surface of the workpiece. If the synchronous adjustment is inaccurate, the workpiece will have chaotic teeth, chips, and out-of-tolerance conditions. The center height of the workpiece is consistent with the center height of the rolling wheel (allowing a lower 0.01-0.08mm). The commonly used adjustment methods are:

After the rolling wheel is worn out, the teeth can be ground off to reduce the number of teeth, and the parameters can be calculated again according to the above process, and the teeth can be re-cut to produce a refurbished rolling wheel, which can be refurbished multiple times within the allowable range of the center distance of the machine tool.

FAQ:
Q1: Are you a factory or trade company?
A1: We are a factory. And we have ourselves trading company.

Q2: What is the exact address of your factory?
A2: No.27, Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One-year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts for the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, and 3phase. The voltage can be customized according to your requirements.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long will it take to arrange production?
A7: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with a professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.

Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.


Why you choose us:

1. We are a real factory offering products and providing free technical advice.
2. Company in business for many years and served Over 50 countries' customers.
3. All machines with CE, ISO, and SGS certificates. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
