Electro-Hydraulic Execution And Control System: Straightening Reducing Forming Rolling

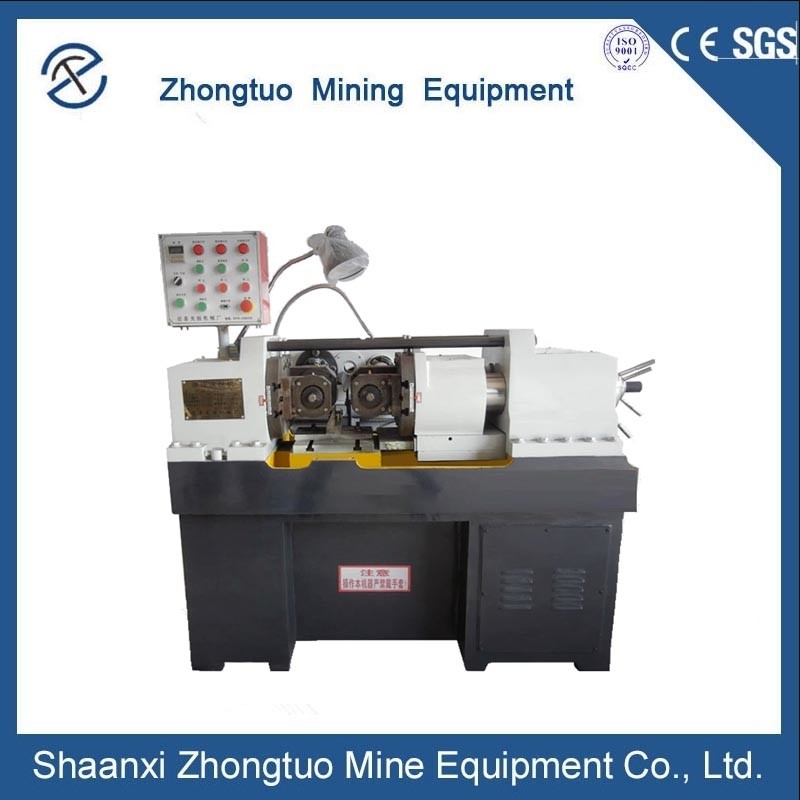

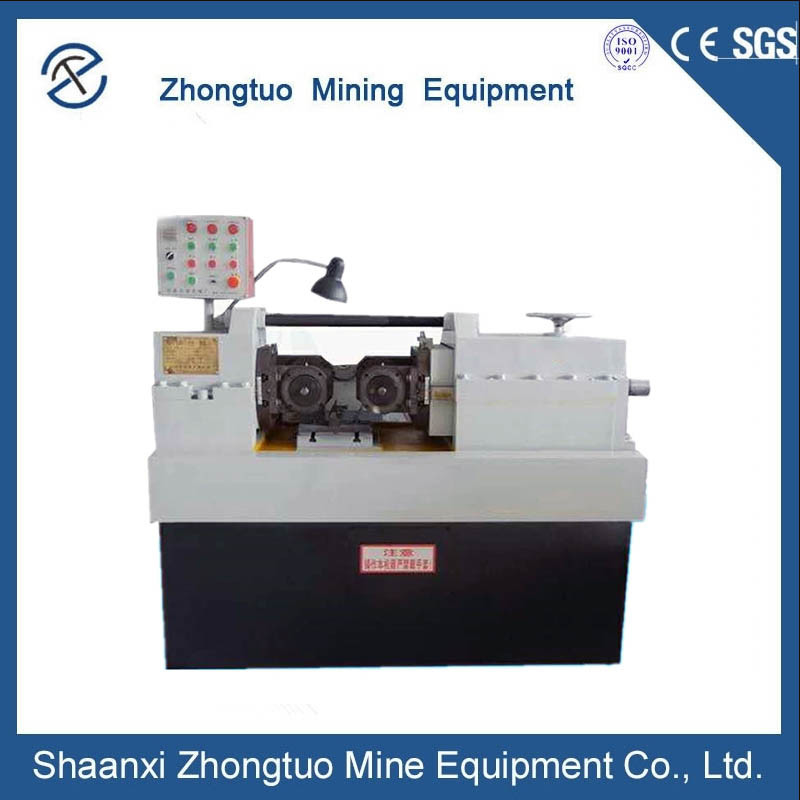

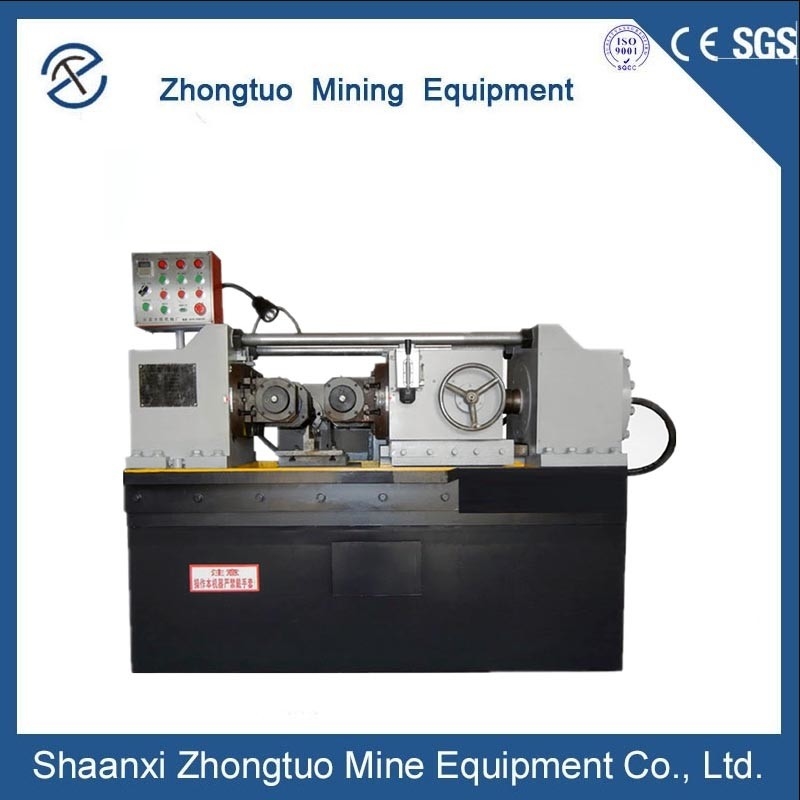

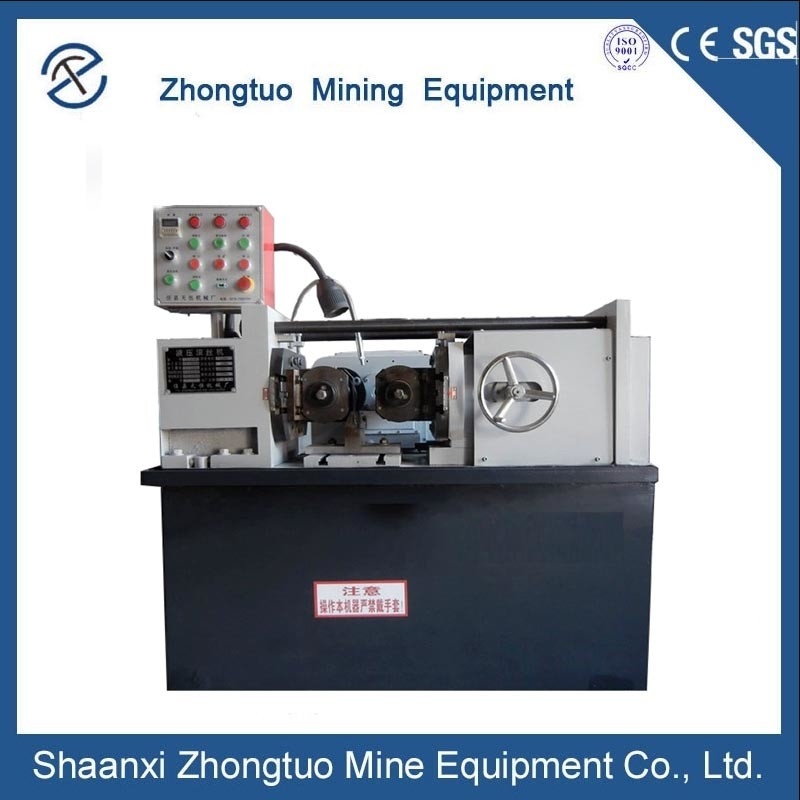

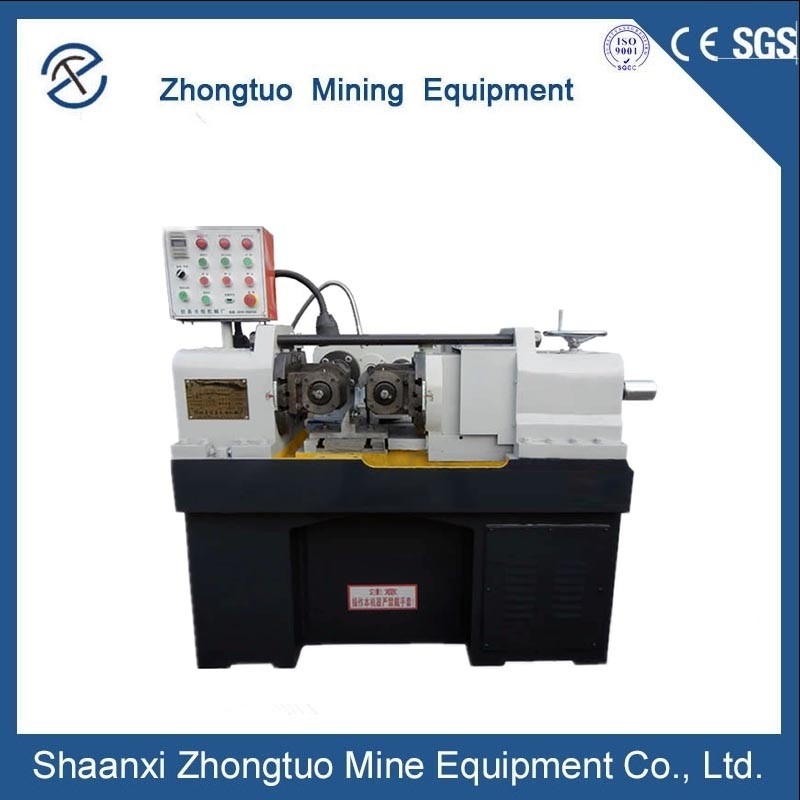

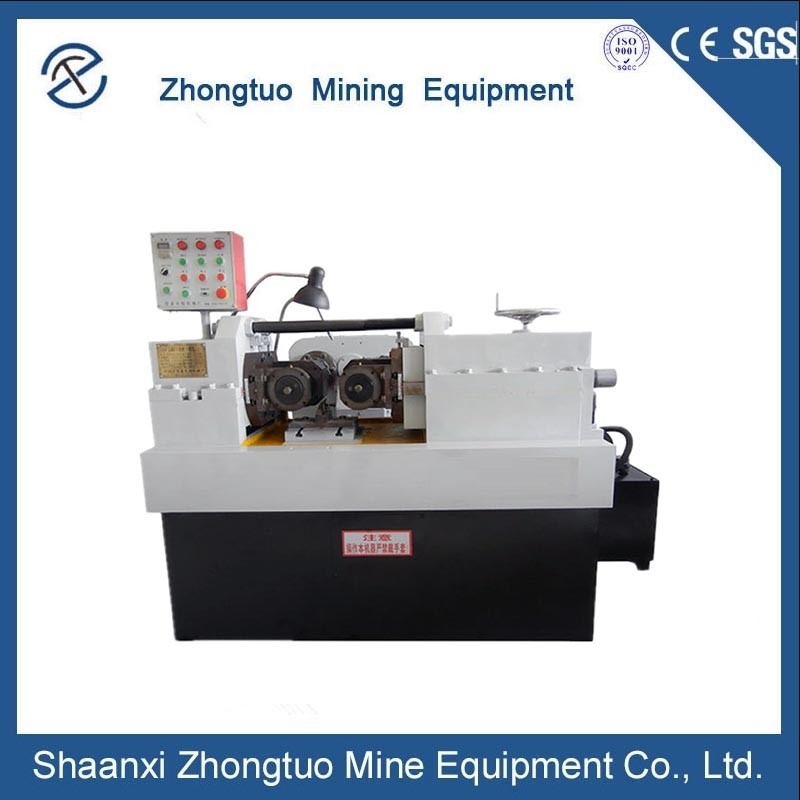

Introducing the Automatic Hydraulic Thread Rolling Machine Screw Knurling Machine Factory. This versatile cold extrusion machine tool is designed to roll threads, straight grains, and twills on workpieces in a cold state within its rolling pressure range. It is also capable of rolling spur, helical, and helical spline gears, as well as performing tasks such as straightening, reducing, and various forming rolling. Equipped with an electro-hydraulic execution and control system, this machine allows for manual, semi-automatic, and automatic working cycles to be selected. The wire rolling cold rolling process, a non-cutting processing method, effectively enhances the internal and surface quality of the workpiece. Moreover, the radial compressive stress generated during processing improves the fatigue strength and torsional strength of the workpiece, making it an ideal process for achieving high efficiency, energy-saving, and low consumption. The wire rolling machine comes in two variants: the two-axis wire rolling machine and the three-axis wire rolling machine. Choose the Automatic Hydraulic Thread Rolling Machine Screw Knurling Machine Factory for reliable and professional performance.

1. Two axis wire rolling machine has strong advantages in hardware construction, auto parts, transportation and power, standard parts production, etc;
2. In the pipe thread processing industry, the three-axis thread rolling machine has equal triangular support to ensure true roundness, concentricity and perpendicularity.
How to properly maintain the wire rolling machine during operation:
1. The operator can only operate after passing the examination and obtaining the operation certificate. The operator should be familiar with the performance and structure of the machine and abide by the safety and shift handover system.
2. Before work, oil shall be injected in strict accordance with the lubrication regulations, and the oil quantity shall be appropriate, the oil circuit shall be unblocked, the oil mark (window) shall be eye-catching, and the oil cup shall be clean.
3. Check whether the fasteners at all parts are loose, whether the control mechanism is flexible and reliable, and whether the safety protection device is in good condition.
4. Before operation, start the machine tool for idling for 5min - I omin, and start operation only after confirming that the lubrication, hydraulic, electrical system and transmission parts operate normally.
5. According to the process requirements of the machined parts, correctly select and install the thread rolling die, rolling die and straightening die, and correctly adjust the tooth position and end face of the thread rolling die and the taper of the thread of the machined parts. When machining large workpieces, try to shorten the span of the two fulcrum bearing seats of the fixed spindle and the movable spindle to improve the stiffness of the spindle; When cantilever rolling is used for processing small workpieces, the rolling pressure shall not exceed 58800n, and the width of wire rolling die shall not exceed 40mm
6. Always pay attention to the operation during work and keep the interlocking, limit, feeding and other mechanisms accurate and reliable. In case of any abnormality, timely check and handle it.

FAQ:
Q1: Are you a factory or trade company?
A1: We are a factory. And we have ourselves trading company.

Q2: What is the exact address of your factory?
A2: No.27, Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One-year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts for the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, and 3phase. The voltage can be customized according to your requirements.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long will it take to arrange production?
A7: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with a professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.

Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.


Why you choose us:

1. We are a real factory offering products and providing free technical advice.
2. Company in business for many years and served Over 50 countries' customers.
3. All machines with CE, ISO, and SGS certificates. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
