Multifunctional Portable Solar Panel Cleaning Machine Highly Intelligent

Multifunctional Portable Solar Panel Cleaning Machine Highly Intelligent

  • Highlight

    Intelligent Solar Panel Cleaning Machine 50m/min

    ,

    Pv Panel Cleaning Equipment

  • Night Operation
    Realizable
  • Control Mode
    Telecontrol
  • GFTV
    Realizable
  • Working Mode
    Dry Brush Working Mode
  • Clean Width
    1100 Mm
  • Travel Speed
    0-50 M/min
  • Place of Origin
    China
  • Brand Name
    ZT
  • Certification
    CE, ISO, SGS
  • Model Number
    ZTFBX-1705
  • Minimum Order Quantity
    1 set
  • Price
    negotiable
  • Delivery Time
    a week
  • Payment Terms
    T/T, L/C, Western Union, MoneyGram, D/P, D/A

Multifunctional Portable Solar Panel Cleaning Machine Highly Intelligent

Description of automatic solar panel cleaner

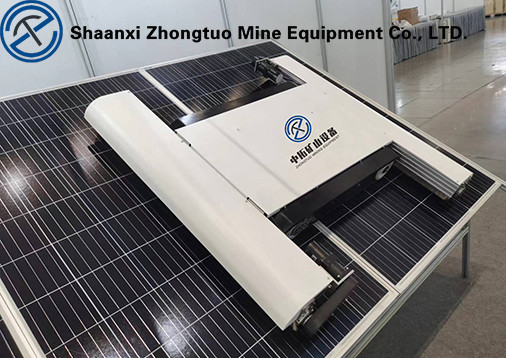

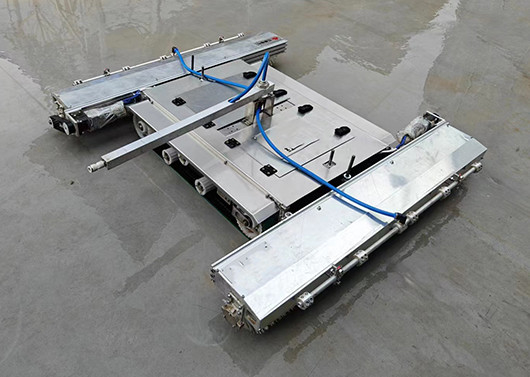

This low-cost automatic solar panel cleaner portable solar panel cleaning machine is an intelligent gadget that is primarily used for cleaning and dust removal from photovoltaic modules. It is appropriate for cleaning and maintaining many sorts of power plants.



Multifunctional Portable Solar Panel Cleaning Machine Highly Intelligent 0



Unique advantages



The following are the benefits of using a portable solar panel cleaning machine:
1. High cleaning effectiveness
2. superior intelligence
3. superior incline adsorption, climbing, and obstacle crossing abilities

4. no cleaning blind area
5. High level of waterproofing, dustproofing, and anti-fogging
6. Solar Panel Cleaning Machine is adaptable to a variety of settings and allows for customisation.



Product specification



Length * width * height: 1200X1200X180 mm

Weight: 36.5kg

Controller: Industrial PC (self-developed)

Power source: lithium battery

Battery capacity : 40AH.24VX2

Bettery duration : 6 hours

Control distance : <300m

Design life :  6 years

Control mode:  telecontrol



Working mode---Dry brush working mode



 Clean width : 1100 mm

Travel speed : 0-50 m/min

Cleaning efficiency:  1500-2000m/h

Component surface coverage : 120%

Maximum longitudinal slope : <20°

Maximum lateral slope :  <15°

Night operation: realizable

GFTV:  realizable

Spanning distance :  600 mm



Cleaning width
1100mm
Travel speed 0-50 m/min
Cleaning efficiency 1500-2000 ㎡/h
Maximum longitudinal slope ≤20°
Maximum cross slope ≤15°
Component surface coverage 120%





Certification



Multifunctional Portable Solar Panel Cleaning Machine Highly Intelligent 1

 FAQ



Q1: Are you a factory or a trade firm?
A1: We are a manufacturing facility.



Q2: Will you supply spare components for the machines?
A2: We will.


Q3: What are the terms of your machine's warranty?
A3: The machine comes with a one-year warranty and personalized technical support.
