Intelligenct Solar Panel Cleaning Machine All Specs Available Quality Guarantee
-
Length, Width And Height1200*700*240mm
-
BatteryLithium Battery
-
Battery Endurance6 Hours
-
Suitable For Temperature-10~50°C
-
Control ModeTotal Intelligence
-
Products ModelZTZD-20
-
Place of OriginChina
-
Brand NameZT
-
CertificationCE, ISO, SGS
-
Model NumberZTZD-20
-
Minimum Order Quantity1 set
-
Pricenegotiable
-
Delivery Time1 week
-
Payment TermsT/T, L/C, Western Union, MoneyGram, D/P, D/A
Intelligenct Solar Panel Cleaning Machine All Specs Available Quality Guarantee

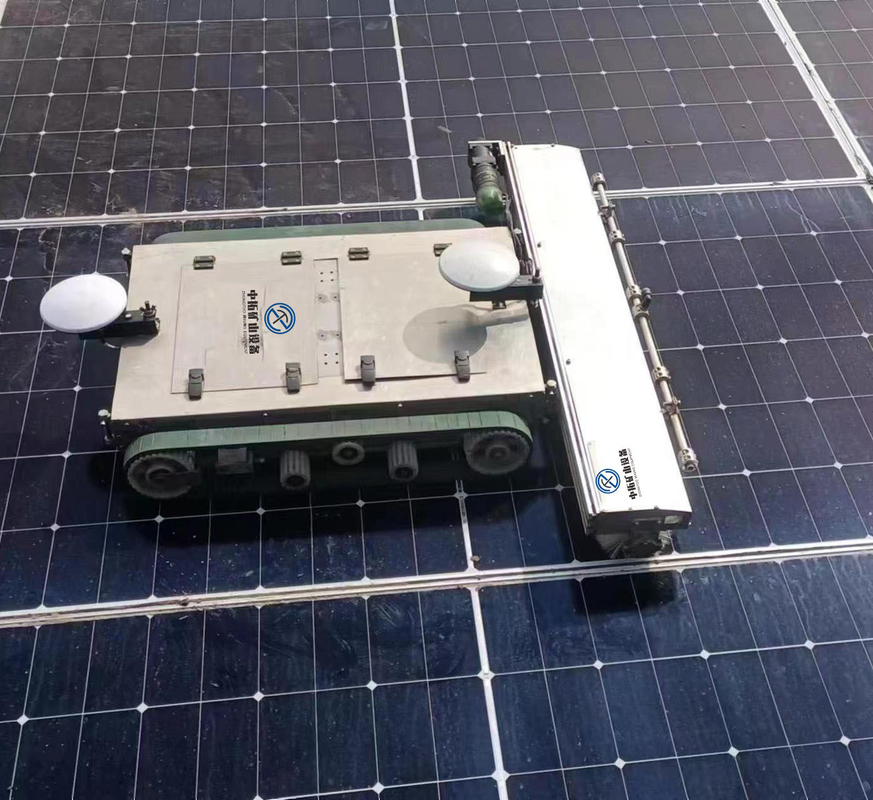

The Intelligent Solar Panel Cleaning Machine consists mostly of the cleaning machine body, data transmission system, positioning system, power system, battery, operation APP, and cloud platform monitoring system.
The robot uses a completely intelligent, fully automated, unattended cleaning mode for the cleaning and maintenance of photovoltaic modules in solar power plants.
The intelligent cleaning robot is capable of autonomous navigation, positioning, cleaning, and charging thanks to high-precision satellite positioning. Under some conditions, the cleaning can be performed without the need for manual intervention.
This smart solar panel cleanup kit includes the following features:
1. Full intelligence and automation.
2. Recognize unmanned
3. High cleaning efficiency.
4. The turning radius is quite tiny, and there is no cleaning dead angle.
5.The waterproof, dustproof, and anti-fog grade is high.
6.Support mobile phone APP/small program or PC web-side remote real-time view of the machine's running status.
7. It can be adjusted based on your specifications.
8.It can be switched to manual remote control mode under specific conditions.
9. Highly scalable.
| Products model: |
ZTZD-20 |
||
| Dimension |
1200*700*240mm |
||
| Power source: | lithium battery | ||
| Battery capacity: | 40AH | ||
| Protection class | IP65 | ||
| Battery endurance | 6 hours | ||
| Operating power | 200w | ||
| Design life : | 6 years | ||
| Controller Industrial | PC (self-developed) | ||
| Communication protocol | RS-485 | ||
| Applicable temperature | -10-50°C | ||
| Control platform | APP , Applet, Web | ||
| Type | automatic, remote control | ||
| Working mode | |||
|
Clean mode |
No water |
Cleaning speed : | 0-20 m/min (adjustable) |
| Applicable temperature: | -10-50°C |
Cleaning efficiency |
1200 m/h |
| Maximum longitudinal slope |
<20° |
Maximum lateral slope |
<15° |
| Component surface coverage |
120% |
Span distance |
≤600mm |
|
RTK horizontal positioning accuracy |
1.0cm + 1ppm (RMS) |
Anti-drop auxiliary |
support |
|
Visual system |
optional |
4G communication module |
support |
|
Night operation |
support | ||
Our products are sold all over the world, you can rest assured.
