Automatic Solar Panel Cleaning Robot
,Solar Panel Cleaning Robot
-
Product NameAutomatic Solar Panel Cleaning Robot
-
ModeDry Cleaning
-
Battery Capacity40AH
-
Operating Power200W
-
ControllersIndustrial PCs
-
Life5 Years
-
Place of OriginChina
-
Brand NameZT-30
-
CertificationCE ISO
-
Model NumberZTZD-30
-
Minimum Order Quantity1
-
Pricenegotiable
-
Packaging DetailsWooden Case
-
Delivery Time7-15 Work Days
-
Supply Ability1000pcs/month

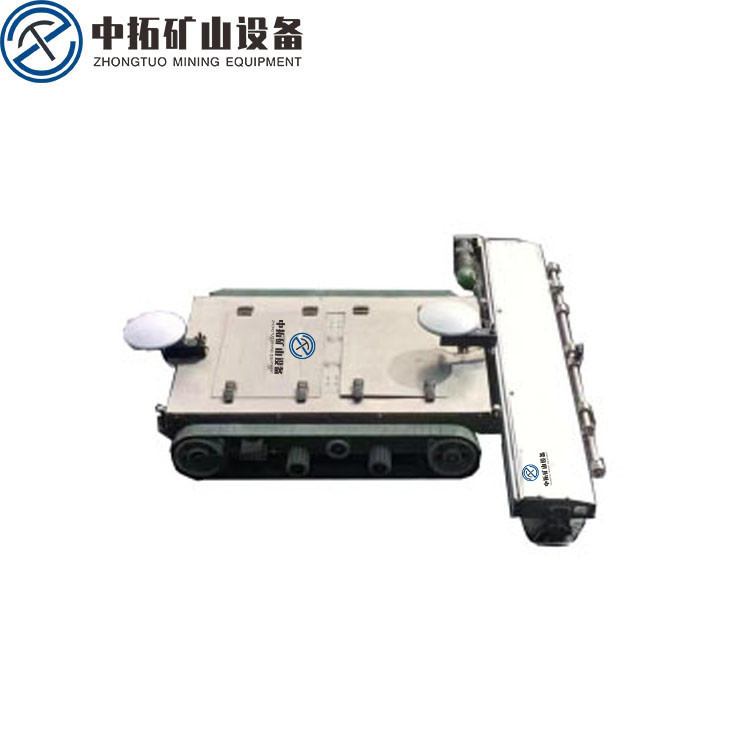

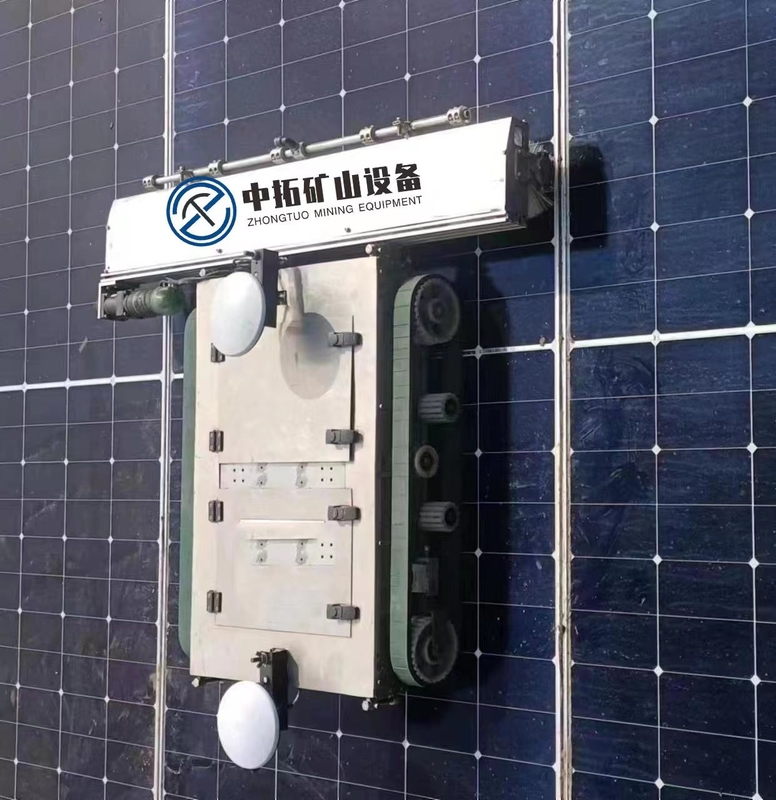

Automatic Solar Panel Cleaning Robot
Automatic Solar Panel Cleaning Machine
Automatic Solar Panel Cleaning Machine adopts a brilliant, fully automated, unattended cleaning mode and is applied to photovoltaic power stations in the light
Volt components of the cleaning operation and maintenance work, through high-precision satellite positioning intelligent cleaning components of the cleaning robot, with autonomous navigation, autonomous positioning, autonomous cleaning, and autonomous charging function. It can carry out cleaning tasks without manual intervention under non-special circumstances. Under special circumstances can be switched to manual remote control mode.
| Product Model | ZTZD-20 |
| Product Name | Automatic solar panel cleaning machine |
| Dimension | 1200*700*240 mm |
| Power Mode | lithium battery |
| Battery Capacity | 40AH |
| Operating Power | 200W |
| Battery Life | hours |
| Controllers | Industrial PCs (self-developed) |
| Control Mode | Fully Automatic, Remote Control |
| Control Platform | APP,(Small Program),Web |
| Communication Protocols | RS-485 |
| Protection Class | IP65 |
| Working temperature | -10~50℃ |
| Design Lifetime | 6 years |
| operating mode | |
| Cleaning Mode | Waterless, Washed |
| Cleaning Width | 1100 mm |
| Travel speed | 0-20 m/min (可调)(adjustable) |
| Cleaning Efficiency | 1200 ㎡/h |
| Maximum Longitudinal Slope | ≤20° |
| Maximum Lateral Slope | ≤15° |
| Module Surface Coverage | 120% |
| Travel Across Distance | ≤600 mm |
| RTK Horizontal Positioning Accuracy | 1.0 cm+ 1 ppm(RMS) |
| Anti-Drop Aid | Support |
| 4G Communication Module | Support |
| Night work | Support |
| Visualization system | optional |
