Fixed Solar Panel Cleaning Machine For Photovoltaic Panel

Fixed Solar Panel Cleaning Machine For Photovoltaic Panel

  • Product
    Photovoltaic Panel Cleaning Machine
  • Use
    Dry And Water
  • Color
    Customized
  • Lifetime
    3 Years
  • Place of Origin
    China
  • Brand Name
    ZT
  • Certification
    CE ISO
  • Model Number
    ZT3310
  • Minimum Order Quantity
    1PC
  • Price
    negotiable
  • Packaging Details
    Wooden Case
  • Delivery Time
    7-15 Work Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1000pcs/month

Fixed Solar Panel Cleaning Machine For Photovoltaic Panel

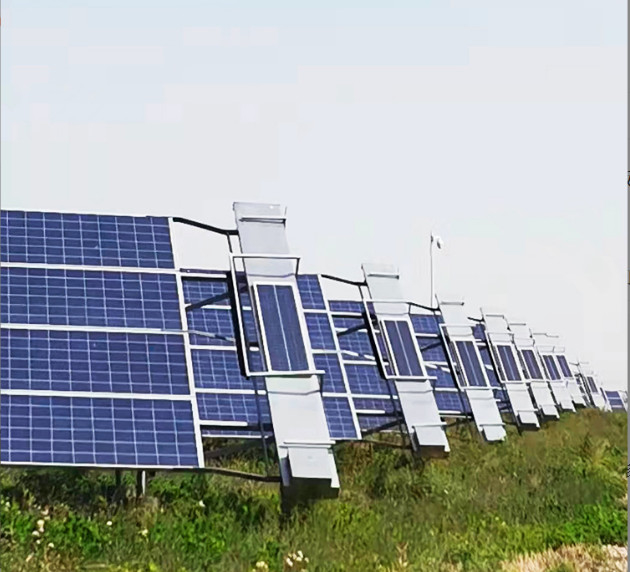

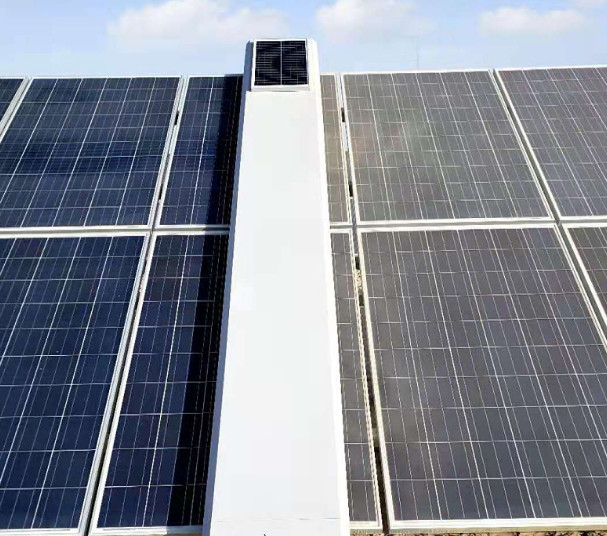

Photovoltaic Panel cleaning machine is an intelligent fixed cleaning robot , mainly aimed at cleaning components of large and medium-sized photovoltaic power stations. When installed, it can be dry-hanged on the photovoltaic module for automatic cleaning.

The robot has two control modes: automatic and manual. The manual mode supports remote control. It adopts waterless cleaning technology and relies on high-speed rotation of roller brushes to complete cleaning, which is suitable for cleaning most pollutants.

The robot can work alone or collaboratively over a 4G network. Managers can remotely command and control multiple robots through the software, and the robot's working conditions and fault conditions can also be transmitted back to managers through the wireless network to facilitate remote management and control.

Advantages:

  • High cleaning efficiency
  • High degree of intelligence
  • Comes with solar power generation, charging and storage devices, self-powered without external power supply, works around the clock
  • Strong adaptability, suitable for a variety of areas and terrains
  • Automatic/manual control modes, manual mode can be controlled remotely
  • Automatic cleaning time and frequency can be set independently according to region or season
  • Automatic speed stabilization, the forward speed of the equipment matches the speed of the brush motor to improve cleaning quality
  • waterproof , dustproof and fogproof levels
  • Equipment components are standardized, easy to transport, install and debug, and parts are easy to replace
Product Model ZTG-3310
Product Name Remote control crawler photovoltaic cleaning robot
Standard Width 400 mm
Standard Height 215 mm
Length customizable
Weight /
Power Mode Lithium batteries,rechargeable photovoltaic panels
Rechargeable photovoltaic panel power 50W/24V
Battery Power 24V/10A
Time Required to Fill the Battery 4-5 hours
Design Lifetime 3-5 years
Motor Power 90 W
Brush Hardness SHORE-A30
Controller Industrial PC (self-developed)
Network Access 4G
Design Lifetime 6 years
Dry-brush Working Mode
Cleaning Speed 14m/min
Maximum one-way Distance 600 m
Working Temperature -20 ~ 80℃
Boot Mode Automatically start on time
Ccontrol Mode Automatic, manual, remote control
Control Platform

APP

Remote service platform + mobile APP

Night Work Support
