High-End Photovoltaic Panels Cleaning Robot Automatic Dry /Water Waterless Washing Solar Panel Cleaning Robot For PV Pan
-
Highlight
4mm2 Cable Solar Photovoltaic Panel
,1500V Aluminum Alloy Solar Photovoltaic Panel
,Customized Mono Solar Panel
-
NameRemote Control Cleaning Robot
-
Max Control Distance150meter
-
FrameRoller Brush Length1100mm
-
Size1200*1000*350 Mm
-
Weight30kgs
-
Work Efficiency1.2MW/day
-
Place of OriginChina
-
Brand NameZT
-
CertificationCE, ISO, SGS
-
Minimum Order Quantity1PC
-
Pricenegotiable
-
Delivery Time1-2 weeks
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability10000pcs/month
High-End Photovoltaic Panels Cleaning Robot Automatic Dry /Water Waterless Washing Solar Panel Cleaning Robot For PV Pan

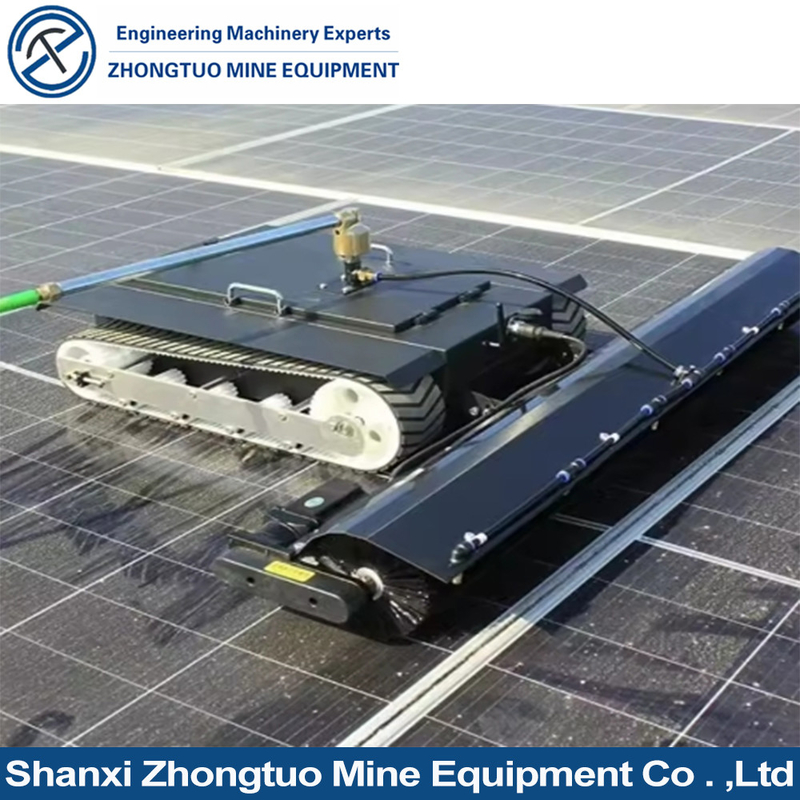

Photovoltaic cleaning robot

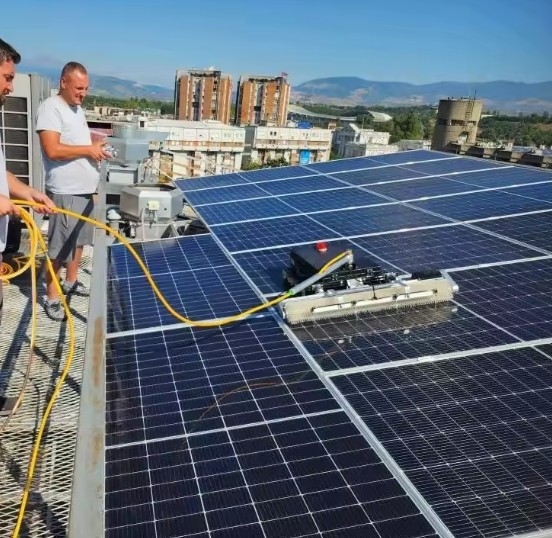

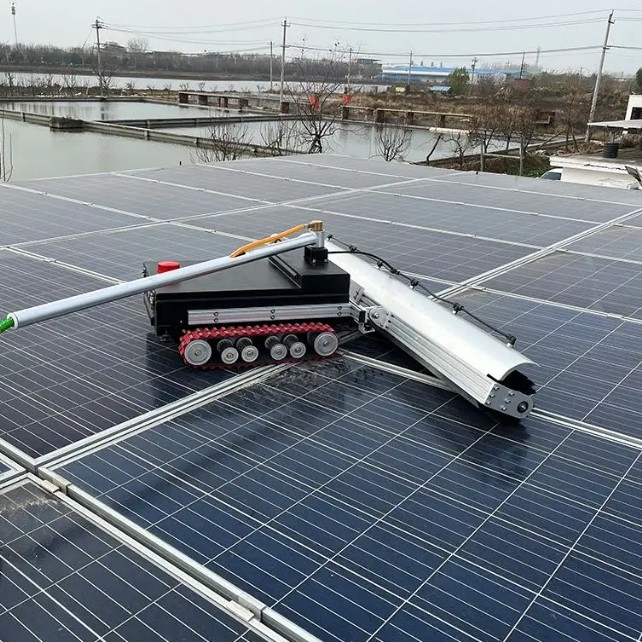

This product is an intelligent portable cleaning robot, mainly used for cleaning and dust removal of photovoltaic modules.
This product uses intelligent walking technology, which can automatically walk and adsorb on photovoltaic panels. Through
the design of waterless autonomous cleaning, it can clean foreign objects such as sand, dust, fallen leaves, etc. on the surface
of solar panels. It is suitable for various types of power stations such as large-scale ground power stations, fish-photovoltaic
complementary power stations and distributed rooftop power stations.

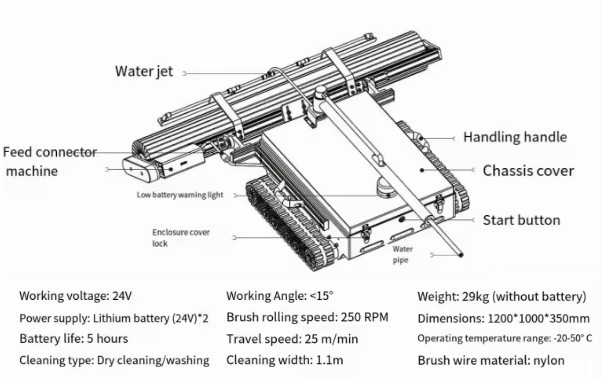

TECHNICAL PARAMETERS
| operating voltage | 24V |
| dle speed | 250 rpm |
| Travel speed | 22m/min |
| Cleaning width | 1100mm |
| endurance | 6 hours |
| Cleaning type | Washing/Dry cleaning |
| Working angle | Washing 15°/Dry cleaning 15° |
| power supply mode | Lithium battery (24V)*2 |
| Maximum water consumption | 20L/min |
| operating temperature range | -20-50℃ |
| Brush wire material | New nylon yarn |
| Equipment weight | 29kg(excluding battery) |
| outline dimension | 1200*1000*350mm |
150m remote control cleaning to avoid personnel risks.
Cleaning personnel standing on the photovoltaic panel or walking on the roof have certain safety risks! The remote control distance of sunnysmiler X7 robot is150 meters, which is easy and safer. Adopting imported RF remote control technology, the signal is more stable and the anti-interference ability is stronger than that of conventional communication technology;
Innovative patented technology of water curtain quick cleaning
After a large amount of dirt is stripped off the photovoltaic panel by the brush head, it may lead to secondary pollution; On Sunny Smiler X7, a multipoint water spraying device is arranged at the front end of the robot roller brush to sprayfan-shaped spray and connect it into sheets to form astrong water curtain to quickly drive sewage off the photovoltaic panel;
Certificate and factory display
FAQ
Q: Are you factory or trade company?
A: We are factory. And we have ourselves trading company.
Q: Warranty terms of your machine?
A: One year warranty for the machine and technical support according to your needs.
Q: What about the voltage of products? Can they be customized?
A: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.
Q: Do hydraulic jacks have calibration certificates?
A: Our hydraulic jacks are calibrated by Chinese authoritative institutions. You can communicate with us for specific details.
Q: What anchorage can I get?
A: If you need to anchor according to the drawings, please provide the drawings for our inspection before production. We have 12.7mm(0.5") and 15.24mm(0.6") types of wedges.
Q: What about the delivery time for mass production?
A: We generally arrange our products within 7 working days. The specific time depends on the order quantity
