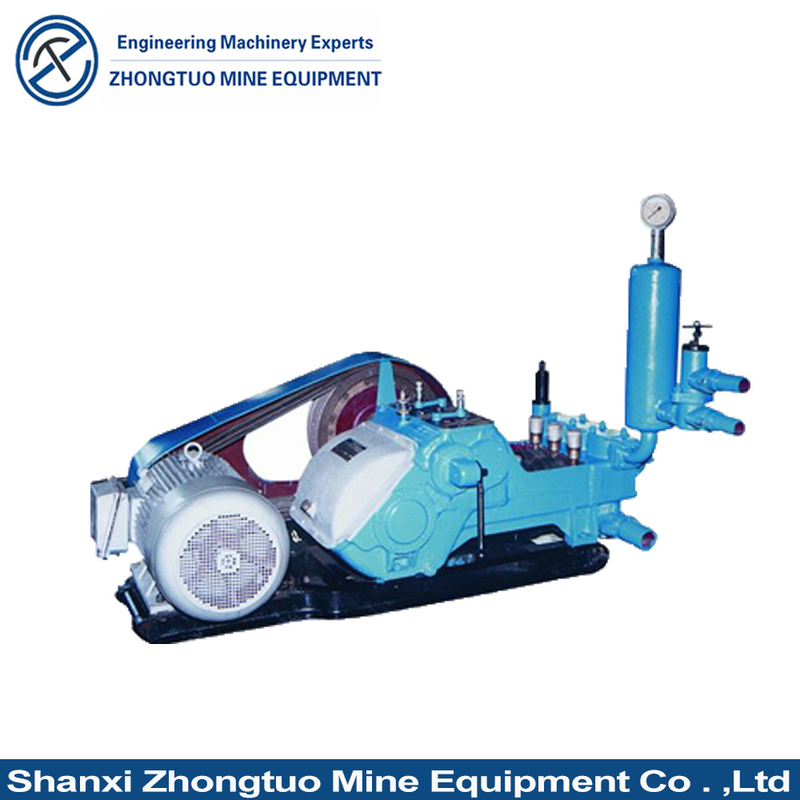

BW250 Well Drilling Piston Mud Pump Reciprocation Piston Drilling Mud Pump For Drilling Rig

BW250 Well Drilling Piston Mud Pump Reciprocation Piston Drilling Mud Pump For Drilling Rig

Products - Mud Pump Machine
  • Highlight

    Monocrystalline Solar Photovoltaic Panel

    ,

    Customized Monocrystalline Solar Module

    ,

    600W Solar Photovoltaic Panel

  • Suction Pipe Diameter
    76mm
  • Drive Power
    15kw
  • Dimensions
    1560*995*650
  • Weight
    650kg
  • Place of Origin
    CN
  • Brand Name
    ZT
  • Certification
    CE, ISO, SGS
  • Minimum Order Quantity
    1 set
  • Price
    negotiable
  • Delivery Time
    1 week
  • Payment Terms
    T/T, D/P, D/A, L/C, Western Union, MoneyGram

BW250 Well Drilling Piston Mud Pump Reciprocation Piston Drilling Mud Pump For Drilling Rig

  • BW250 Well Drilling Piston Mud Pump Reciprocation Piston Drilling Mud Pump For Drilling Rig
Get Price Contact Now

Main View Product Description:

1 three-cylinder reciprocating single-acting piston pump, can change eight different pressure and flow.

2 pumps consume less energy, flexible operation, high quality and durable.

3 good decomposition, easy to move.

4 business and market synchronization, management and the world

BW250 Well Drilling Piston Mud Pump Reciprocation Piston Drilling Mud Pump For Drilling Rig 0



Model
Max.Flow
Max.Pressure
Input Power
Suction Pipe Diameter
Discharge pipe Diameter
Weight
Size(mm)
BW80/3
80L/Min
3Mpa
5.5kw
38mm
25mm
205kg
1220*590*550
BW100/5
100L/Min
5Mpa
18.5kw
76mm
38mm
700kg
2250*750*1770
BW150
150L/Min
7Mpa
7.5kw
51mm
32mm
560kg
1840*795*995
BW160H
160L/Min
1.3Mpa
5.5kw
51mm
32mm
130kg
850*600*450
BW160/10
160L/Min
10Mpa
11kw
51mm
32mm
430kg
1450*745*970
BW200/4
200L/Min
4Mpa
15kw
76mm
51mm
300kg
1050*630*820
BW240/10
240L/Min
10Mpa
15kw
51mm
32mm
430kg
1450*745*970
BW250
250L/Min
7Mpa
15kw
76mm
51mm
650kg
1560*995*650
BW320
320L/Min
10Mpa
30kw
76mm
51mm
720kg
1905*1100*1200
BW350/13
350L/Min
13Mpa
45kw
76mm
51mm
760kg
1850*1050*1230
BW400/10
400L/Min
10Mpa
45kw
76mm
51mm
720kg
1905*1100*1200
BW450
450L/Min
2Mpa
18.5kw
89mm
51mm
540kg
1350*820*1040
BW450/5
450L/Min
5Mpa
22kw
76mm
51mm
520kg
1000*995*650
BW500/10
500L/Min
10Mpa
45kw
89mm
51mm
1200kg
1455*890*1230
BW600/10
600L/Min
10Mpa
55kw
89mm
51mm
1400kg
1500*890*1230
