YT29A Air Leg Rock Drill
,YT27 mining rock drill
,YT28 Small Mining Rock Drill
-
Automatic GradeSemiautomatic
-
PowerPneumatic
-
Air Consumption3m3/Min
-
Transport PackageWooden Box
-
HS Code8430390000
-
Hole Diameter<50mm
-
Wind Pressure0.4-0.6MPa
-
Drilling Depth5m
-
After-sales ServiceTracking Guidance & Service
-
WarrantyOne Year
-
Place of OriginChina
-
Brand NameZT
-
CertificationCE ISO
-
Model NumberYT28
-
Minimum Order Quantity1PC
-
PriceUSD500-1000/PC
-
Packaging DetailsWooden Case
-
Delivery Time7-15 Work Days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram

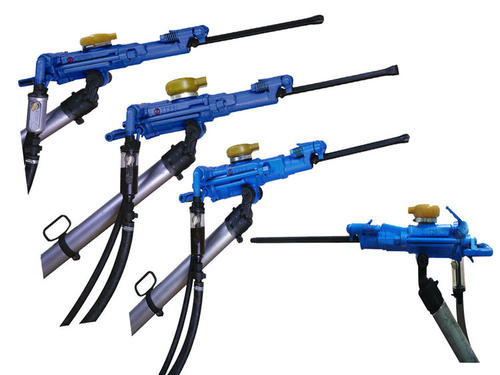

YT27 YT28 YT29 Air Leg Rock Drill Small Mining Rock Drill
Mine Rock Drill YT28 YT27 YT29A Type Air Leg Rock Drill Small Rock Drill Rock Splitting Drilling
Series of YT Rock Drill Description
YT Series Pusher Leg Rock Drill is a kind of high efficiency air leg rock drill machinery.
rock drill is mainly used for diging into mine laneway and blasting holes in all drilling works.
The pusher leg rock drill is indispensably importance machine tool in metallurgy, coal, railway, traffic,
water conservancy construction and national defence stone project.
Pneumatic Rock Drill is suitable for drilling and blasting under various of rocks at any direction angles.
Blast hole dia is 34-42mm, drill hole depth is 5 m This machine may match with Model FT160BD short air leg or Model FT160BC long air leg.
This airleg rock drill has transparent surface of FY200B oil reservoir, easy to observe the oil lever, adjust oil quantity,ensure the well lubricated.
Technical Parameters of YT Series Of Rock Drill
| Machine weight | 26 | kg |
| Cylinder diameter | 80 | mm |
| Piston stroke | 60 | mm |
| Working pressure | 0.5-0.6 | mpa |
| Impact frequency | ≥34 ≥37 | hz |
| Gas consumption | ≤55 ≤81 | l/min |
| Tracheal diameter | 25 | mm |
| Water pipe diameter | 13 | mm- |
| Drilling head diameter | 34-42 | mm |
| Drill tail size (hexagonal × length) | 22×108±1 | mm |
Application of YT Rock Drill
Advantages of YT Series Rock Drill :
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory
YT Series Rock Drill Characterstics
1. Moil point, wide chisel, narrow chisel: used for breaking;
2. Splinting rock tool: used for cleaving rocks;
3. Spade: used for excavating the frozen and hard earth;
4. Bended, horseshoe tamping spade: use for tamping roadbed of railway;
5. Square, round tamping plate: used for small area tamping.
Sericve of YT Series Rock Drill
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
Our products are sold all over the world, you can rest assured.
